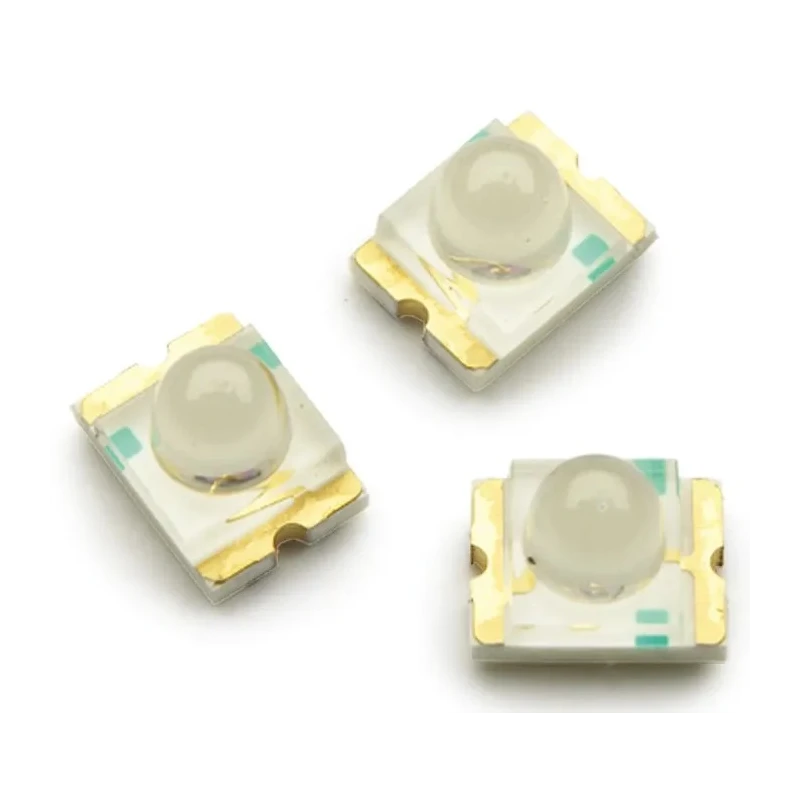

Broadcom 2 V Red LED 3224 Surface Mount 30mA Maximum Forward Current 650mcd Luminosity ASMT-BR20-AS000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Broadcom |
| Model | ASMT-BR20-AS000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ASMT |
| Maximum forward current | 30mA |
| Viewing angle | 15 ° |
| Package Type | 3224 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 2V |
| Number of Pins | 2 |
| LED Luminosity | 650 mcd |
| Lens Dimensions | 3.2 x 2.4 x 2.4 mm |
| Lens Shape | Dome |
| Broadcom3.2 V Blue LED 3224 (1209) SMD, ASMT-BB20-NS000Brand | Broadcom |
| Broadcom 2 V Green LED 3224 Surface ASMT ASMT-BG20-AS000Brand | Broadcom |
Key Features
- Operating voltage of 2 volts for efficient performance.
- Maximum forward current of 30mA ensures low power consumption.
- Compact 3224 package with surface mount type for circuit board integration.
- High brightness dome-shaped lens providing 650mcd luminosity.
- Viewing angle of 15 degrees for focused light emission.
- Dominant wavelength of 626nm delivers vivid red color.
- Compatible with automated placement equipment for manufacturing.
- Packaged in 8mm tape on 7-inch diameter reels for ease of use.
Product Description
Broadcom ASMT-BR20-AS000 is a high-quality 2 V Red LED in a compact 3224 surface mount package. Designed with a dome-shaped clear lens, it offers a luminous intensity of 650mcd and a narrow viewing angle of 15 degrees. This subminiature LED is ideal for applications requiring bright backlighting, status indication, and panel illumination in industrial, electronic, and commercial environments.
The device supports a maximum forward current of 30mA coupled with a low forward voltage of 2 volts, ensuring energy-efficient operation. It is designed to operate reliably within a wide temperature range of -40°C to +85°C, accommodating harsh environmental conditions.
Manufactured under RoHS compliance, the ASMT-BR20-AS000 comes packaged in 8mm tape on 7-inch diameter reels, facilitating automated placement and soldering via infrared and vapor phase reflow processes, optimizing production efficiency.
Its clear lens clarity, dome shape, and precise wavelength of 626nm produce a vibrant red illumination suitable for diverse industrial and electronic applications. The 2-pin design and surface mount configuration make it suitable for modern PCB assembly processes.
Operating voltage of 2 V for efficient performance. Maximum forward current of 30mA ensures low power consumption. Compact 3224 package with surface mount type for circuit board integration. High brightness dome-shaped lens providing 650mcd luminosity.
Viewing angle of 15 degrees for focused light emission. Dominant wavelength of 626nm delivers vivid red color. Compatible with automated placement equipment for manufacturing. Packaged in 8mm tape on 7-inch diameter reels for ease of use.
Operating temperature range from -40°C to +85°C supports diverse environments. RoHS compliant meeting environmental standards.
The Broadcom ASMT series LEDs are widely used in industrial controls, instrumentation, consumer electronics, and other applications requiring reliable and bright red LED indicators. This model's robust design and performance allow it to meet the demanding requirements of manufacturing and assembly lines, ensuring consistent quality and longevity.
Explore EnvMart's full range of LED components for comprehensive solutions in electronic design and manufacturing.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 30mA, ensuring low power consumption during operation.
This LED operates at a voltage of 2 volts, which contributes to its energy-efficient performance.
It has a luminosity of 650mcd, providing high brightness for various applications.
The dominant wavelength is 626nm, which produces a vivid red color.
The viewing angle of this model is 15 degrees, allowing for focused light emission.
It is packaged in 8mm tape on 7-inch diameter reels, facilitating automated placement and soldering.
This LED operates reliably within a temperature range of -40°C to +85°C, accommodating harsh environmental conditions.
The LED is in a compact 3224 surface mount package, suitable for circuit board integration.
This model features a 2-pin design, making it compatible with modern PCB assembly processes.
Yes, the ASMT-BR20-AS000 is RoHS compliant, meeting environmental standards for electronics.
This LED is ideal for applications requiring bright backlighting, status indication, and panel illumination in industrial and commercial environments.
Yes, it is compatible with automated placement equipment, optimizing production efficiency during manufacturing.
