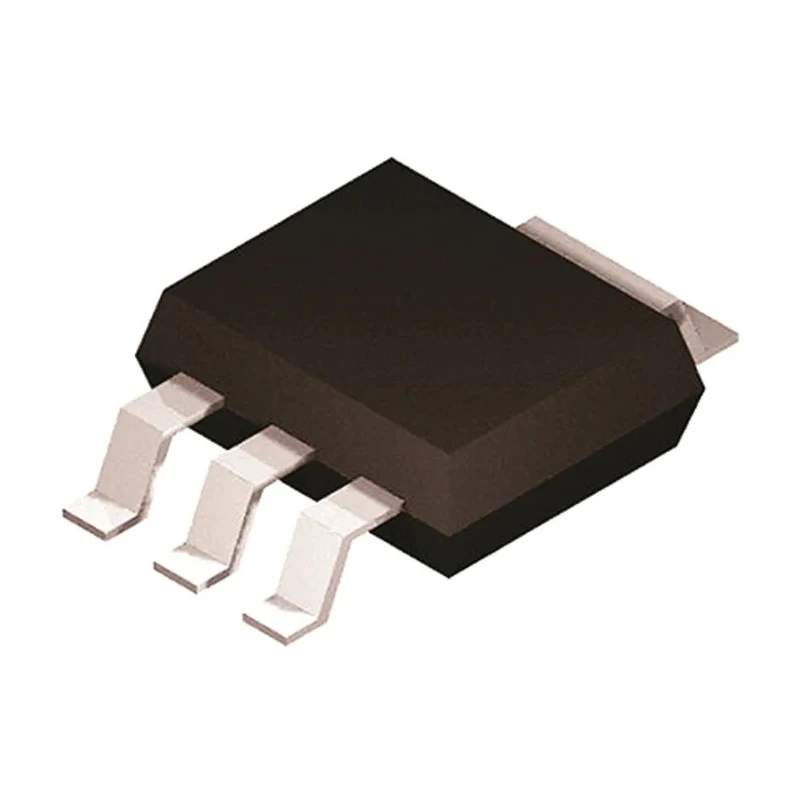

DiodesZetex Voltage Regulator 15V SOT-223 4-Pin AZ1117CH-1.8TRG1
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.7mm |
| Length | 6.7mm |
| Model | AZ1117CH-1.8TRG1 |
| Width | 3.7mm |
| Mount Type | Surface |
| Series | AZ1117C |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 15V |
| Quiescent Current | 6mA |
| Pin Count | 4 |
Key Features
- Operates with a low dropout voltage ensuring efficient regulation.
- Features a positive polarity with a quiescent current of 6mA.
- Compact dimensions measuring 6.7mm length, 3.7mm width and 1.7mm height.
- Maximum operating temperature of 125°C suited for various industrial environments.
- Supports maximum input voltage up to 15V for flexible application use.
- Designed as an LDO linear voltage regulator providing stable 1.8V output voltage.
- Complies with surface mount technology requirements for automated PCB assembly.
- Pin count includes 4 pins facilitating easy integration in circuits.
Product Description
The DiodesZetex AZ1117CH-1.8TRG1 is a high-performance low dropout (LDO) linear voltage regulator designed for precise voltage regulation applications requiring a 1.8V output. Housed in a compact SOT-223 4-pin surface-mount package, this device provides reliable voltage stabilization in a small form factor.
With a maximum operating temperature of 125°C and a maximum input voltage rating of 15V, the AZ1117CH-1.8TRG1 tolerates demanding industrial and electronic environments. The regulator operates with a low quiescent current of 6mA, enhancing energy efficiency in battery-powered and low-power systems.
The device is ideal for use in power management circuits within electronics, industrial controls, and embedded systems requiring stable voltage provision under varying load conditions. Its positive polarity and surface mount design simplify PCB integration and assembly, making it suitable for automated manufacturing processes.
Key mechanical dimensions include a length of 6.7mm, width of 3.7mm, and height of 1.7mm, enabling compact device layouts. The four-pin configuration allows for straightforward connectivity in power and signal pathways.
Operates with a low dropout voltage ensuring efficient regulation. Features a positive polarity with low quiescent current. Suitable for surface mounting on electronic circuit boards. Compact SOT-223 package dimensions enhance board space utilization.
Supports maximum input voltage of 15V and output voltage of 1.8V. Rated for maximum operating temperature of 125°C. Reliable power management for industrial, electronics, and embedded systems. Four-pin design for ease of circuit implementation.
This voltage regulator is well-suited for applications in power management ICs, electronics manufacturing, and industrial devices requiring stable low dropout voltage regulation. Explore more Voltage Regulators and power management solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 1.8V.
The maximum input voltage supported by this unit is 15V.
It has compact dimensions of 6.7mm in length, 3.7mm in width, and 1.7mm in height.
The quiescent current for this model is 6mA, which enhances energy efficiency.
This voltage regulator is rated for a maximum operating temperature of 125°C.
It is housed in a SOT-223 surface-mount package, suitable for automated PCB assembly.
This model features a 4-pin configuration for easy integration into circuits.
This voltage regulator has a positive polarity.
It is ideal for power management circuits in electronics, industrial controls, and embedded systems.
Yes, its low quiescent current makes it suitable for battery-powered and low-power systems.
The AZ1117CH-1.8TRG1 belongs to the AZ1117C series.
Yes, it complies with surface mount technology requirements for automated PCB assembly.
