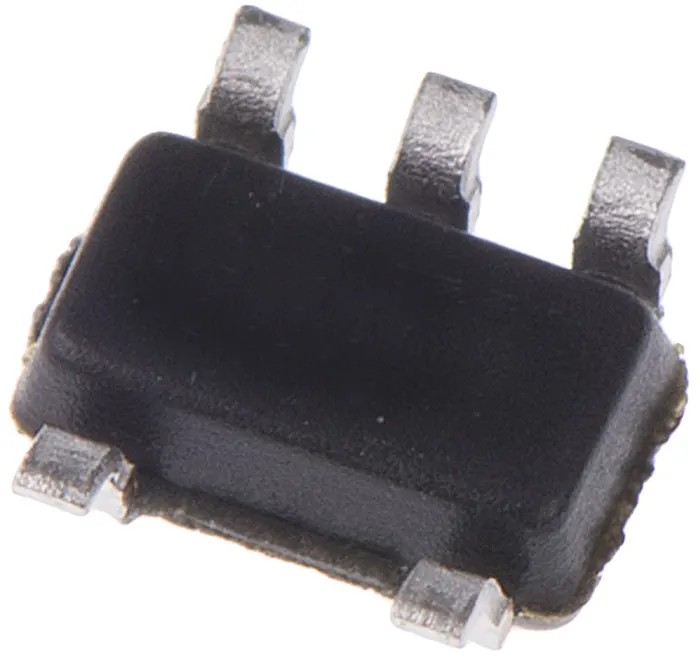

DiodesZetex Surface Mount 6V Low Dropout Voltage Regulator SOT-23 5-Pin AP2112K-3.3TRG1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators DiodesZetex, Voltage Regulator 6V SOT-23 5-Pin RS Stock No |
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | AP2112K-3.3TRG1 |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | AP2112 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Polarity | Positive |
| Maximum Input Voltage | 6V |
| Quiescent Current | 80μA |
| Minimum Input Voltage | 2.5V |
| Pin Count | 5 |
Key Features
- Operates with a maximum input voltage of 6V and minimum input voltage of 2.5V.
- Features a low quiescent current of only 80μA for energy-efficient operation.
- Compact dimensions of 3.1mm length, 1.7mm width, and 1.3mm height enable integration in space-constrained designs.
- Supports positive polarity with 5 pins arranged in SOT-23 format.
- Designed for operation up to a maximum temperature of 85°C.
- LDO linear regulator providing 3.3V output voltage for reliable power management.
- Surface mount configuration ensures easy PCB assembly and automated production efficiency.
- Ideal for use in industrial, automotive (non-automotive standard), consumer electronics, and power management applications.
Product Description
DiodesZetex AP2112K-3.3TRG1 is a high-performance low dropout (LDO) linear voltage regulator designed to provide a stable 3.3V output from input voltages ranging from 2.5V to 6V. Packaged in a compact SOT-23 5-pin surface mount device, it is optimized for power-sensitive applications requiring efficient and reliable voltage regulation.
This positive polarity regulator features a quiescent current of just 80μA, minimizing power consumption while maintaining high power supply rejection ratio (PSRR) for noise-sensitive electronics. Its small footprint with dimensions of 3.1mm length, 1.7mm width, and 1.3mm height allows for high-density PCB layouts. The device supports operation up to 85°C, suitable for a variety of environmental conditions excluding automotive standard requirements.
LDO voltage regulators like the AP2112K-3.3TRG1 provide fast transient response and low noise, crucial for maintaining stable voltage in sensitive industrial, laboratory, and consumer electronic devices. The surface mount SOT-23 package facilitates automated assembly and efficient production processes.
Maximum input voltage: 6V. Minimum input voltage: 2.5V. Quiescent current: 80μA. Package type: SOT-23, 5-pin surface mount. Dimensions: 3.1mm × 1.7mm × 1.3mm (L×W×H). Operating temperature max: 85°C. Output voltage: 3.3V.
Polarity: Positive.
Widely used in various electrical and electronic applications including power management systems, industrial equipment, and instrumentation. This voltage regulator ensures stable output voltage, energy efficiency, and durable performance across operating conditions.
Explore the comprehensive range of power management ICs and Voltage Regulators at EnvMart for your industrial and commercial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the AP2112K-3.3TRG1 is from 2.5V to a maximum of 6V.
This model provides a stable output voltage of 3.3V.
The dimensions of this voltage regulator are 3.1mm in length, 1.7mm in width, and 1.3mm in height.
The quiescent current of the AP2112K-3.3TRG1 is 80μA, which helps in minimizing power consumption.
This model can operate at a maximum temperature of 85°C.
The AP2112K-3.3TRG1 is packaged in a SOT-23, 5-pin surface mount configuration.
This model is designed for industrial, consumer electronics, and power management applications but is not suitable for automotive standard requirements.
This voltage regulator supports positive polarity.
The low dropout feature allows for efficient voltage regulation even when the input voltage is close to the output voltage, ensuring stable performance in power-sensitive applications.
This voltage regulator is suitable for applications in industrial equipment, consumer electronics, and power management systems.
The surface mount configuration facilitates easy PCB assembly and enhances automated production efficiency.
The AP2112K-3.3TRG1 belongs to the AP2112 series of voltage regulators.
