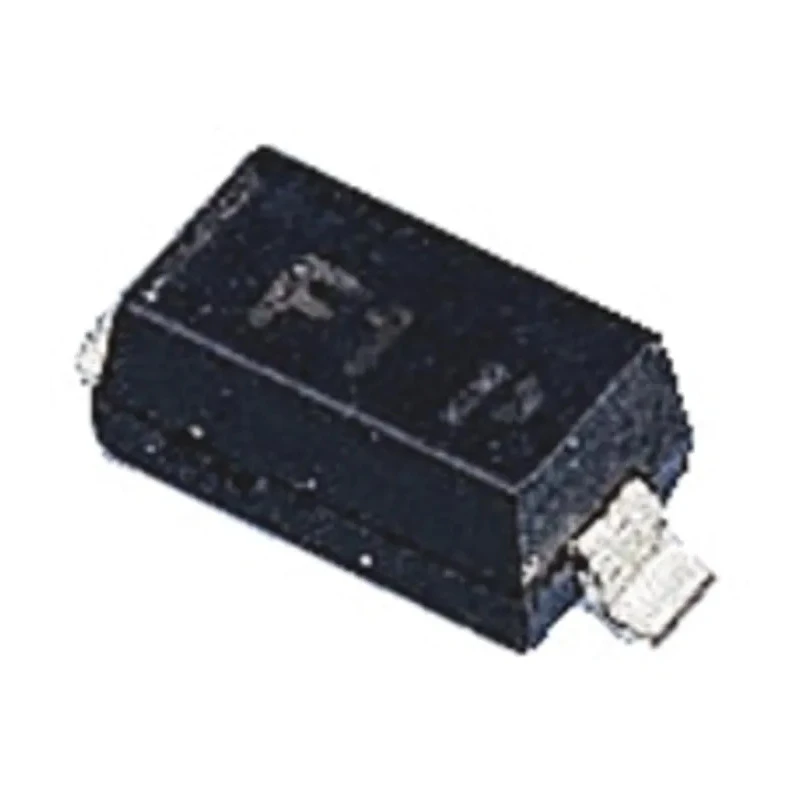

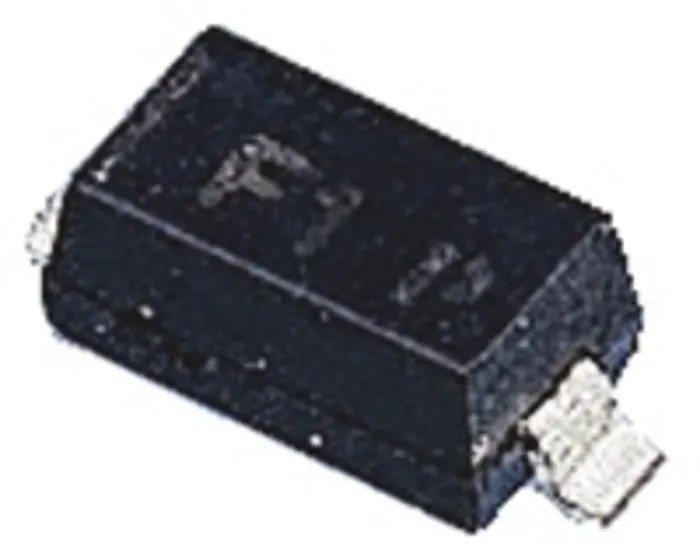

DiodesZetex 16 V Zener Diode 500 mW General Purpose Surface Mount 2-Pin SOD-123 MMSZ5246B-7-F

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 16 V Zener Diode 500 mW General Purpose Surface Mount 2-Pin SOD-123 MMSZ5246B-7-F

Name: DiodesZetex 16 V Zener Diode 500 mW General Purpose Surface Mount 2-Pin SOD-123 MMSZ5246B-7-F
Brand: DiodesZetex
SKU: 133561
Price: 0.03 USD
Availability: InStock



Category Zener Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.35mm
Length	2.85mm
Model	MMSZ5246B-7-F
Mount Type	Surface
Series	MMSZ5246B
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	7.8mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	16V
Zener Type	General Purpose
Maximum Zener Impedance	17Ω

Key Features

Nominal Zener voltage of 16 V with a tolerance of 5%.
Maximum power dissipation rating of 500 mW for low power applications.
Surface mount device in compact 2-pin SOD-123 package.
Test current of 7.8 mA optimizes performance.
Maximum Zener impedance of 17 ohms for voltage stability.
Operating temperature range from -65°C to 150°C.
RoHS compliant ensuring environmental safety.
Compact size with length 2.85 mm and height 1.35 mm.

Product Description

DiodesZetex MMSZ5246B-7-F is a reliable 16 V Zener Diode designed for voltage regulation and reference applications in industrial, automotive, and consumer electronic circuits. This single element diode features a general-purpose Zener type with a compact, surface mount SOD-123 package.

Its 500 mW power dissipation capacity makes it suitable for low power circuit protection and voltage clamping. The device offers a nominal Zener voltage of 16 V with ±5% tolerance and a maximum Zener impedance of 17 ohms, ensuring stable voltage regulation at the test current of 7.8 mA.

The MMSZ5246B series is compliant with RoHS standards, supporting environmentally friendly manufacturing processes. Moreover, the diode meets the AEC-Q101 automotive qualification, which certifies its robustness for automotive and harsh environment applications.

With an operating temperature range spanning from -65°C to 150°C, this device ensures reliable performance across extreme conditions. Its small form factor, with a length of 2.85 mm and height of 1.35 mm, allows compact PCB layouts, suitable for space-constrained assemblies.

Nominal 16 V voltage regulation with 5% tolerance. Single element Zener diode in a SOD-123 surface mount package. 500 mW maximum power dissipation for low power applications. Wide operating temperature range of -65°C to 150°C.

Complies with RoHS and automotive AEC-Q101 standards.

This DiodesZetex diode is ideal for applications including power supply voltage regulation, voltage reference, circuit protection, and automotive electronics. Its compact and sturdy design makes it a dependable component for industrial and laboratory semiconductor use cases.

Explore similar advanced Zener Diodes and semiconductor components in the Electronics & Electricals category to find the perfect fit for your project or production line at EnvMart.
