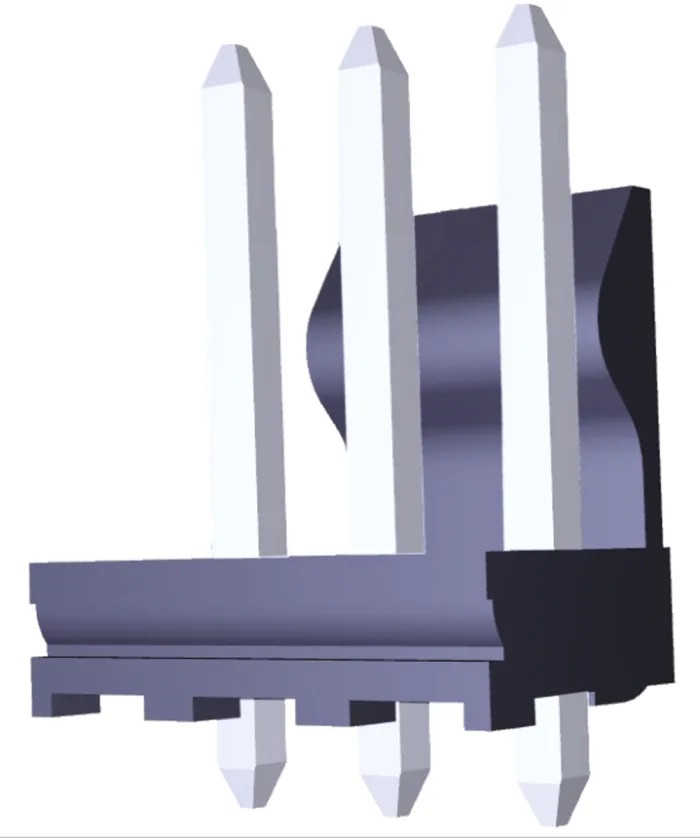

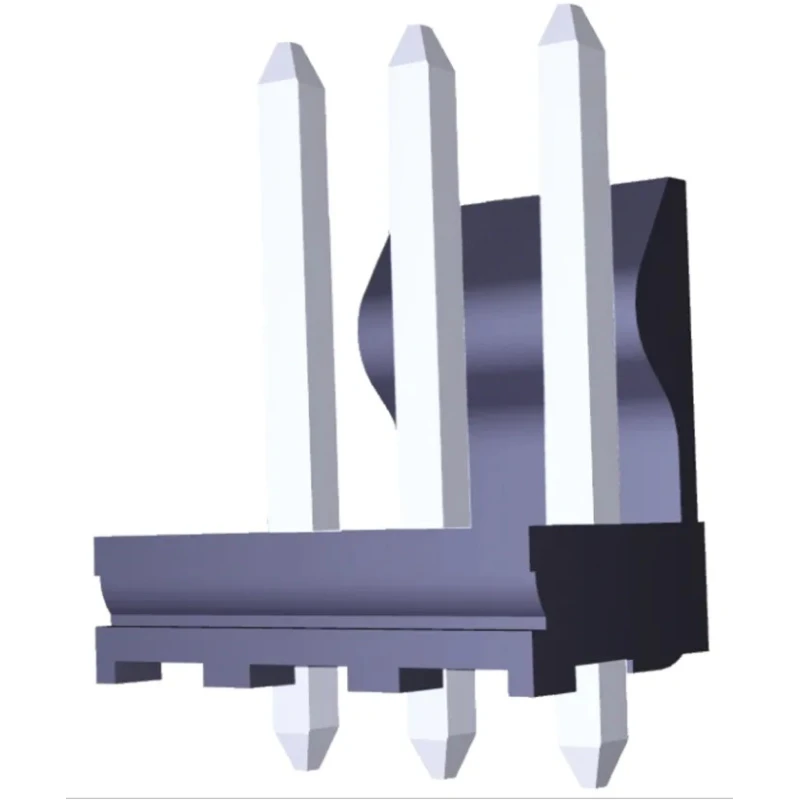

Molex KK 396 Series Straight Through Hole Pin Header 3 Contact 3.96 mm Pitch 1 Row Unshrouded 171813-3003

Molex 171813-3003 KK 396 Series Straight Through Hole Pin Header is a high-quality connector designed for robust electronic applications requiring dependable board-to-board and wire-to-board connections. Featuring a 3-contact design with a 3.96 mm pitch and unshrouded single-row arrangement, this pin header suits a variety of assembly and manufacturing processes.

The connector housing is constructed from high-temperature thermoplastic, providing enhanced mechanical strength and compatibility with reflow soldering up to 260 °C. The brass contacts coated with tin plating reduce the risk of tin whisker formation, ensuring long-term durability and performance.

Engineered for operation between -40°C and 80°C, it supports a current rating of 13A and voltage rating of 600V, suitable for a wide range of electronic circuitry. The through-hole mount type delivers a secure mechanical and electrical connection on printed circuit boards.

This pin header is compatible with Molex KK wire mount socket housings and is commonly used in commercial electronics, industrial equipment manufacturing, and electronic assembly lines. It offers reliable connectivity and resistance to thermal and mechanical stress.

The product originates from Mexico and maintains Molex's standards for electronic components quality and performance. This pin header features an unshrouded, straight orientation with 1 row. The high-temperature thermoplastic housing ensures durability under elevated soldering processes.

Contacts are made of brass and plated with tin to inhibit tin whiskering. Rated for 13A current and 600V voltage operation with a temperature range from -40°C to 80°C. Through hole mount type facilitates secure PCB assembly.

Compatible with KK wire mount socket housings for secure connectivity. Manufactured to withstand up to 260°C solder process temperatures. Ideal for electronic component integration in industrial, commercial, and manufacturing applications.
