JST PH Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 1 Row Shrouded B12B-PH-K-S LF SN

Free Delivery in India | Lowest Global Shipping Charges

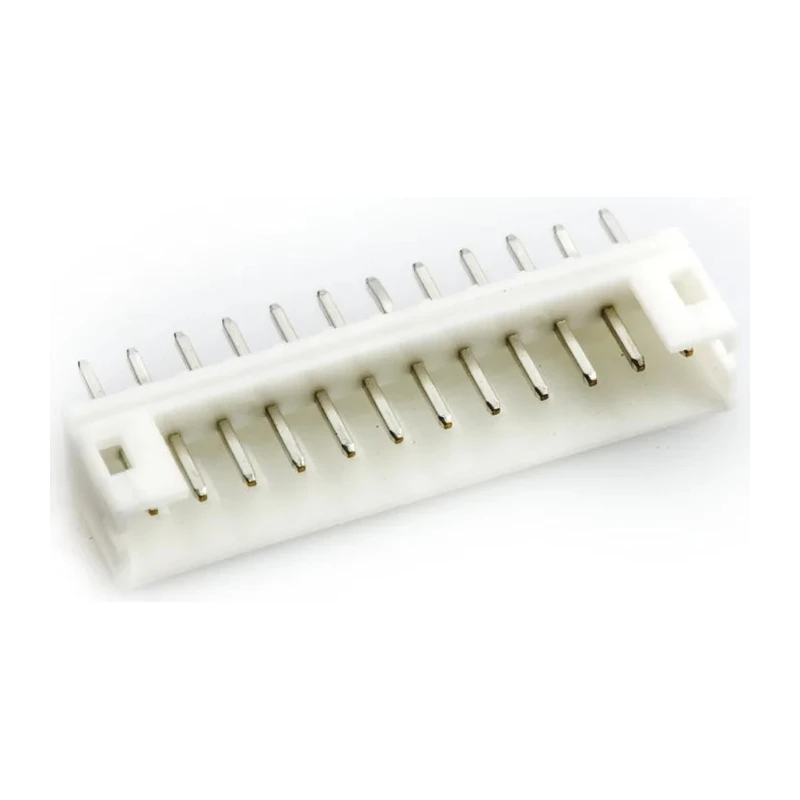

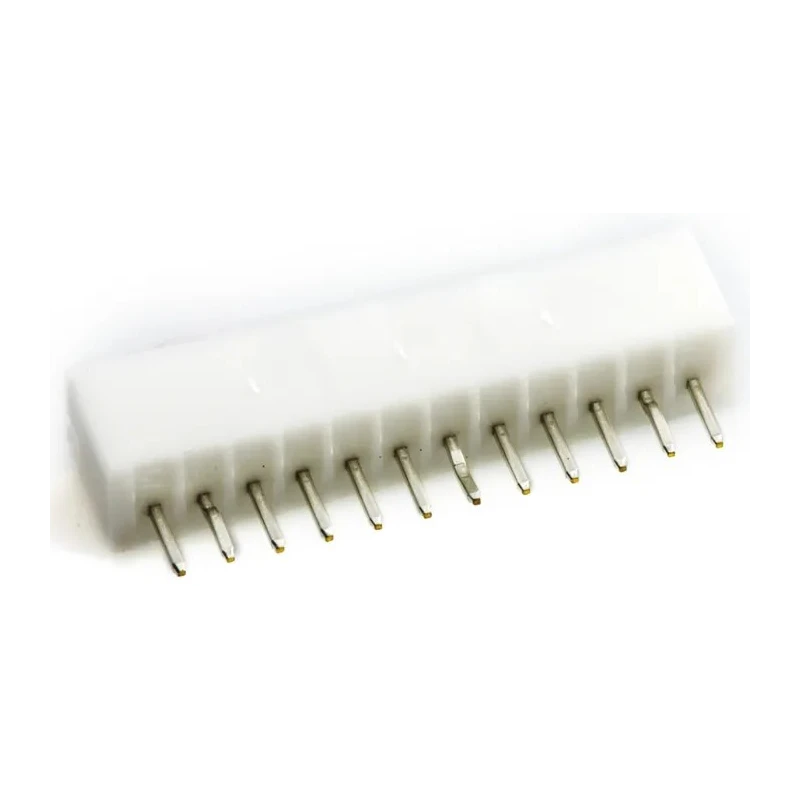

JST PH Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 1 Row Shrouded B12B-PH-K-S LF SN



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Straight
Current	2A
Model	B12B-PH-K-S LF SN
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.4mm

Key Features

Compact 2 mm pitch suitable for high-density PCB wiring.
12 male contacts for reliable wire-to-board connection.
Constructed with polyamide housing for durability.
Brass contacts plated with tin ensure corrosion resistance.
Through hole mounting type for stable PCB assembly.
Operating temperature range from -25°C to 85°C for versatile use.
Supports 100 V voltage and 2 A current rating.
Solder termination type for secure electrical connections.

Product Description

JST B12B-PH-K-S LF SN is a high-quality PH Series straight through hole PCB header designed for reliable and compact wire-to-board connections. It features 12 male contacts arranged in a single row with a 2 mm pitch, making it ideal for applications requiring high-density PCB layouts.

The header uses a durable polyamide housing that provides structural strength and withstands temperatures from -25°C up to 85°C. The brass contacts plated with tin offer excellent conductivity and corrosion resistance, ensuring long-term performance in various environmental conditions.

This PCB header is designed for through hole mounting, providing secure mechanical stability when soldered onto the PCB. The 3.4 mm tail pin length matches the JST PH series specifications, supporting easy mating with corresponding connectors.

Rated for 2 A current and 100 V voltage, it meets typical power requirements for electronic assemblies in industrial, manufacturing, and commercial electronics sectors. The shrouded design improves pin protection and alignment accuracy during assembly, reducing the risk of bent pins and electrical short circuits.

Compact 2 mm pitch suitable for high-density PCB wiring. 12 male contacts for reliable wire-to-board connection. Constructed with polyamide housing for durability. Brass contacts plated with tin ensure corrosion resistance.

Through hole mounting type for stable PCB assembly. Operating temperature range from -25°C to 85°C for versatile use. Supports 100 V voltage and 2 A current rating. Solder termination type for secure electrical connections.

3.4 mm tail pin and mating pin length compatible with JST PH series connectors. Shrouded connector system enhances pin protection and alignment.

This PCB Header is widely used in industry applications including electronics manufacturing, prototyping, and repair where reliable wire-to-board interconnections are essential. It is suitable for use in industrial control systems, communication equipment, and instrumentation.

Explore more PCB connectors and electronic components on EnvMart for all your assembly needs.
