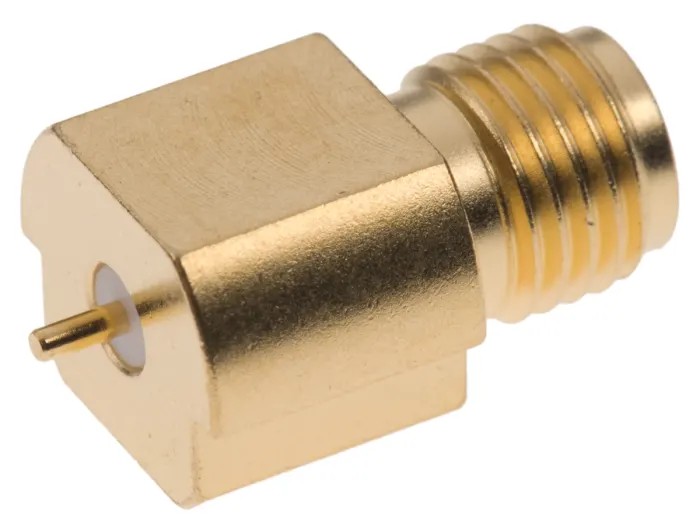

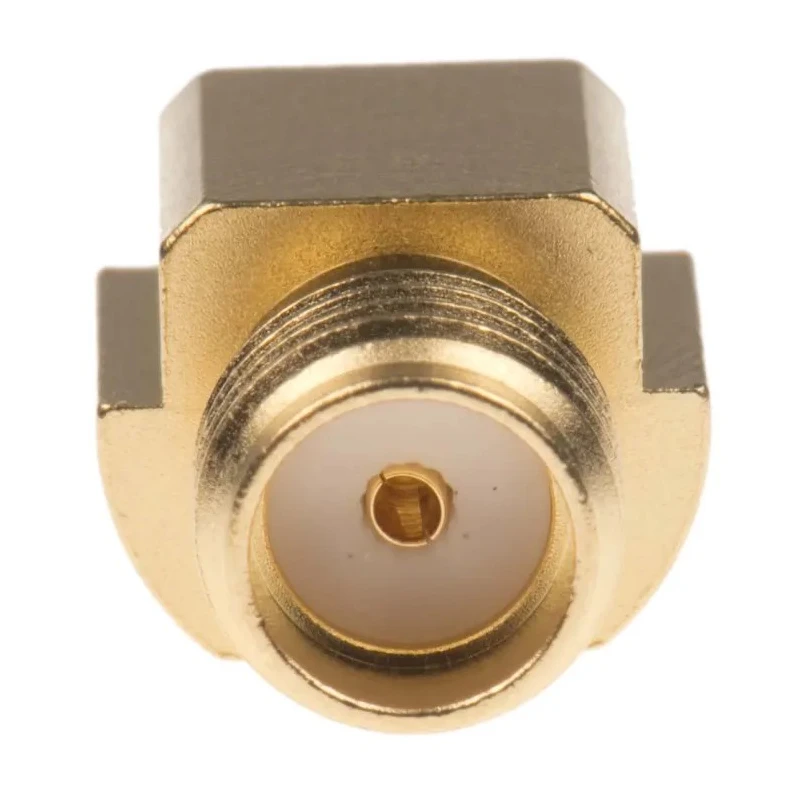

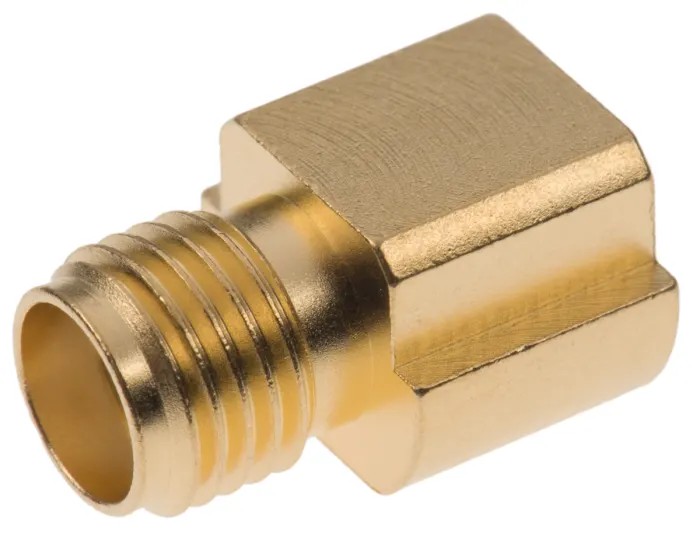

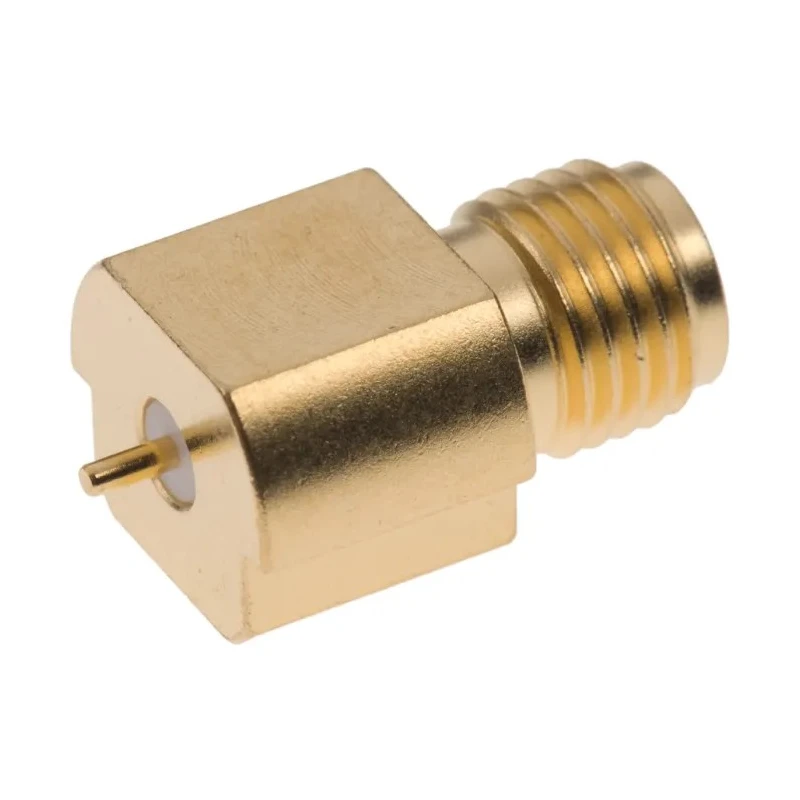

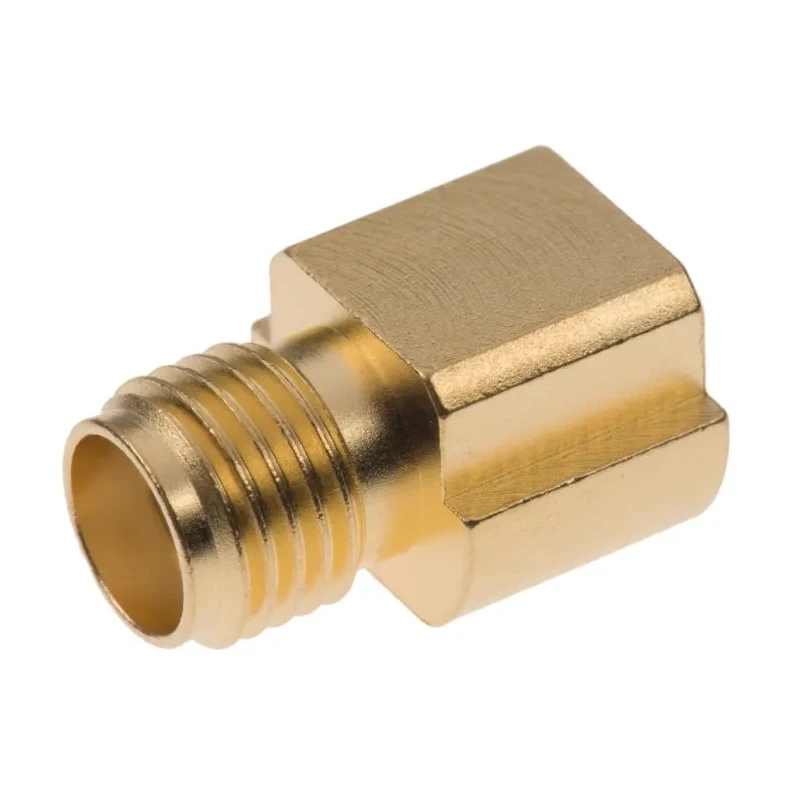

Rosenberger SMA Series PCB Coaxial Connector Female SMA 50 Ω Straight Body Solder 32K242-40ML5
Specifications
| Country of Origin | Hungary |
|---|---|
| Size | Standard |
| Brand | Rosenberger |
| Orientation | Straight |
| Model | 32K242-40ML5 |
| Mount Type | PCB |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- Designed for high-frequency applications up to 18 GHz.
- Features gold-plated body and contacts for superior conductivity and corrosion resistance.
- Beryllium copper contact material ensures durability and reliable signal transmission.
- Operates reliably in temperatures ranging from -65°C to 165°C.
- Standard size PCB mount with female connector gender and normal polarity.
- Provides secure solder termination and straight orientation for PCB mounting.
- Complies with IEC 60169-15, EN 122110, and MIL-STD-348A standards for SMA connectors.
- Manufactured in Hungary ensuring quality and precision.
Product Description
Rosenberger 32K242-40ML5 SMA Series PCB coaxial connector is designed for demanding industrial and electronic applications requiring reliable high-frequency connections. This female SMA PCB mount connector supports an impedance of 50 Ω and is intended for straight body mounting with solder termination, providing a secure and durable connection on the circuit board.
Engineered to operate at frequencies up to 18 GHz, it ensures minimal signal loss and excellent performance in RF signal transmission. The connector body and contacts are gold-plated to enhance conductivity and resist corrosion, while the contacts are made from beryllium copper for strength and longevity.
The operating temperature range from -65°C to 165°C allows use in a wide variety of environments, including industrial, manufacturing, communication, and laboratory settings. The connector follows critical standards IEC 60169-15, EN 122110, and MIL-STD-348A, ensuring consistent mating interfaces and compatibility with SMA standard connectors.
This product finds applications in RF systems, test equipment, communication devices, and other electronics requiring high performance coaxial connectors on PCBs. Designed for high-frequency applications up to 18 GHz. Gold-plated body and contact for optimum conductivity and corrosion resistance.
Beryllium copper contacts provide durability and reliable signal transmission. Temperature range -65°C to 165°C supports diverse operating conditions. Standard female SMA PCB mount connector, straight body with solder termination.
Meets IEC 60169-15, EN 122110, and MIL-STD-348A standards. Manufactured in Hungary ensuring high-quality standards. Discover a broad selection of industrial and electronic components including Coaxial Connectors in EnvMart's comprehensive catalog for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 18 GHz, making it suitable for high-frequency applications.
The connector supports an impedance of 50 Ω, which is standard for SMA connectors.
It features a solder termination type, providing a secure connection on the PCB.
The contacts are made from beryllium copper, which ensures durability and reliable signal transmission.
It operates reliably in temperatures ranging from -65°C to 165°C, accommodating various environmental conditions.
It complies with IEC 60169-15, EN 122110, and MIL-STD-348A standards for SMA connectors, ensuring compatibility and performance.
This model has a straight body orientation, designed for PCB mounting.
It is manufactured in Hungary, ensuring quality and precision in production.
Both the body and contacts are gold-plated, enhancing conductivity and corrosion resistance.
This connector has a female gender, suitable for mating with male SMA connectors.
It is suitable for RF systems, test equipment, communication devices, and other electronics requiring high-performance coaxial connections on PCBs.
It is classified as a standard size PCB mount connector, designed for compatibility with typical PCB layouts.
