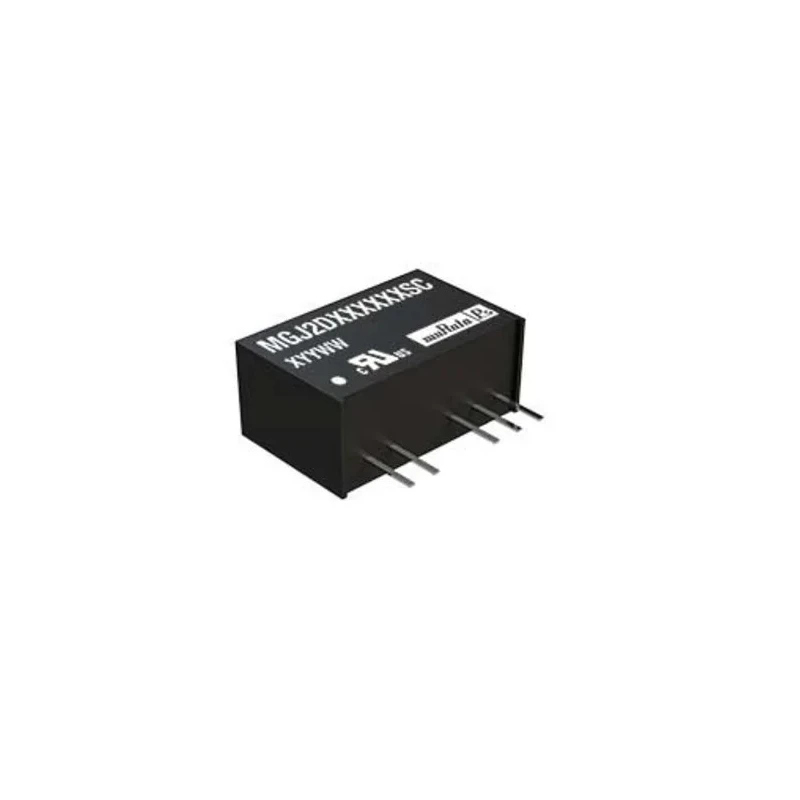

Murata Power Solutions 2W Dual Output Isolated DC/DC Converter, 5V DC/40mA, 20V DC/80mA, 16.5V DC Max Input, Through MGJ2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ2 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 81% |
| Length | 19.65mm |
| Model | MGJ2 |
| Depth | 12.65mm |
| Gross Weight | 4.3g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | MGJ2 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 16.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 40mA |
| Isolation Voltage | 5.2kV dc |
| Output Current 2 | 80mA |
| Output Voltage 2 | 20V dc |
Key Features
- Operates with input voltages from 13.5V to 16.5V DC for flexible power sources.
- Provides dual isolated outputs with voltages of 5V DC at 40mA and 20V DC at 80mA.
- Maximum output power rated at 2 watts ensuring efficient power delivery.
- Constructed in a through-hole DIP package with 7 pins for easy PCB integration.
- High isolation voltage of 5.2kV DC supports safety and noise immunity.
- Compact dimensions of 19.65mm length, 19.5mm width, and 12.65mm depth.
- Ultra-low ripple and noise at 50mV peak-to-peak for sensitive circuit applications.
- Efficiency rated at 81%, optimizing energy consumption during operation.
Product Description
Murata Power Solutions MGJ2 series DC/DC converter is a high-performance, dual output isolated power supply module designed for industrial applications including motor drives and inverter circuits.
This converter provides dual output voltages of 5V DC at 40mA and 20V DC at 80mA, accommodating asymmetric drive requirements common in IGBT and MOSFET gate drive circuits. The device operates with input voltages ranging from 13.5V to 16.5V DC, delivering up to 2 watts of output power.
The compact through-hole DIP package features 7 pins and small footprint of only 1.96 cm², enabling efficient PCB space utilization. Its isolation voltage of 5.2kV DC and ultra-low coupling capacitance ensure excellent noise immunity and safety compliance for critical industrial electronics.
Designed for operation in extreme environments, this converter supports a temperature range from -40°C up to a maximum 100°C, maintaining reliable performance under harsh operating conditions. Its efficiency is rated at 81%, providing optimal power conversion efficiency to minimize energy loss.
The MGJ2 series complies with RoHS standards, ensuring environmentally responsible manufacturing. Typical applications include high side and low side gate drives in bridge circuits for IGBTs and MOSFETs, power management in motor drives, inverters, and other industrial power conversion systems.
Operates with input voltages between 13.5V and 16.5V DC. Delivers dual isolated outputs: 5V DC at 40mA and 20V DC at 80mA. Provides 2W maximum output power for compact power solutions. Supplied in a small DIP through-hole package with 7 pins.
High isolation voltage of 5.2kV DC supports robust electrical isolation. Compact size with dimensions 19.65mm x 19.5mm x 12.65mm. Low ripple and noise (50mV peak-to-peak) ensures clean outputs. Efficient operation with 81% efficiency rating.
Wide operating temperature range of -40°C to +100°C for industrial use. RoHS compliant for environmental safety.
This Murata MGJ2 DC/DC converter delivers robust, efficient power conversion for demanding industrial applications. Explore the full range of electronic components and DC/DC Converters available in EnvMart’s catalog to find compatible power solutions for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with input voltages ranging from 13.5V to 16.5V DC.
This model provides dual isolated outputs: 5V DC at 40mA and 20V DC at 80mA.
The maximum output power is rated at 2 watts.
It features a high isolation voltage of 5.2kV DC.
The converter has compact dimensions of 19.65mm in length, 19.5mm in width, and 12.65mm in depth.
It has an efficiency rating of 81%, optimizing energy consumption during operation.
It is designed for through-hole mounting with a DIP package type.
The unit provides ultra-low ripple and noise at 50mV peak-to-peak.
It supports a wide operating temperature range from -40°C to +100°C.
Yes, it complies with RoHS standards for environmentally responsible manufacturing.
This converter features 7 pins for easy PCB integration.
It is suitable for industrial applications including motor drives and inverter circuits, particularly in gate drive circuits for IGBTs and MOSFETs.
