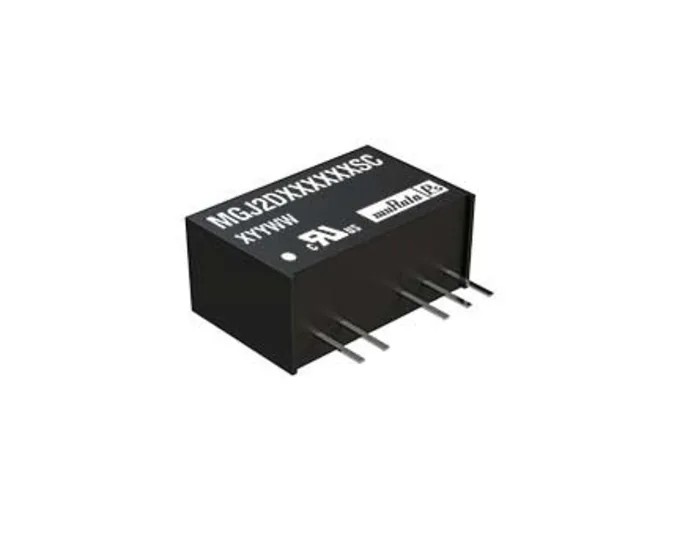

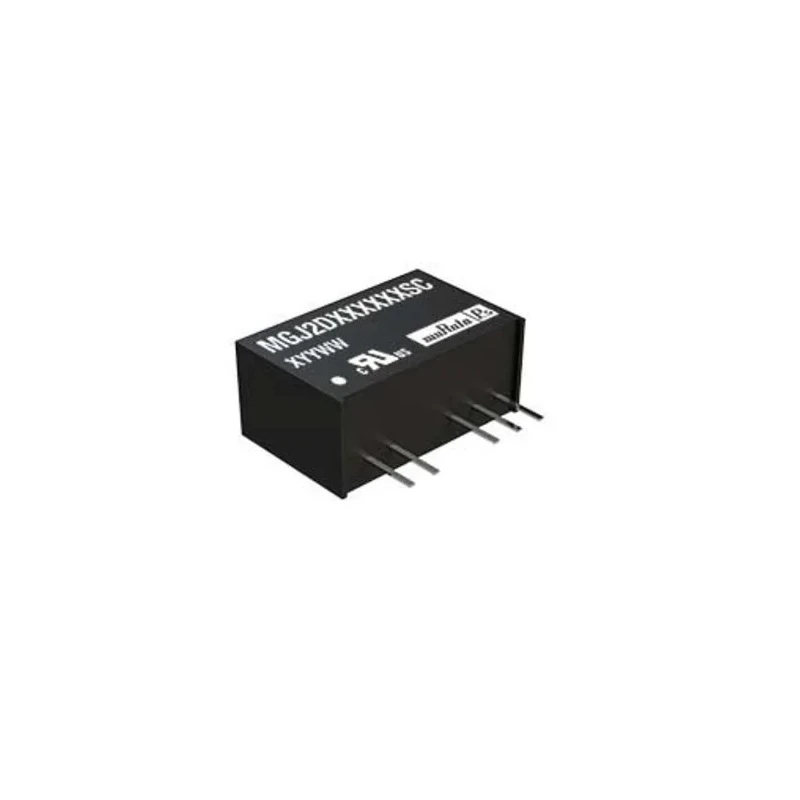

Murata Power Solutions DC/DC Converter 4.5V to 5.5V 2W Through Hole DIP Package MGJ2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Efficiency | 76% |
| Length | 19.65mm |
| Model | MGJ2 |
| Depth | 12.65mm |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | MGJ2 |
| Package Type | DIP |
| Minimum Operating Temperature | 105°C |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 4.5, 5.5V dc |
| Isolation Voltage | 5.2kV dc |
Key Features
- Supports input voltage range from 4.5 V to 5.5 V DC.
- Provides dual output voltages optimized for gate drive circuits.
- Features 5.2 kV DC isolation voltage ensuring high isolation performance.
- Compact DIP package with dimensions 19.65 mm × 19.5 mm × 12.65 mm for space-saving integration.
- High operating temperature tolerance up to 105 °C suitable for industrial environments.
- Efficiency rating of 76% maximizes power usage with minimal loss.
- Designed for reliable operation in motor drives, inverters, and bridge circuits.
- RoHS compliant ensuring environmental safety and regulatory compliance.
Product Description
Murata Power Solutions MGJ2 DC/DC Converter model MGJ2 is a high-performance 2 W dual output isolated converter designed in a through-hole DIP package. Operating within a 4.5 V to 5.5 V DC input voltage range, it delivers dual output voltages tailored for optimal gate driver performance in IGBT and MOSFET bridge circuits. The device demonstrates a high isolation voltage rating of 5.2 kV DC, enabling safe operation in industrial and demanding electrical environments.
This converter supports operation up to 105 °C, making it suitable for harsh industrial applications including motor drives, inverters, and power management systems. Its footprint of 1.96 cm² and compact 19.65 mm length, 19.5 mm width, and 12.65 mm depth DIP package enable integration in space-constrained electronics designs.
Achieving 76% efficiency, the MGJ2 series reduces thermal load while maintaining power density and system reliability. The converter is RoHS compliant and meets industry standards for environmental safety and quality assurance.
Typical applications include powering high side and low side gate drive circuits for semiconductor switches, functionally isolating signals in electronic devices, and improving electromagnetic interference performance in power supplies and motor drives.
Supports input voltage range from 4.5 V to 5.5 V DC. Dual isolated outputs suitable for optimized gate drive control. High isolation voltage of 5.2 kV DC to ensure system safety. Compact through-hole DIP packaging for easy PCB assembly.
Industrial grade operating temperature up to 105 °C. Energy efficient operation with 76% efficiency rating. Ideal for high side and low side gate drive circuits in IGBT/MOSFET bridge circuits. Complies with RoHS environmental standards.
This Murata Power Solutions MGJ2 series DC/DC Converter is a reliable choice for industrial and commercial power electronics applications requiring isolated dual outputs and compact form factor. Browse more power conversion products and trusted Murata electronics solutions on EnvMart for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the MGJ2 DC/DC converter is from 4.5 V to 5.5 V DC.
This model has a maximum output power of 2 W.
The dimensions of the MGJ2 converter are 19.65 mm in length, 19.5 mm in width, and 12.65 mm in depth.
The efficiency rating of the MGJ2 is 76%, which maximizes power usage with minimal loss.
The MGJ2 features a high isolation voltage of 5.2 kV DC, ensuring safe operation in industrial environments.
This model uses a through-hole mounting type, designed for easy PCB assembly.
The MGJ2 is rated for operation in environments up to 105 °C, making it suitable for industrial applications.
The MGJ2 provides dual outputs optimized for gate drive circuits.
The MGJ2 is RoHS compliant, ensuring it meets environmental safety and regulatory standards.
This model provides dual output voltages of 4.5 V and 5.5 V DC, suitable for gate drive control.
The MGJ2 is designed for applications such as powering high side and low side gate drive circuits, functionally isolating signals, and improving electromagnetic interference performance in power supplies.
The country of origin for the MGJ2 DC/DC converter is China.
