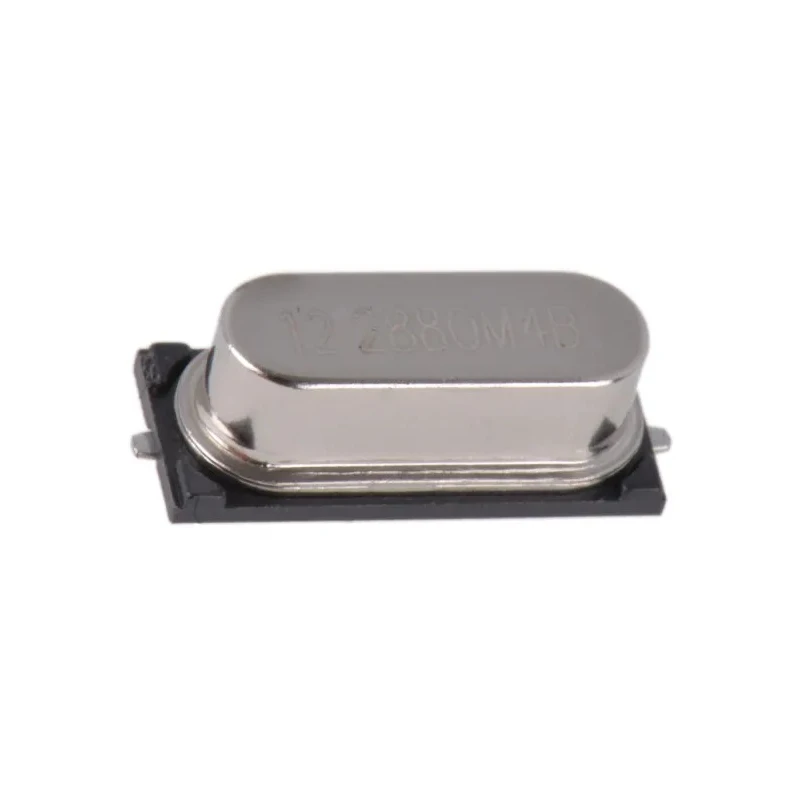

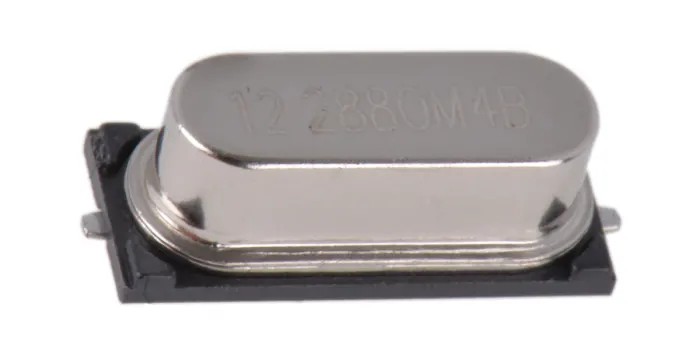

QANTEK 12.288 MHz Crystal Oscillator ±20 ppm Frequency Tolerance HC-49 2-Pin 4.4 mm x 11.4 mm x 4.8 mm QCS12.2880F18B23R

QANTEK QCS12.2880F18B23R is a precision crystal oscillator designed for electronic circuit timing and frequency control. It features a standard frequency of 12.288 MHz with a frequency tolerance of ±20 ppm, making it suitable for applications requiring high timing accuracy.

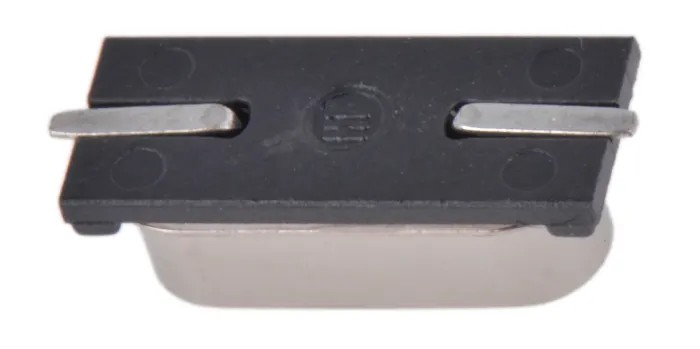

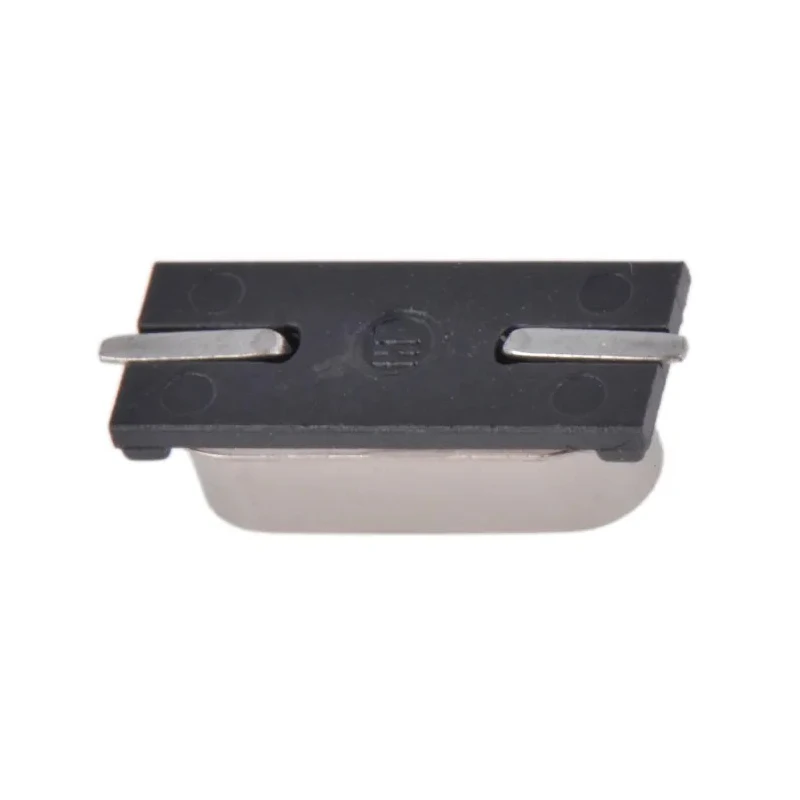

This oscillator comes in a compact HC-49 package with dimensions of 11.4 mm length, 4.8 mm width, and 4.4 mm height, and is designed for surface mount assembly with 2-pin configuration, facilitating easy integration into printed circuit boards.

It operates reliably across a wide temperature range from -40°C to 85°C, ensuring stable performance under varying environmental conditions. The device's series resistance is specified at 50 Ω to maintain stable oscillations and lower power consumption.

The load capacitance is 18 pF, which supports stable frequency output suitable for communication, computing, and industrial electronic systems. Furthermore, the product is RoHS compliant, meeting international environmental standards.

The oscillator is supplied on tape & reel packaging, ideal for automated manufacturing processes and volume production. Originating from China, it belongs to the QCS series, delivering dependable performance in industrial and commercial electronic applications.

Standard frequency of 12.288 MHz suitable for precise timing applications. Surface mount type with 2 pins for easy PCB integration. Low series resistance of 50 Ω ensures stable oscillation. Operating temperature range from -40°C to 85°C for reliable performance.

Compact dimensions: length 11.4 mm, width 4.8 mm, height 4.4 mm. Load capacitance of 18 pF for accurate frequency characteristics. RoHS compliant, ensuring environmental safety and quality. Package delivered on tape & reel for efficient manufacturing.

This crystal oscillator is ideal for applications in electronics manufacturing, communication equipment, consumer electronics, and industrial control systems. It combines precision, reliability, and ease of use for engineers and designers seeking high-quality timing components.
