Texas Instruments Operational Amplifier, 20 MHz, 5-Pin SOT-23, 1 Channel, 1.8-5.5V OPA322AIDBVT

Texas Instruments OPA322AIDBVT is a low voltage operational amplifier designed with a gain bandwidth product of 20 MHz, housed in a 5-pin SOT-23 surface mount package. It is intended for precision amplification in industrial, automotive, and general electronic applications where compact size and reliability are crucial.

This operational amplifier operates over a wide supply voltage range from 1.8 V up to 5.5 V, making it suitable for low-power battery-operated devices and systems. Featuring a low input offset voltage of 2 mV and low input bias currents (±400 pA), the OPA322AIDBVT ensures accurate signal conditioning with minimal error and noise influence.

The device supports a high slew rate of 10 V/μs, enabling excellent transient response for dynamic signals. Its operating temperature range from -40°C to 125°C complies with demanding automotive industry standards, specifically meeting the AEC-Q100 certification for rugged use in automotive systems.

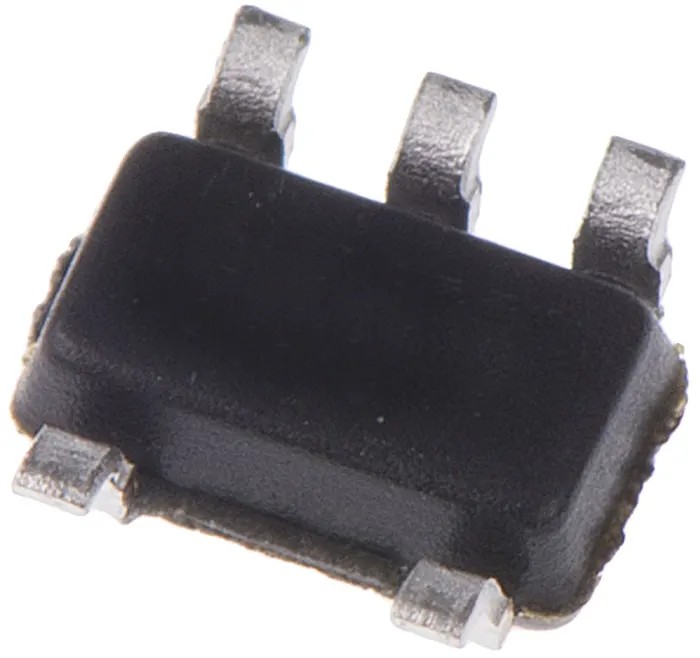

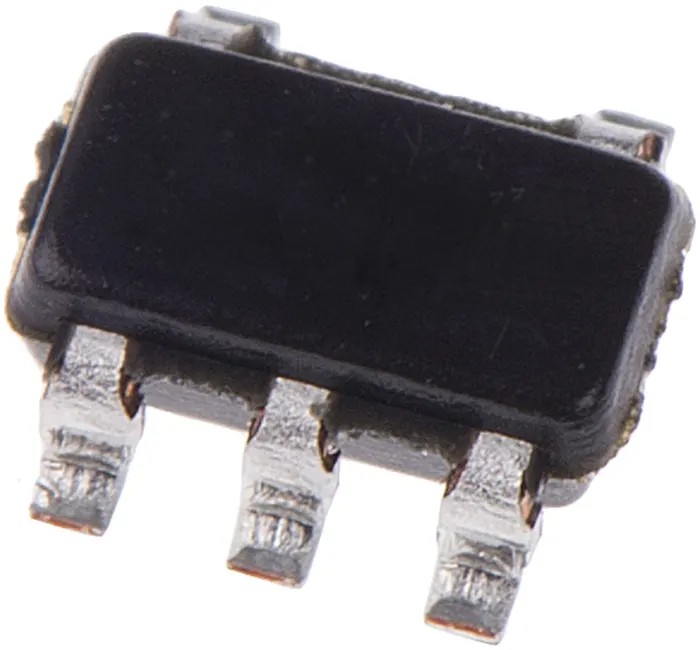

The compact SOT-23 package with dimensions 3.05 mm length, 1.75 mm width, and 1.3 mm height allows for space-saving incorporation in densely packed electronic circuits. The single channel amplifier is ideal for a wide range of applications including signal conditioning, sensor amplification, and instrumentation.

Low voltage operation with a supply range from 1.8 V to 5.5 V. Precision input offset voltage of 2 mV ensuring accuracy. High slew rate of 10 V/μs for fast response to input changes. Certified automotive standard AEC-Q100 for dependable automotive electronics.

Compact 5-pin SOT-23 surface mount package for space-constrained designs. Low input bias current of ±400 pA suitable for sensitive analog circuits. Wide operating temperature supports harsh environments. Single channel design supporting diverse amplification needs.

This operational amplifier is used extensively in industrial electronics, automotive, instrumentation, and consumer electronics where high-frequency response and precision are required. It provides designers with a robust and versatile solution for low voltage amplification challenges.
