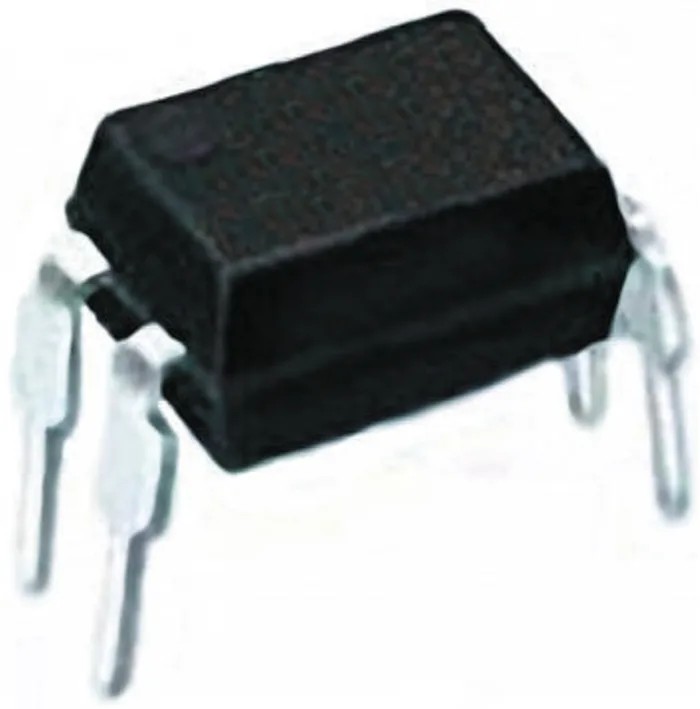

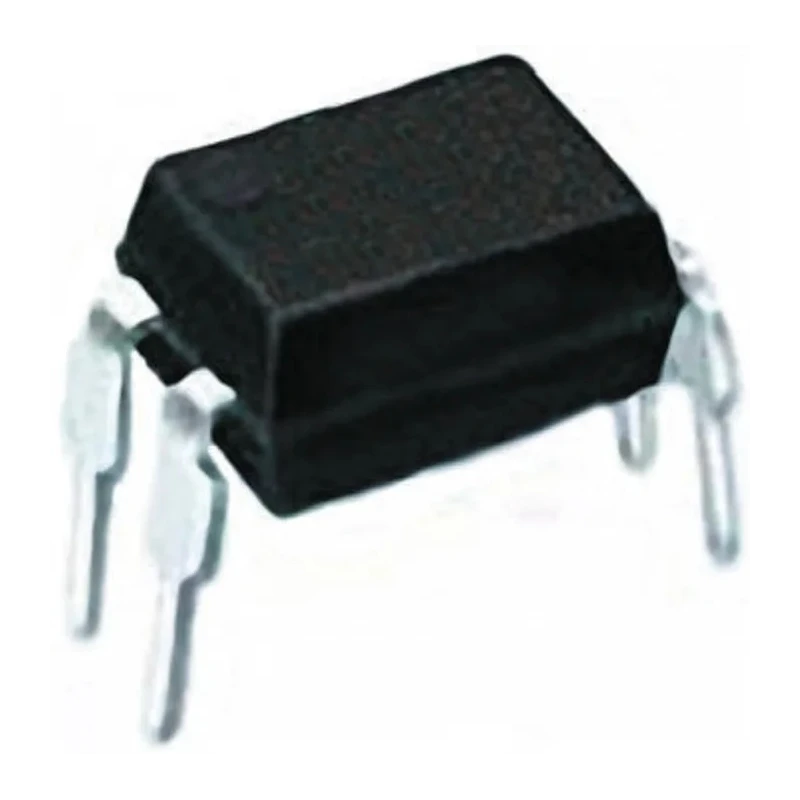

onsemi AC Input 2-Channel Optocoupler Through Hole 4-Pin MDIP FOD814300W
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD814300W |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Output type | Phototransistor |
| Series | FOD |
| Maximum Operating Temperature | 110°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL and VDE, C-UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | AC |
| Typical Rise Time | 18μs |
| Maximum Current Transfer Ratio | 3% |
| Minimum Current Transfer Ratio | 20% |
| Vishay H11AA1 AC Input Optocoupler, Through Hole, 6-Pin DIP-6Brand | Vishay |
Key Features
- This optocoupler supports AC input and features two channels for versatile use.
- It is housed in a 4-pin MDIP package for secure through-hole installation.
- The device offers a maximum forward voltage of 1.4V and typical rise/fall times of 18 microseconds.
- Designed for industrial applications, it has an isolation voltage rating of 5000Vrms for safety.
- Operating temperature ranges from -55°C to 110°C, suitable for harsh environments.
- It delivers a minimum current transfer ratio of 20% and a maximum of 3%, ensuring consistent signal integrity.
- The maximum input current is rated at 50mA, supporting a wide range of circuit conditions.
- Compliant with UL and VDE safety standards, assuring performance and reliability.
Product Description
onsemi FOD814300W AC Input 2-Channel Optocoupler is a robust electronic component designed for isolating input and output signals in electronic circuits. Equipped with two independent channels, it features phototransistor output and is suitable for through-hole mounting in a compact 4-pin Molded Dual Inline Package (MDIP).
This optocoupler is specifically engineered to handle AC input currents with a maximum forward voltage of 1.4V and a maximum input current of 50mA, making it ideal for relay contact monitoring, industrial control systems, and other applications requiring precise signal isolation. The device operates safely within a wide temperature range from -55°C to 110°C, making it suitable for use in demanding industrial and manufacturing environments.
The FOD814300W offers exceptional isolation voltage of 5000Vrms, ensuring complete electrical separation between input and output circuits, which enhances system safety and performance. Its typical rise and fall times of 18 microseconds enable rapid response, essential in timing-sensitive applications.
Designed to comply with UL and VDE certifications, the component meets international safety and quality standards. The device is delivered in tape and reel packaging, allowing for efficient use in automated production lines.
This two-channel optocoupler supports AC input with phototransistor output, enhancing versatility. Through hole 4-pin MDIP package ensures ease of mounting and integration in PCB designs. Industrial-grade operating temperature range from -55°C to 110°C for reliability.
Maximum input current of 50mA and forward voltage of 1.4V supports diverse circuit needs. High isolation voltage of 5000Vrms provides electrical safety between input and output. Typical rise and fall times of 18μs enable swift signal response.
Complies with UL and VDE approvals, ensuring product safety and quality. Packaging on tape and reel streamlines manufacturing processes.
This product is well-suited for industrial automation, relay monitoring, control systems, and other electronics requiring high-fidelity signal isolation. Explore the range of onsemi Optocouplers and related electronic components on EnvMart for comprehensive industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this optocoupler is rated at 50mA, allowing it to support a wide range of circuit conditions.
It has an isolation voltage rating of 5000Vrms, ensuring complete electrical separation between input and output circuits for enhanced safety.
This optocoupler features typical rise and fall times of 18 microseconds, enabling rapid signal response in timing-sensitive applications.
The operating temperature range for this model is from -55°C to 110°C, making it suitable for harsh industrial environments.
This optocoupler provides a phototransistor output, which is ideal for isolating input and output signals in electronic circuits.
This model features two independent channels, allowing for versatile use in various applications.
The maximum forward voltage for the FOD814300W is 1.4V, which is suitable for AC input applications.
It is delivered in tape and reel packaging, which facilitates efficient use in automated production lines.
This optocoupler complies with UL and VDE safety standards, ensuring its performance and reliability in various applications.
The FOD814300W is designed for through-hole mounting, housed in a compact 4-pin MDIP package.
This optocoupler is well-suited for industrial automation, relay monitoring, and control systems requiring high-fidelity signal isolation.
The minimum current transfer ratio for the FOD814300W is 20%, ensuring consistent signal integrity across its operating range.
