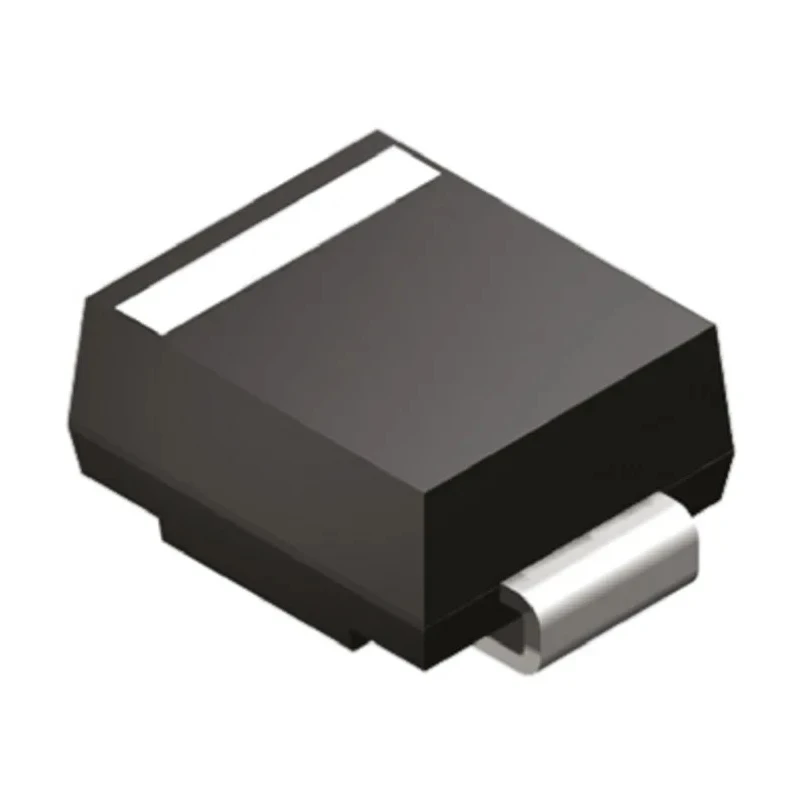

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ48CA

Taiwan Semiconductor SMBJ48CA is a high-performance 1-element bi-directional transient voltage suppression (TVS) diode rated for 600 watts peak pulse power dissipation. It comes in a compact 2-pin DO-214 surface mount package suitable for protecting sensitive electronic components from voltage spikes and transients.

This TVS diode features a bi-directional diode configuration that clamps voltage surges effectively from both positive and negative directions, making it ideal for AC and DC circuit protection. The minimum breakdown voltage of 53.3V and maximum reverse stand-off voltage of 48V enable it to operate reliably in various power lines and signal circuits.

With a peak pulse current of 7.8A and a clamping voltage of 77.4V, the SMBJ48CA provides robust overvoltage protection against transient events such as lightning, electrostatic discharge (ESD), and switching surges. Its operational temperature range from -65°C to 150°C allows it to perform in harsh industrial and automotive environments.

The DO-214 package occupies minimal PCB space with a length of 4.75 mm, width of 3.95 mm, and height of 2.45 mm, facilitating compact designs and ease of automated assembly in surface mount technology (SMT).

Featuring a low maximum reverse leakage current of 1μA, this diode ensures minimal power loss under normal operating conditions. The product complies with recognized industry standards including FBI and is manufactured in China.

Suitable for a wide range of industrial, automotive, electronic manufacturing, and telecommunications applications, the SMBJ48CA TVS diode offers reliable protection against voltage transients to extend the longevity and durability of electronic systems.

The diode features a bi-directional configuration for efficient voltage clamping. It has a minimum breakdown voltage of 53.3 volts. Maximum reverse stand-off voltage is 48 volts, suitable for various protection circuits.

The device supports a peak pulse current of 7.8 amperes and a clamping voltage of 77.4 volts. Operating temperature ranges from -65°C to a maximum of 150°C ensuring high reliability. Compact DO-214 package dimensions include 4.75mm length, 3.95mm width, and 2.45mm height.

It has a low maximum reverse leakage current of 1 microampere. Ideal for surface mount technology (SMT) applications across electronic and industrial sectors. Manufactured in China, meeting industry standards including FBI approval.
