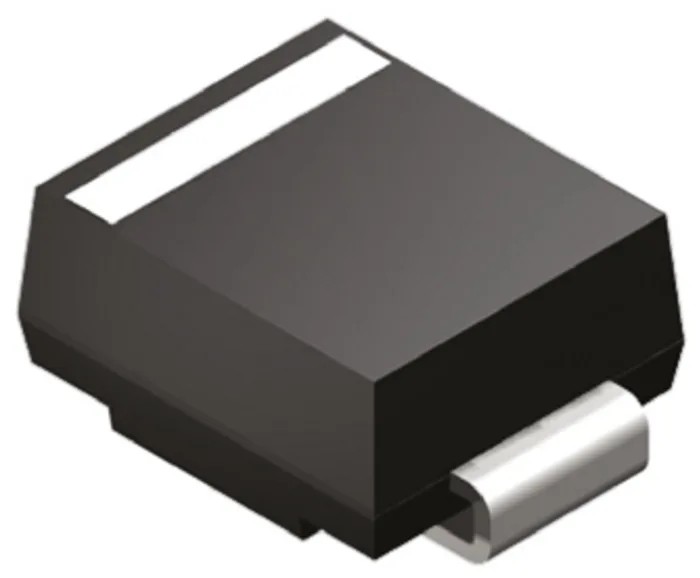

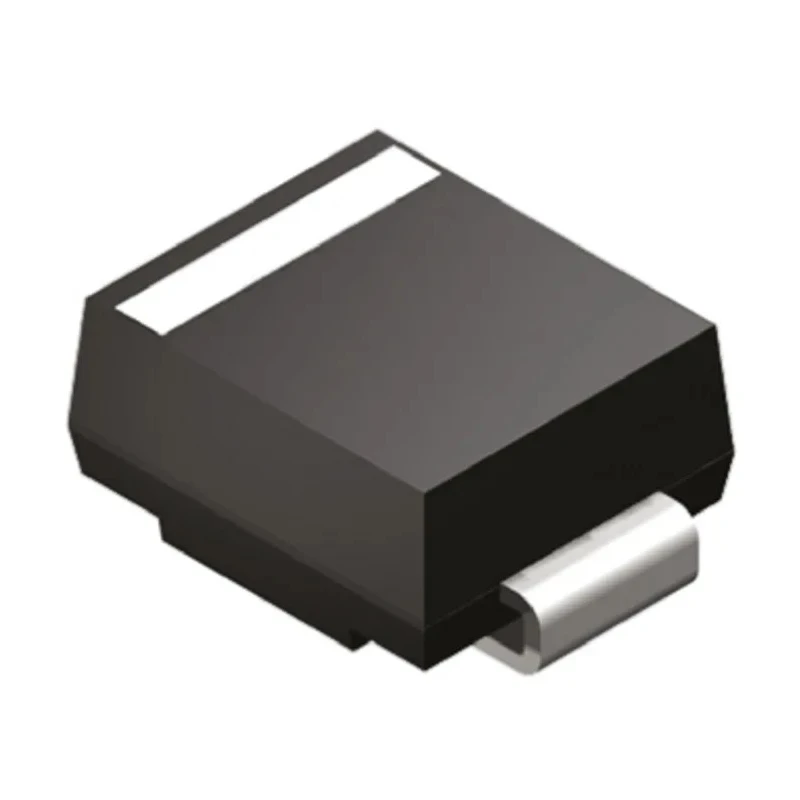

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode 600W, Surface Mount DO-214 SMBJ13CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.45mm |
| Length | 4.75mm |
| Model | SMBJ13CA |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 21.5V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 14.4V |
| Maximum Reverse Stand-off Voltage Vwm | 13V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 27.9A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Provides bidirectional transient voltage suppression for circuit protection.
- Offers a minimum breakdown voltage of 14.4 volts and maximum reverse stand-off voltage of 13 volts.
- Equipped with excellent clamping voltage capability at 21.5 volts.
- Rated for operation from -55°C up to +150°C ambient temperature.
- Featuring a 2-pin DO-214 package suitable for surface mounting.
- Capable of handling a maximum peak pulse current of 27.9 amperes.
- Glass-passivated junction enhances reliability and surge resistance.
- Compliant with FBI standards and UL94V-0 flammability classification.
Product Description
Taiwan Semiconductor SMBJ13CA is a high-performance 1-element bi-directional transient voltage suppressor (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and transient surges. Rated with a peak pulse power dissipation of 600 watts, it is tailored for surface mount applications in a compact DO-214 package with dimensions of 4.75mm length, 3.95mm width, and 2.45mm height.
This TVS diode provides reliable bidirectional voltage clamping with a minimum breakdown voltage of 14.4 volts and a maximum reverse stand-off voltage of 13 volts, making it suitable for protecting sensitive electronics in demanding industrial, communications, automotive, and power supply environments.
It supports operation across a wide temperature range from -55°C to 150°C, ensuring performance under harsh thermal conditions. The device is capable of withstanding peak pulse currents up to 27.9 amperes and features a low maximum reverse leakage current of 5 microamperes, enhancing circuit efficiency and reliability.
The glass-passivated junction improves surge resistance and electrical stability, while its FBI standard compliance and UL94V-0 flammability rating assure quality and safety. The 2-pin DO-214 surface mount form factor simplifies integration on printed circuit boards, facilitating automated assembly for manufacturing efficiency.
Applications include transient voltage protection in industrial automation, electric power supplies, consumer electronics, automotive electronics, and telecom equipment. It acts as a safeguard to enhance system robustness against voltage transients such as electrostatic discharge (ESD), inductive load switching, and lightning surges.
Provides bidirectional transient voltage suppression for circuit protection. Minimum breakdown voltage of 14.4V with maximum reverse stand-off voltage of 13V. Peak pulse power dissipation rating of 600W for intense surge capability.
Wide operating temperature range from -55°C to 150°C for harsh environments. Compact DO-214 surface mount package with low leakage current. Glass-passivated junction ensures low incremental surge resistance. Compliant with FBI standards and UL94V-0 flammability classification.
High reliability for industrial, automotive, and telecom transient protection.
EnvMart offers a comprehensive range of semiconductor protection components including TVS Diodes like the SMBJ13CA to meet various industrial and electronic design requirements. Explore more solutions in our Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMBJ13CA has a peak pulse power dissipation rating of 600 watts, allowing it to handle intense surge events.
This model has a minimum breakdown voltage of 14.4 volts, which is essential for effective transient voltage suppression.
The maximum reverse stand-off voltage for the SMBJ13CA is 13 volts, providing a safe operating limit for sensitive circuits.
It features a clamping voltage of 21.5 volts, which helps protect circuits from voltage spikes.
The SMBJ13CA operates effectively within a temperature range of -55°C to +150°C, making it suitable for harsh environments.
This unit is capable of withstanding a maximum peak pulse current of 27.9 amperes, ensuring robust performance during surges.
It comes in a DO-214 package type, which is designed for surface mounting on printed circuit boards.
The SMBJ13CA measures 2.45mm in height, 4.75mm in length, and 3.95mm in width, making it compact for various applications.
This model features a single bi-directional diode configuration, suitable for transient voltage suppression in both directions.
It is compliant with FBI standards and has a UL94V-0 flammability classification, ensuring quality and safety in its applications.
The SMBJ13CA has a low maximum reverse leakage current of 5 microamperes, which enhances circuit efficiency.
This TVS diode is suitable for protecting sensitive electronics in industrial automation, automotive electronics, consumer electronics, and telecom equipment.
