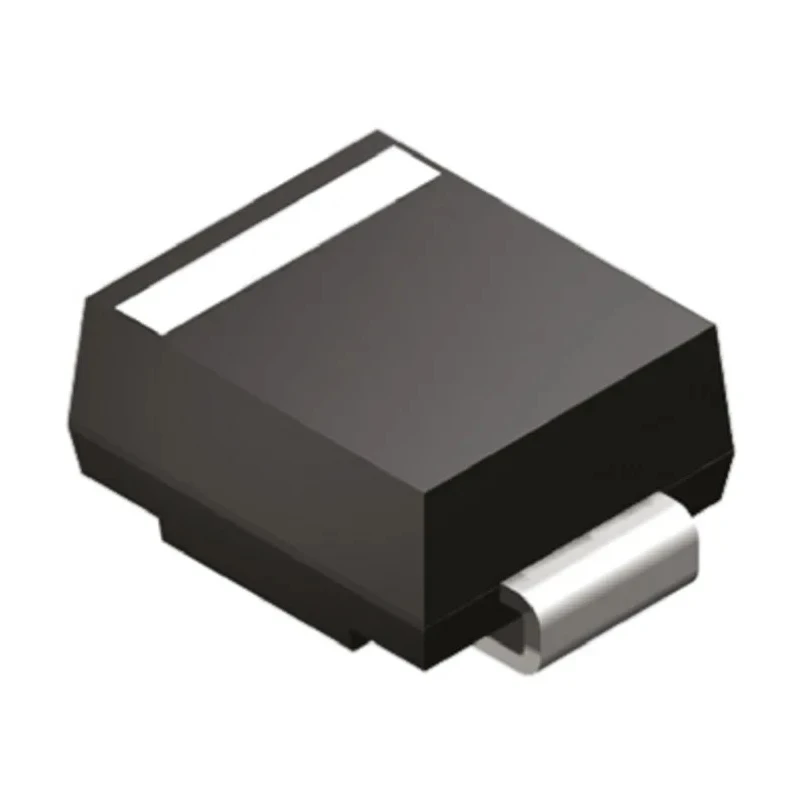

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 600W 2-Pin DO-214 SMBJ12A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.45mm |
| Length | 4.75mm |
| Model | SMBJ12A |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 19.9V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 13.3V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 30.2A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Single diode configuration for focused voltage suppression.
- Uni-directional design protects circuits from positive voltage transients.
- Surface mount package type DO-214 with compact dimensions.
- Handles peak pulse power dissipation of 600W efficiently.
- Operating temperature range from -55°C to 150°C ensures wide application scope.
- Minimum breakdown voltage of 13.3V for effective surge protection.
- Maximum reverse stand-off voltage rated at 12V.
- Pin count of 2 enables easy PCB integration.
Product Description
Taiwan Semiconductor SMBJ12A is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode built to protect electronic circuits by clamping voltage spikes. This TVS diode has a rugged surface mount DO-214 package, making it suitable for automated assembly processes.
With a peak pulse power dissipation rating of 600W, SMBJ12A is capable of handling significant transient events typically caused by electrostatic discharge (ESD), lightning, and inductive load switching. The device provides protection to sensitive electronics in industrial, automotive, and consumer electronic applications.
The diode features a minimum breakdown voltage of 13.3V and a maximum reverse stand-off voltage of 12V, making it ideal for 12V circuit protection. Its low clamping voltage of 19.9V minimizes potential damage to downstream components during transient surges.
Operating efficiently between temperatures of -55°C and 150°C, the SMBJ12A is designed for durability and reliability in harsh environments. It features a 2-pin configuration and measures compactly at 4.75mm length, 3.95mm width, and 2.45mm height, facilitating installation in space-constrained PCB designs.
Single diode configuration for focused voltage suppression. Uni-directional design protects circuits from positive voltage transients. Surface mount DO-214 package for easy PCB assembly. 600W peak pulse power dissipation rating ensures high energy absorption.
Wide operating temperature range from -55°C to 150°C enhances versatility. Minimum breakdown voltage of 13.3V supports 12V system applications. Maximum reverse stand-off voltage of 12V prevents unwanted conduction. Low clamping voltage of 19.9V limits transient voltages during surges.
Maximum peak pulse current of 30.2A accommodates large transient currents. Compact dimensions allow integration into tight electronic assemblies. Complies with FBI standards for quality assurance and reliability.
This TVS diode is widely used in electronic circuits for transient voltage suppression, protecting semiconductor devices from damage due to voltage spikes. Suitable applications include power supply protection, industrial controls, automotive electronics, and telecommunications equipment.
Explore our broad catalog of semiconductors and TVS Diodes to ensure robust protection for your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMBJ12A has a peak pulse power dissipation rating of 600W, allowing it to handle significant transient voltage events efficiently.
The minimum breakdown voltage for this model is 13.3V, which is suitable for protecting 12V circuits from voltage spikes.
The maximum reverse stand-off voltage is rated at 12V, which helps prevent unwanted conduction during normal operation.
This model measures 4.75mm in length, 3.95mm in width, and 2.45mm in height, making it compact for PCB integration.
The diode operates efficiently within a temperature range of -55°C to 150°C, allowing for use in various environments.
The clamping voltage is 19.9V, which limits transient voltages and minimizes potential damage to downstream components.
This model features a single diode configuration, designed for focused voltage suppression.
The maximum peak pulse current for the SMBJ12A is 30.2A, accommodating large transient currents during voltage spikes.
It is packaged in a surface mount DO-214 type, facilitating easy assembly in automated processes.
This diode complies with FBI standards for quality assurance and reliability in electronic applications.
It is widely used for transient voltage suppression in power supply protection, industrial controls, automotive electronics, and telecommunications equipment.
The SMBJ12A has a pin count of 2, which allows for easy integration into printed circuit boards (PCBs).
