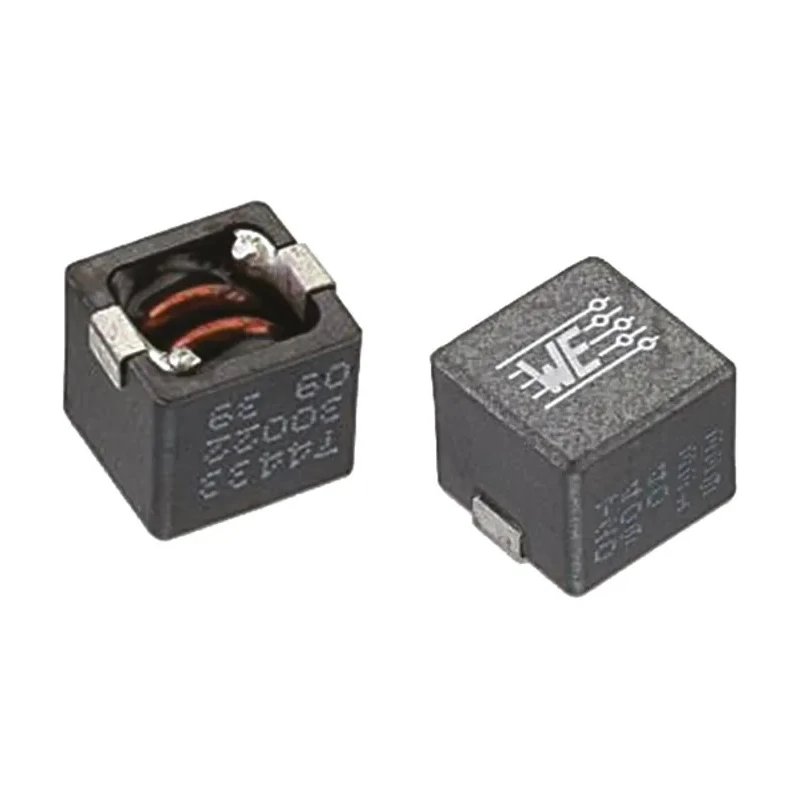

Wurth Elektronik WE-HCC 8070 Shielded Wirewound Surface Mount Inductor 2.2μH ±20% 16.5A IDC 7443340220
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 7.2mm |
| Length | 8.4mm |
| Depth | 7.9mm |
| Packaging | Tape & Reel |
| Series | WE-HCC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Package/Case | 8070 |
| Maximum DC Current | 16.5A |
| Maximum DC Resistance | 4.4mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 97MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsIPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3 | 2013, RoHS, REACH, JEDEC JS709B |
Key Features
- Constructed with magnetically shielded wire wound design ensuring minimal electromagnetic interference.
- Optimized for high current applications including DC/DC converters and switching regulators.
- Complies with automotive standard AEC-Q200 for robust performance.
- Operates reliably within temperature range -40°C to 125°C.
- Resistant DC resistance of 4.4mΩ reduces power loss in circuits.
- Surface mount termination style suitable for automated PCB assembly.
- Core material made from ferrite enhancing magnetic performance.
- Maximum self-resonant frequency of 97MHz supports high frequency applications.
Product Description
Wurth Elektronik 7443340220 is a WE-HCC series 8070 shielded wirewound surface mount inductor featuring a ferrite core, 2.2μH inductance with ±20% tolerance, and a maximum DC current rating of 16.5A IDC. Designed for high-performance electronic applications, it provides excellent magnetic shielding and low DC resistance of 4.4mΩ, improving efficiency and reliability in circuits.
This inductor series targets demanding use cases such as graphic cards, laptops, industrial computers, motherboards, high current switching regulators, DC/DC converters, and polyphase-switching regulators. Its robust design meets automotive standard AEC-Q200, and it operates reliably in environments with temperatures ranging from -40°C to 125°C.
The package size is 8070 with detailed dimensions of 8.4mm length, 7.2mm height, and 7.9mm depth, suitable for compact surface mount technology (SMT) circuits. Its surface mount termination style supports high-volume automated PCB assembly, ensuring production efficiency.
The ferrite core construction and wirewound design enable a maximum self-resonant frequency of 97MHz, ensuring effectiveness in high frequency applications. Additional compliance with IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3:2013, RoHS, and REACH assures quality and environmental standards conformity.
This inductor is manufactured in China and meets strict quality and environmental regulations. It is ideal for industrial electronics, computing hardware, telecommunications equipment, and automotive electronic components.
Magnetically shielded wirewound construction minimizes EMI. High current handling supports advanced DC/DC converters. Automotive-grade standard AEC-Q200 certification. Wide operating temperature from -40°C up to 125°C. Low DC resistance of 4.4mΩ minimizes power loss.
Compact 8070 package supports dense PCB layouts. Surface mount termination for efficient PCB assembly. Ferrite core ensures strong magnetic performance. High self-resonant frequency of 97MHz suitable for high frequency circuits.
Compliance with multiple international standards including RoHS and REACH. Explore more Surface Mount Inductors and electronic components in the Wurth Elektronik range available at EnvMart for your industrial, commercial, and laboratory electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this wirewound surface mount inductor is 2.2μH with a tolerance of ±20%.
This model has a maximum DC current rating of 16.5A IDC.
The dimensions of this inductor are 8.4mm in length, 7.2mm in height, and 7.9mm in depth.
It can operate reliably within a temperature range of -40°C to 125°C.
This inductor features a surface mount termination style, suitable for automated PCB assembly.
The maximum self-resonant frequency of this inductor is 97MHz, making it suitable for high frequency applications.
The DC resistance of this model is 4.4mΩ, which helps to reduce power loss in circuits.
This inductor complies with the automotive standard AEC-Q200, ensuring robust performance in automotive applications.
The core material used in this inductor is ferrite, which enhances its magnetic performance.
This inductor is packaged in a tape and reel format, suitable for high-volume automated assembly.
It complies with IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3:2013, RoHS, and REACH standards.
This model is optimized for high current applications including DC/DC converters and switching regulators.
