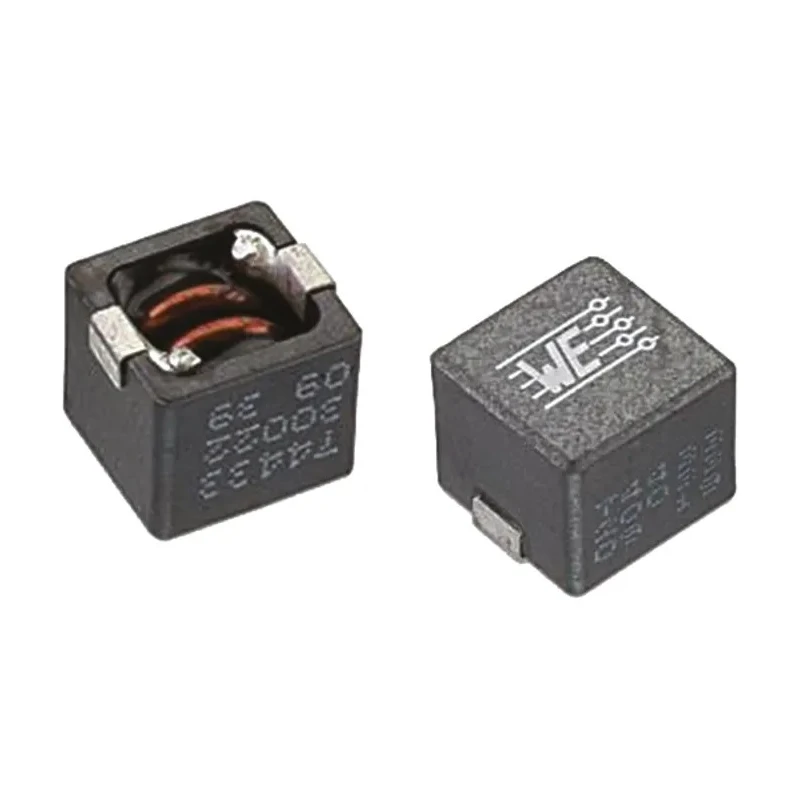

Wurth Elektronik WE-HCC 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20 % 15.5 A IDC 7443320470
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 9.5mm |
| Length | 12.1mm |
| Depth | 11.4mm |
| Packaging | Tape & Reel |
| Series | WE-HCC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Package/Case | 1210 |
| Maximum DC Current | 15.5A |
| Maximum DC Resistance | 6.35mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 43MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3 | 2013, RoHS |
Key Features
- This inductor features a 1210 package size with a ferrite core for magnetic shielding.
- It is suitable for high current applications with a maximum DC resistance of 6.35 mΩ.
- Designed to operate reliably between -40°C and 125°C operating temperature range.
- Complies with automotive standard AEC-Q200 and various international standards including REACH and RoHS.
- The inductor construction uses wirewound technology for durability and performance.
- Maximum self-resonant frequency is 43 MHz, suited for switching regulator and DC/DC converter circuits.
- Packaged in tape and reel for efficient automated assembly processes.
- Designed for surface mount termination style to integrate easily on PCB assemblies.
Product Description
Wurth Elektronik 7443320470 WE-HCC series is a high-performance, magnetically shielded wirewound surface mount inductor designed specifically for applications requiring high current capacity and robust inductance.
This 1210 size inductor features a ferrite core that provides effective magnetic shielding, minimizing electromagnetic interference in sensitive electronic circuits.
Typical applications include graphic cards, laptops, industrial computers, motherboards, high current switching regulators, DC/DC converters, and polyphase-switching regulators, making it versatile in industrial, computer hardware, and power management environments.
The device supports a high maximum DC current of 15.5 A with an inductance value of 4.7 μH and tolerance of ±20 %, ensuring stable performance under demanding conditions.
Operating temperatures range from -40°C to 125°C, allowing usage in harsh environments while maintaining compliance with automotive AEC-Q200 standards and international regulations such as REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3:2013, and RoHS.
Additional technical features include low DC resistance of 6.35 mΩ and a maximum self-resonant frequency of 43 MHz, suitable for efficient filtering and power regulation in complex circuitry.
This inductor is constructed with wirewound technology and surface mount termination style for precise, reliable, and compact placement on PCBs. Packaged in tape & reel format, it supports automated manufacturing workflows, enhancing production efficiency.
Country of origin is China. The Wurth Elektronik WE-HCC series combines mechanical robustness with excellent electrical characteristics for industrial-grade electronic assemblies. Browse more Surface Mount Inductors and Wurth Elektronik products at EnvMart for your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 4.7 μH with a tolerance of ±20%.
It supports a maximum DC current of 15.5 A, making it suitable for high current applications.
The dimensions of this inductor are 12.1 mm in length, 11.4 mm in depth, and 9.5 mm in height.
The maximum operating temperature is 125°C, allowing it to function in high-temperature environments.
The minimum operating temperature is -40°C, enabling its use in low-temperature conditions.
It features a ferrite core, which provides effective magnetic shielding.
The maximum self-resonant frequency is 43 MHz, suitable for efficient filtering and power regulation.
The maximum DC resistance is 6.35 mΩ, which contributes to its performance in high current applications.
It uses a surface mount termination style, allowing for easy integration on PCB assemblies.
It complies with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
It is packaged in tape and reel format, facilitating efficient automated assembly processes.
This inductor is suitable for applications such as graphic cards, laptops, industrial computers, and DC/DC converters.
