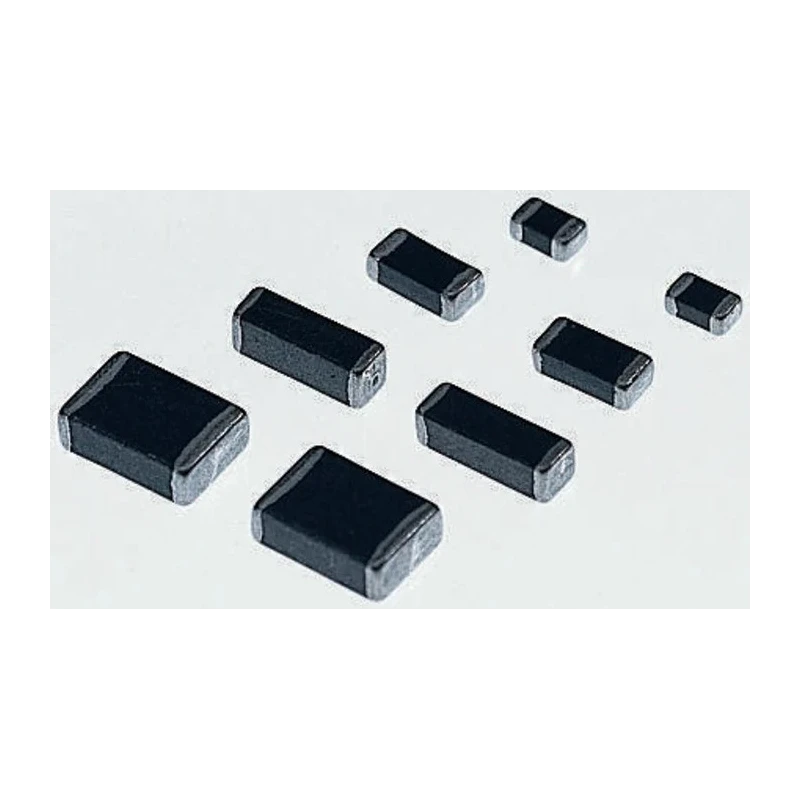

Wurth Elektronik WE-PMI 0603 Unshielded Multilayer Surface Mount Inductor 2.2μH ±20 % 800mA Idc Q:15 74479763222
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Operating Temperature Range | -40°C to +125°C |
| Length | 1.6mm |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-PMI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 2.2μH |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Package/Case | 0603 |
| Maximum DC Current | 800mA |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 80MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a multilayer design for stable inductance.
- Package size is 0603 suitable for surface mounting.
- Maximum self resonant frequency of 80MHz.
- Operates within a temperature range of -40°C to 125°C.
- Has a DC resistance of 300mΩ for efficient current flow.
- Manufactured to comply with IPC/JEDEC J-STD-020D standards.
- Inductor quality factor (Q) is minimum 15 ensuring low energy loss.
- Termination style designed for reliable surface mount soldering.
Product Description
Wurth Elektronik 74479763222 WE-PMI Series 0603 Unshielded Multilayer Surface Mount Inductor is designed for applications requiring reliable inductance of 2.2μH with ±20 % tolerance and a maximum DC current rating of 800mA. This multilayer construction in a compact 0603 package ensures excellent performance and stability across its operating temperature range from -40°C to 125°C.
The inductor features a maximum self resonant frequency of 80MHz and a low DC resistance of 300mΩ, making it suitable for high-frequency circuits. The minimum quality factor of 15 ensures efficient energy transfer with minimal loss. Its surface mount termination style facilitates easy and reliable PCB assembly using standard reflow soldering techniques.
Manufactured to meet the rigorous IPC/JEDEC J-STD-020D and automotive AEC-Q200 standards, this inductor is ideal for automotive electronics, DC/DC converters, and portable devices such as PDAs and digital cameras. The tape and reel packaging format supports high volume automated assembly processes improving manufacturing efficiency.
Constructed with multilayer design for superior inductive performance. Compact 0603 surface mount package suitable for dense PCB layouts. Maintains inductance within ±20 % tolerance across temperature range. Capable of handling continuous current up to 800mA.
Low DC resistance of 300mΩ enhances circuit efficiency. Suitable for applications requiring self resonant frequency up to 80MHz. Complies with IPC/JEDEC J-STD-020D and automotive AEC-Q200 standards. Reliable surface mount termination enables efficient reflow soldering.
Temperature operational range from -40°C up to 125°C. Packaged in tape and reel for automated assembly lines.
This high-quality inductor is an excellent choice for industrial electronics, automotive electronics, power management circuits, and high-frequency applications where size, durability, and performance are critical. Explore more options in the Surface Mount Inductors category at EnvMart for your specific engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 2.2μH with a tolerance of ±20%.
It has a maximum DC current rating of 800mA, making it suitable for various applications.
The maximum self resonant frequency is 80MHz, allowing it to perform well in high-frequency circuits.
The dimensions are 1.6mm in length, 0.8mm in depth, and 0.8mm in height, fitting the 0603 package size.
It operates within a temperature range of -40°C to +125°C, suitable for various environmental conditions.
The inductor features a low DC resistance of 300mΩ, enhancing circuit efficiency.
It uses a surface mount termination style, which facilitates reliable PCB assembly through standard reflow soldering.
It is manufactured to comply with IPC/JEDEC J-STD-020D and automotive AEC-Q200 standards.
The minimum quality factor is 15, ensuring efficient energy transfer with minimal loss.
It is packaged in tape and reel format, supporting high volume automated assembly processes.
This model is ideal for automotive electronics, DC/DC converters, and portable devices such as PDAs and digital cameras.
It features a multilayer construction, which provides stable inductance and performance.
