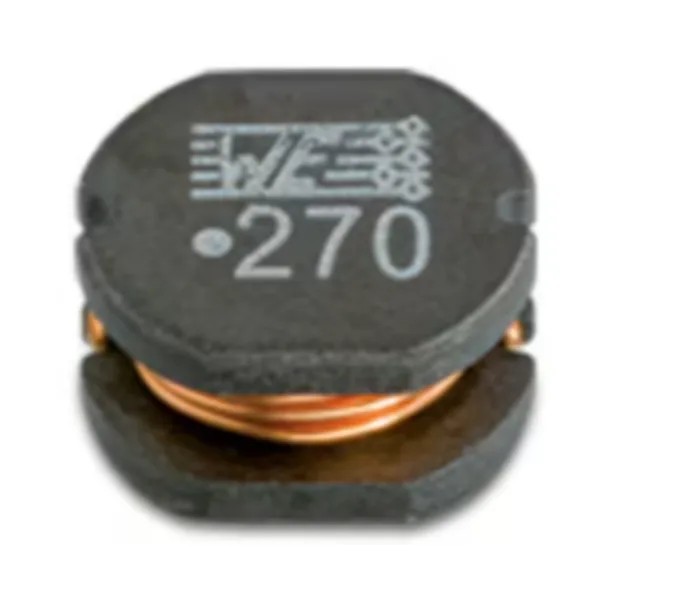

Wurth Elektronik Surface Mount Inductor 2.7μH ±20% 4A Max DC Current Unshielded WE-PD2 744774027

Wurth Elektronik presents model 744774027, a surface mount inductor from the WE-PD2 series with an inductance of 2.7μH ±20% and a maximum DC current rating of 4A. This unshielded wire wound choke is designed for robust performance in compact electronic assemblies.

The 5848 package case measures 5.8mm in length, 4.5mm in height, and 5.2mm in depth, suitable for high-density PCB layouts. With a maximum operating temperature of 125°C and compliant with the AEC-Q200 automotive standard, it is reliable in demanding industrial and automotive electronic applications.

This inductor features a maximum DC resistance of 45mΩ to minimize power losses and operates up to a maximum self-resonant frequency of 50MHz, making it ideal for switching regulators, DC/DC converters, and other power management circuits requiring stable inductance under high current load.

Manufactured in China, the WE-PD2 series is moulded with surface mount termination style and provided in tape and reel packaging for seamless automated production. It complies with environmental standards including RoHS and REACH, and meets JEDEC JS709B specifications.

Typical use cases include switching regulators with low operating voltage for devices like computers, laptops, mobile phones, and pagers. Its unshielded design and electrical characteristics make it apt for integrated DC/DC converters needing high efficiency.

Unshielded inductor construction for reliable performance. Compact 5848 package size ideal for surface mount technology. Inductance tolerance of ±20% ensuring consistent electrical characteristics. Rated maximum operating temperature of 125°C suitable for various environments.

Compliant with automotive standard AEC-Q200 for automotive electronics use. RoHS, REACH, and JEDEC JS709B compliant ensuring environmental and quality standards. Maximum DC resistance of 45mΩ contributes to low power loss.

Supplied in tape and reel packaging for automated assembly processes. Dimensions: length 5.8mm, height 4.5mm, depth 5.2mm. Maximum self-resonant frequency of 50MHz supports high frequency circuits.
