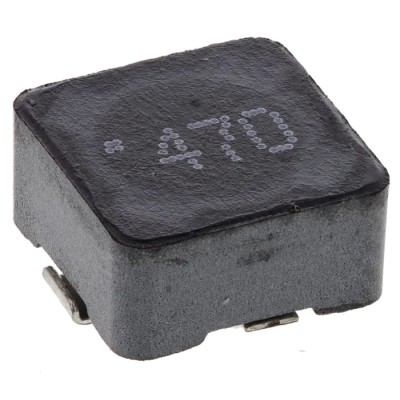

Wurth Elektronik WE-PD Shielded Wirewound Surface Mount Inductor 47μH ±20% 850mA Idc 7332 7447789147
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.2mm |
| Length | 7.3mm |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 7332 |
| Maximum DC Current | 850mA |
| Maximum DC Resistance | 360mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 13MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded wirewound construction reduces leakage fields.
- Compact 7332 package measuring 7.3mm x 7.3mm x 3.2mm.
- Suitable for high current loads up to 850mA DC.
- Complies with AEC-Q200 automotive standard for reliability.
- Operating temperature range from -40°C to 125°C.
- Low maximum DC resistance of 360 milliohms to minimize losses.
- RoHS compliant and molded for durability.
- Recommended for switching regulators and integrated DC-DC converter circuits.
Product Description
Wurth Elektronik 7447789147 is a WE-PD series shielded wirewound surface mount inductor with an inductance of 47μH and a tolerance of ±20%. Rated for a maximum DC current of 850mA, this inductors features a magnetically shielded wirewound construction providing low leakage magnetic fields, ideal for power applications requiring efficient current handling in compact footprints.
The inductor is housed in a 7332 tape & reel package with dimensions of 7.3mm length, 7.3mm depth, and 3.2mm height, making it suitable for automatic PCB assembly processes. It meets the AEC-Q200 automotive reliability standard and is RoHS compliant, ensuring it is built for quality and environmental conformity. Its maximum DC resistance of 360 milliohms minimizes energy loss and heat development during operation.
This inductor is molded to protect against vibration and shock typically encountered in automotive and industrial applications. Its recommended operating temperature range spans from -40°C up to 125°C, enabling use in harsh environments.
Common industrial applications include switching regulators with low and high operating voltages, highly efficient (>86%) integrated DC-DC converters, and graphic card power modules, where stable inductance and current ratings are critical.
Magnetically shielded wirewound construction reduces electromagnetic interference. Compact 7332 package fits standard surface mount technology assembly. High current carrying capacity up to 850mA DC for robust power delivery.
AEC-Q200 automotive standard rated for high-reliability applications. Extended operating temperature range from -40°C to 125°C for diverse environments. Low DC resistance enhances energy efficiency and reduces heat generation.
Molded design increases mechanical stability under vibration and shock. RoHS compliant, supporting environmentally conscious manufacturing.
This Wurth Elektronik WE-PD 7332 inductor is an ideal component for electronic designers and manufacturers seeking reliable, high-performance inductors for power supply circuits used in automotive, industrial, and computing sectors. Browse the full range of Surface Mount Inductors and related electronic components on EnvMart for quality assured solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 47μH with a tolerance of ±20%.
It is rated for a maximum DC current of 850mA.
The dimensions of the 7332 package are 7.3mm in length, 7.3mm in depth, and 3.2mm in height.
The maximum DC resistance is 360 milliohms, which helps minimize energy losses.
The operating temperature range spans from -40°C to 125°C, allowing it to function in harsh environments.
Yes, it complies with the AEC-Q200 automotive standard for reliability.
It features a magnetically shielded wirewound construction, which reduces leakage fields and electromagnetic interference.
It is packaged in a tape & reel format, suitable for automatic PCB assembly processes.
It is recommended for use in switching regulators, integrated DC-DC converters, and graphic card power modules.
The maximum self-resonant frequency is 13MHz.
Yes, it is RoHS compliant, supporting environmentally conscious manufacturing practices.
The termination style is surface mount, making it suitable for various electronic applications.
