Molex KK 396 Series Straight Through Hole Pin Header, 8 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-20-2081

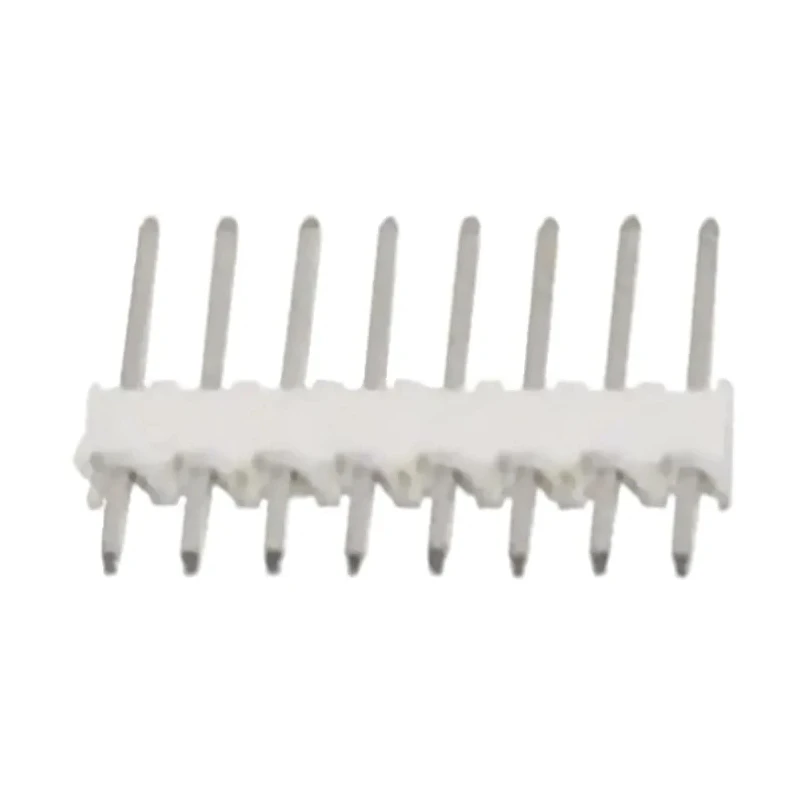

Molex 26-20-2081 KK 396 Series is a straight through hole pin header featuring 8 contacts arranged in a single row with a pitch of 3.96 mm. This connector is designed for through hole mounting on printed circuit boards, facilitating reliable board-to-board and wire-to-board interface connections.

The pin header housing is made from durable nylon material that ensures electrical insulation and mechanical protection under a wide range of operating conditions. The contacts are made from brass with tin plating, providing excellent conductivity and corrosion resistance essential for robust electronic assembly.

Designed to operate in industrial and electronic manufacturing environments, this connector supports currents up to 7A and voltages up to 250V. It functions reliably in temperatures ranging from -40°C minimum to 105°C maximum, making it suitable for harsh and variable ambient conditions.

The 8-contact single row configuration with a 3.96 mm pitch aligns with standard PCB header sizes, ensuring compatibility with corresponding Molex KK series connectors and housings. The tail pin length of 4.45 mm and mating pin length of 11.43 mm are optimized for secure solder joints and consistent mating engagement.

Features a single row of 8 male contacts for PCB connections. Constructed with nylon housing for durability and insulation. Designed for through hole mount on PCB for secure attachment. Suitable for board-to-board and wire-to-board connector applications.

Operates reliably in temperatures from -40°C to 105°C. Contacts are brass with tin plating ensuring good conductivity and corrosion resistance. Rated for maximum voltage of 250V and maximum current of 7A. Contact tail pin length is 4.45 mm and mating pin length is 11.43 mm facilitating proper insertion depth.

This Molex KK 396 Series pin header is ideal for use in electronic manufacturing, testing equipment, consumer electronics, and industrial automation where reliable connector performance is critical. Its robust design and material choices make it a dependable component for diverse electrical assemblies.
