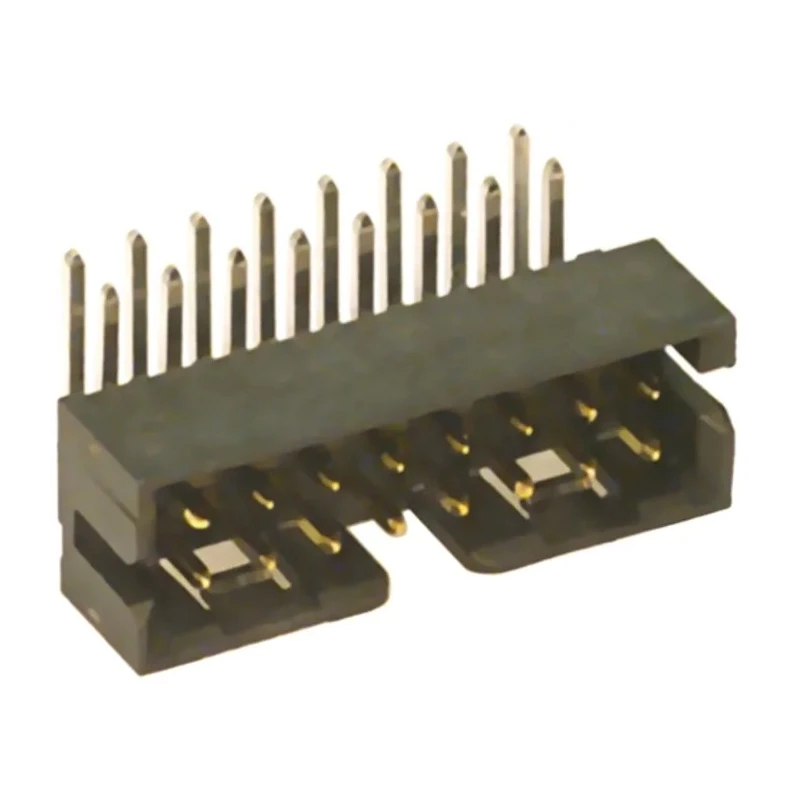

Molex Milli-Grid Series Right Angle Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded 87833-2020

Name: Molex Milli-Grid Series Right Angle Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded 87833-2020
Brand: Molex
SKU: 132139
Price: 2.94 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	Molex
Orientation	Right Angle
Current	2A
Mount Type	Through Hole
Contact Material	Phosphor Bronze
Series	Milli-Grid
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.16mm
Mating Pin Length	2mm

Key Features

High density 2.00 x 2.00 mm grid design enables compact PCB layouts.
Right angle orientation for secure and space-saving mounting.
Contacts made of phosphor bronze with gold plating ensure durability.
Shrouded design protects contacts from damage and prevents mismating.
Kinked solder tails and locating pegs provide robust PCB retention and ease of automated insertion.
Operating temperature range from -55°C to 105°C suitable for diverse environments.
Suitable for wire-to-board signal applications in printers, servers, automotive audio, security systems, and more.
Mating pin length of 2 mm and tail pin length of 2.16 mm for reliable solder connections.

Product Description

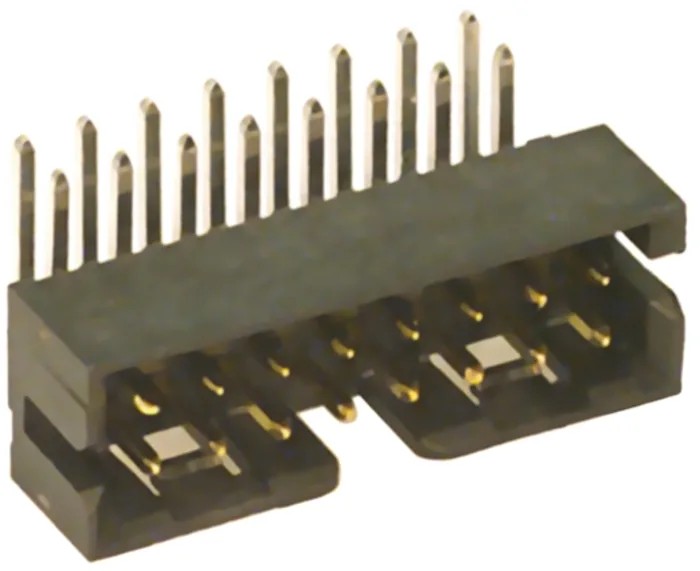

Molex 87833-2020 Milli-Grid Series Right Angle Through Hole PCB Header provides a reliable and high-density connection solution with 20 contacts arranged in 2 rows at a 2 mm pitch. Its shrouded design protects the contacts and prevents mismating by utilizing a center polarization slot that engages with a key on the mating connector. The right angle orientation allows for compact and efficient PCB board-to-wire connections.

The connector features phosphor bronze contacts with gold plating for enhanced conductivity and corrosion resistance. Kinked solder tails secure the header firmly to the PCB, supported by locating pegs that facilitate automatic insertion during manufacturing.

With an operating temperature range from -55°C up to 105°C and a voltage rating of 125 V, this PCB header is suitable for use in harsh industrial and commercial environments. Applications include printers, fax machines, copiers, servers, routers, automotive audio, GPS systems, security alarms, set-top boxes, and digital media players.

The Milli-Grid connector family offers flexibility with shrouded and unshrouded headers, single and dual row receptacles, housings, and terminals, all based on a compact 2 x 2 mm grid pattern that supports space-efficient designs.

High density 2.00 x 2.00 mm grid design enables compact PCB layouts. Shrouded contacts protect against damage and prevent mismating. Center polarization slot ensures correct connector alignment. Kinked solder tails and locating pegs provide secure, automated PCB assembly.

Phosphor bronze contact material with gold plating for durability and conductivity. Wide operating temperature range of -55°C to 105°C ensures reliability in diverse conditions. Right angle through hole mount facilitates space-saving PCB layouts.

This Molex PCB header is a trusted component in industrial, commercial, automotive, and consumer electronics applications. Explore more Molex Milli-Grid connectors on EnvMart for comprehensive board-to-board and cable-to-board interconnection solutions.
