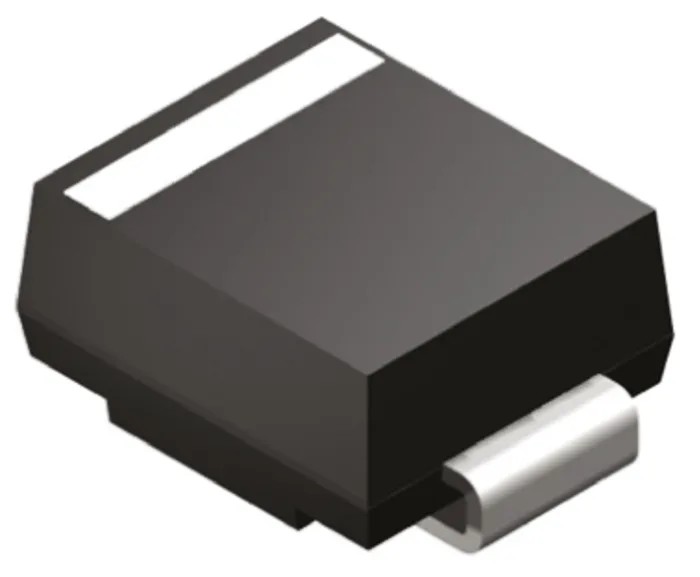

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W Power, Surface Mount DO-214 Package SMBJ10A-TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W Power, Surface Mount DO-214 Package SMBJ10A-TR

Name: STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W Power, Surface Mount DO-214 Package SMBJ10A-TR
Brand: STMicroelectronics
SKU: 132012
Price: 0.15 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	SMBJ10A-TR
Width	3.95mm
Mount Type	Surface
Series	SMBJ
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	21.7V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	11.1V
Maximum Reverse Stand-off Voltage Vwm	10V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	184A
Maximum Reverse Leakage Current	1μA

Key Features

Designed for uni-directional transient voltage suppression applications.
Supports peak pulse power dissipation of 600 watts.
Minimum breakdown voltage of 11.1 volts ensures effective protection.
Maximum reverse stand-off voltage of 10 volts suitable for surface mount circuits.
Operates reliably between -55°C to 150°C operating temperature range.
Maximum peak pulse current rating of 184 amps for transient conditions.
Low maximum reverse leakage current of 1 microampere ensuring minimal power loss.
Consists of a single diode element per chip with 2 pins for easy PCB mounting.

Product Description

STMicroelectronics SMBJ10A-TR is a high-performance 1-element uni-directional transient voltage suppression (TVS) diode designed for protecting sensitive electronic components from voltage spikes and transient surges. Packaged in a compact DO-214 surface mount package, this TVS diode offers a peak pulse power dissipation rating of 600 watts, making it suitable for a broad range of electronic circuits requiring transient overvoltage protection.

This diode features a minimum breakdown voltage of 11.1 volts and a maximum reverse stand-off voltage of 10 volts, making it effective in suppressing voltage spikes while maintaining circuit integrity. The device can operate reliably in harsh environments with an operating temperature range from -55°C to 150°C.

With a maximum peak pulse current of 184 amps and a clamping voltage of 21.7 volts, the SMBJ10A-TR ensures robust surge suppression performance. Low maximum reverse leakage current of 1 μA contributes to energy efficiency and minimal stray current in protected circuits.

The 2-pin configuration and surface mount DO-214 package facilitate easy integration into printed circuit boards, optimizing space without sacrificing protection capabilities. The product is a crucial component for industrial electronics, telecommunications, and power supply circuits, providing enhanced durability and protection.

Uni-directional transient voltage suppression. 600 W peak pulse power dissipation. Compact surface mount DO-214 package. High surge handling capacity at 184 A peak pulse current. Wide operating temperature range from -55°C to 150°C.

Low leakage current of 1 μA for efficient performance. Ideal for protecting sensitive electronics in industrial and commercial applications.

This STMicroelectronics TVS Diode is ideal for use in electronic manufacturing, industrial control systems, telecommunications equipment, and other applications where voltage spike protection is critical. It ensures product reliability and extends the lifespan of sensitive electronic devices.
