TE Connectivity Solistrand Uninsulated Ring Terminal M8 Stud Size 4 AWG Wire Size 33115

Free Delivery in India | Lowest Global Shipping Charges

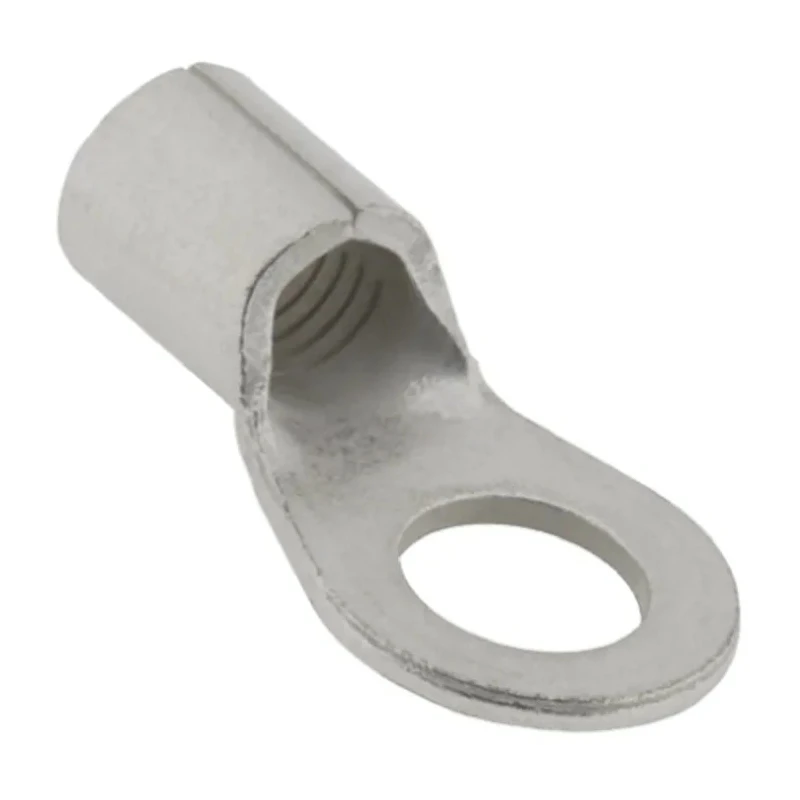

TE Connectivity Solistrand Uninsulated Ring Terminal M8 Stud Size 4 AWG Wire Size 33115

Name: TE Connectivity Solistrand Uninsulated Ring Terminal M8 Stud Size 4 AWG Wire Size 33115
Brand: TE Connectivity
SKU: 131980
Price: 3.27 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
THICKNESS	1.78mm
Model	33115
Insulation	Uninsulated
Overall Length	33.63mm
Contact Material	Copper
Series	Solistrand
Maximum Operating Temperature	170°C
Standards/Approvals	CSA LR7189, UL E13288, RoHS
Contact Plating	Tin
Minimum Wire Size mm²	16.8mm²
Maximum Wire Size mm²	26.7mm²
Minimum Wire Size AWG	4AWG
Outer Ring Diameter	15.88mm
Inner Ring Diameter	8.33mm
Stud Size	M8

Key Features

Constructed from fine grade high conductivity copper for optimal electrical performance.
Electro tin plating provides improved corrosion resistance.
Robust design ideal for harsh industrial environments.
Brazed seams increase barrel strength for durability.
Dimpled and serrated barrel maximizes tensile strength and electrical contact area.
Bell-shaped mouth on barrel facilitates easy and quick wire insertion.
Maximum operating temperature is 170°C, suitable for standard industrial applications.
Compatible with SOLISTRAND crimping tools for reliable conductor application.

Product Description

TE Connectivity 33115 Solistrand uninsulated ring terminal offers reliable electrical connections for demanding industrial and commercial applications. Featuring an M8 stud size and designed for 4 AWG wire size, this ring terminal ensures optimal electrical conductivity and mechanical strength.

Manufactured from fine grade high conductivity copper, this terminal is electro tin plated to enhance corrosion resistance and extend service life. The robust construction includes brazed seams that reinforce the barrel strength, making it suitable for challenging environments encountered in materials handling equipment, motors, heavy machinery, telecommunications, switchgear, and control instrumentation.

The barrel has a serrated inner surface designed to optimize electrical contact and tensile strength after crimping. The bell-shaped barrel entrance simplifies wire insertion and reduces installation time, supporting efficient assembly processes.

Key specifications include an outer ring diameter of 15.88mm, inner ring diameter of 8.33mm, and an overall length of 33.63mm with a thickness of 1.78mm. It is rated for a maximum operating temperature of 170°C, ensuring dependable performance across a wide range of industrial conditions.

These ring terminals are compatible with specialized SOLISTRAND crimping tools, allowing for precision and secure conductor attachment. Applications span from electrical panels and power supplies to telecommunications and heavy-duty industrial use.

Constructed from fine grade high conductivity copper for optimal electrical performance. Electro tin plating improves corrosion resistance. Robust design withstands harsh industrial environments. Brazed seams increase structural barrel strength.

Dimpled and serrated barrel for enhanced tensile strength and electrical contact. Bell-shaped barrel entrance allows quick wire insertion. Maximum operating temperature of 170°C for versatile industrial use. Compatible with SOLISTRAND crimping tools for secure installation.

Dimensions optimized for 4 AWG wire size and M8 stud size.

Ideal for industrial, electrical, and telecommunications applications, TE Connectivity SOLISTRAND Ring Terminals combine durability with high electrical efficiency for professional use. Browse the full range of Wire Terminals & Splices at EnvMart for comprehensive connectivity solutions.
