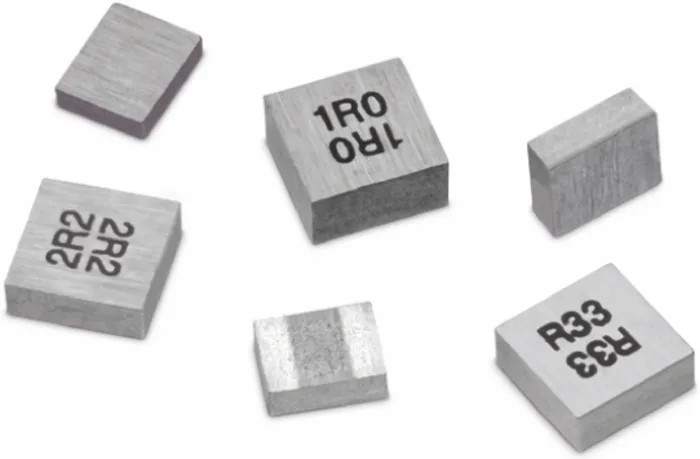

Wurth Elektronik WE-MAPI 3015 Wirewound Surface Mount Inductor Composite Iron Powder Core 1 μH ±20% 2.7A 72MHz 74438335010
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.5mm |
| Length | 3mm |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | WE-MAPI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Composite Iron Powder |
| Inductance | 1μH |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Package/Case | 3015 |
| Maximum DC Current | 2.7A |
| Maximum DC Resistance | 47mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 72MHz |
| Inductor Construction | Moulded |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a composite iron powder core for enhanced performance.
- Moulded inductor construction ensures reliability and durability.
- Features a compact 3015 package case measuring 3mm x 3mm x 1.5mm.
- Supports a maximum self-resonant frequency of 72 MHz for high-frequency applications.
- Compliant with automotive standard AEC-Q200 covering -40°C to 125°C operating temperature.
- Designed for surface mount termination style enabling easy PCB assembly.
- Low maximum DC resistance of 47mΩ reduces power loss in circuits.
- Meets IPC/JEDEC J-STD-020D standards for environmental compliance.
Product Description
Wurth Elektronik 74438335010 Wirewound Surface Mount Inductor is part of the WE-MAPI series featuring a composite iron powder core and moulded construction that provide superior magnetic performance and mechanical robustness. With an inductance of 1 μH and tolerance of ±20%, this inductor supports a maximum DC current of 2.7 A, making it suitable for demanding electronic power management applications.
The compact 3015 case dimensions (3mm length x 3mm depth x 1.5mm height) and surface mount termination style facilitate efficient PCB assembly and space-saving designs. The device operates reliably across a wide temperature range from -40°C to 125°C and complies with automotive grade AEC-Q200 standards, ensuring suitability for automotive and industrial environments.
Its maximum self-resonant frequency of 72 MHz enables use in high-frequency switching regulators and DC/DC converters, including FPGA and POL converter circuits. The low DC resistance of 47 mΩ minimizes energy loss, contributing to overall system efficiency.
Applications include portable devices such as PDAs, digital cameras, smartphones, tablets, and wireless communication equipment. The inductor offers excellent low acoustic noise and minimal leakage flux noise, enhancing performance in sensitive electronic systems.
The product meets IPC/JEDEC J-STD-020D standards and originates from Korea, Republic Of. Packaging is provided in Tape & Reel format, supporting automated manufacturing processes. Constructed with composite iron powder magnetic core for high efficiency.
Manufactured in a moulded format ensuring mechanical strength. 1 μH inductance with ±20% tolerance suitable for power supplies. Surface mount 3015 package enables compact PCB layout. Supports automotive standards and wide temperature range.
Low DC resistance of 47 mΩ reduces circuit losses. High maximum self-resonant frequency of 72 MHz. Ideal for use in DC/DC converters and portable electronics. Packaged in Tape & Reel for production efficiency. Explore our Electronics Components category for more Surface Mount Inductors and related products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 μH with a tolerance of ±20%.
It supports a maximum DC current of 2.7 A, making it suitable for various electronic applications.
The dimensions of the 3015 package case are 3mm in length, 3mm in depth, and 1.5mm in height.
The maximum self-resonant frequency is 72 MHz, allowing its use in high-frequency applications.
It operates reliably within a temperature range of -40°C to 125°C.
This inductor features a surface mount termination style, facilitating easy PCB assembly.
It is constructed using a moulded design with a composite iron powder core for enhanced performance.
It complies with automotive standard AEC-Q200 and IPC/JEDEC J-STD-020D for environmental compliance.
The maximum DC resistance is 47 mΩ, which helps reduce power loss in circuits.
This model is suitable for use in DC/DC converters and portable electronics such as PDAs, smartphones, and digital cameras.
It is packaged in Tape & Reel format, supporting automated manufacturing processes.
The inductor originates from Korea, Republic Of.
