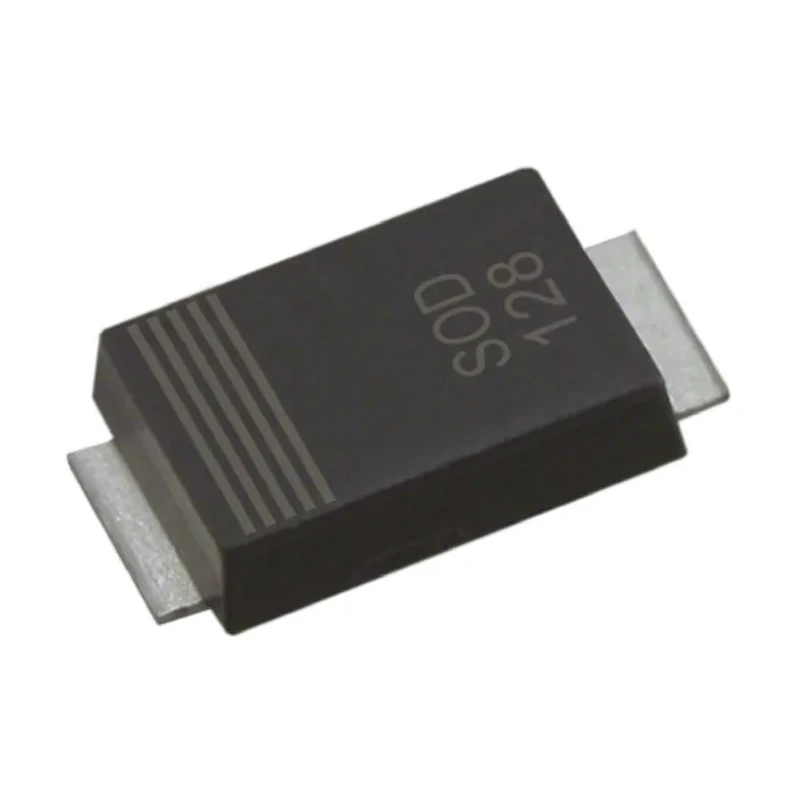

Nexperia 1-Element Uni-Directional TVS Diode 600 W 2-Pin SOD-128 PTVS5V0P1UP,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PTVS5V0P1UP,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PTVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 62A |
| Maximum Reverse Leakage Current | 400μA |
Key Features
- Uni-directional diode designed for transient over voltage protection.
- Peak pulse power dissipation of 600 W for high energy absorption.
- Compact SOD-128 surface mount package with 2 pins.
- Clamping voltage of 9.2 V ensures effective voltage suppression.
- Operating temperature range from -55°C to 150°C for wide industrial applications.
- Minimum breakdown voltage of 6.4 V with a maximum reverse stand-off voltage of 5 V.
- Test current of 10 mA and maximum peak pulse current of 62 A for safety and reliability.
- Automotive AEC-Q101 standard compliant ensuring quality and durability.
Product Description
Nexperia PTVS5V0P1UP,115 is a 1-element uni-directional transient voltage suppressor diode rated at 600 W, housed in a 2-pin SOD-128 surface mount package. It is engineered to provide robust transient over voltage protection in electronic circuits and systems operating within a voltage range where low capacitance and small footprint are critical.
This TVS diode features a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V, offering reliable suppression of sudden voltage spikes. With a clamping voltage of 9.2 V, it effectively clamps voltage surges, safeguarding sensitive components from transient electrical events.
The diode supports peak pulse power dissipation of 600 W and peak pulse current up to 62 A, designed to withstand high-energy transient conditions. It operates efficiently within a broad temperature range from -55°C to 150°C, making it suitable for demanding industrial, automotive, and electronic applications.
Its compact SOD-128 package with a height of 1.1 mm, length of 4 mm, and width of 2.7 mm suits high-density surface mount PCB layouts. The device complies with the automotive standard AEC-Q101, indicating stringent quality and reliability adherence for automotive electronic environments.
Uni-directional transient voltage suppression for effective surge protection. 600 W peak pulse power dissipation for high transient energy handling. SOD-128 surface mount packaging for compact electronic designs. Wide operating temperature range accommodates harsh industrial conditions.
Low maximum reverse leakage current enhances circuit efficiency. Automotive-grade quality with AEC-Q101 certification. Fast response time to transient events ensures component safety. Ideal for use in electronic equipment, automotive systems, and industrial controls.
Designed to improve reliability and longevity of sensitive electronic components.
This Nexperia TVS diode is part of the PTVSxP1 series, providing standardized transient voltage suppression solutions. It is essential for designers seeking high-performance ESD and transient protection in constrained PCB footprints and high-density applications.
Explore more options in TVS Diodes and semiconductor components on EnvMart to enhance your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Nexperia PTVS5V0P1UP,115 is 600 W, allowing it to handle high-energy transient conditions effectively.
The clamping voltage of this diode is 9.2 V, which helps in effectively clamping voltage surges to protect sensitive components.
This model operates efficiently within a temperature range of -55°C to 150°C, making it suitable for various industrial applications.
The SOD-128 package of this diode has a height of 1.1 mm, a length of 4 mm, and a width of 2.7 mm, which is compact for high-density PCB layouts.
The maximum reverse stand-off voltage for the Nexperia PTVS5V0P1UP,115 is 5 V, ensuring reliable voltage suppression.
The minimum breakdown voltage of this model is 6.4 V, which is critical for its operation in transient voltage suppression.
This diode can handle a maximum peak pulse current of 62 A, providing safety and reliability during transient events.
The Nexperia PTVS5V0P1UP,115 complies with the automotive AEC-Q101 standard, ensuring quality and reliability for automotive applications.
This model features a 2-pin configuration, suitable for surface mount applications.
The test current for the Nexperia PTVS5V0P1UP,115 is 10 mA, which is used for evaluating its performance under specified conditions.
This model utilizes a single uni-directional diode configuration, designed for effective transient voltage suppression.
The maximum reverse leakage current for this diode is 400 μA, which enhances circuit efficiency during operation.
