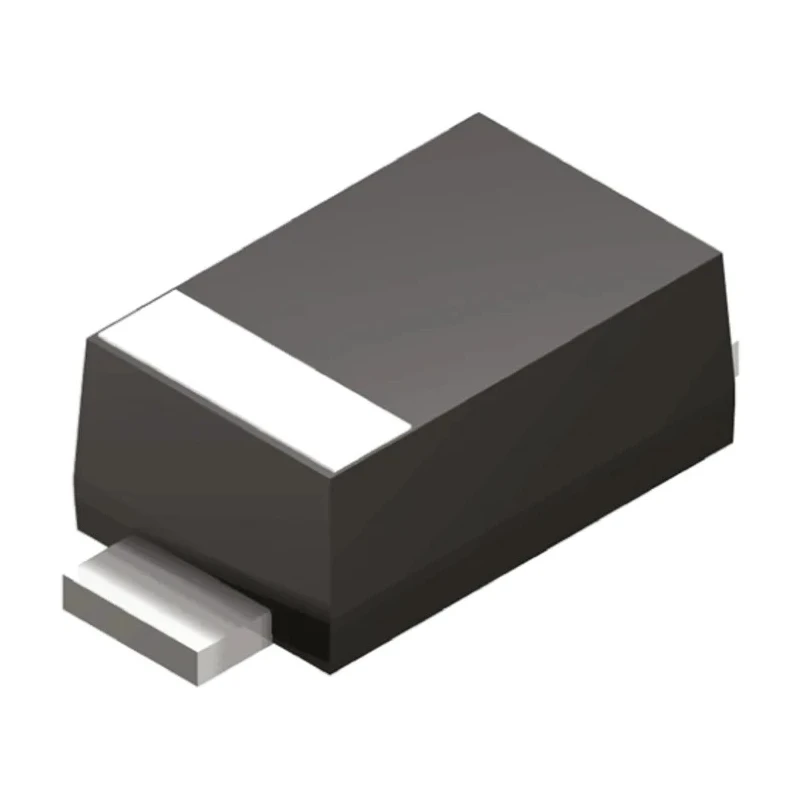

Nexperia 1-Element Uni-Directional TVS Diode Surface Mount SOD-123 400W Peak Pulse Power PTVS24VS1UR,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PTVS24VS1UR,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PTVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 38.9V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 10.3A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Uni-directional diode designed for transient voltage suppression.
- Peak pulse power dissipation of 400W ensures high surge capability.
- Compact SOD-123 surface mount package with 2 pins for efficient PCB assembly.
- Operating temperature range from -55°C to 150°C for versatile applications.
- Low clamping voltage of 38.9V provides effective voltage spike absorption.
- Complies with AEC-Q101 automotive standard for reliability.
- Minimal leakage current of 100nA enhances circuit stability.
- Wide breakdown voltage of 26.7V suitable for protecting 24V systems.
Product Description
Nexperia PTVS24VS1UR,115 is a single-element uni-directional Transient Voltage Suppressor (TVS) diode designed for protection against transient electrical surges in sensitive electronic circuits. Packaged in a low-profile SOD-123 surface mount device with 2 pins, this diode delivers a peak pulse power dissipation of 400W, making it suitable for robust defense against voltage spikes up to 24V system voltage levels.
With a breakdown voltage of 26.7V and a clamping voltage of 38.9V, the PTVS24VS1UR,115 provides effective voltage clamping to safeguard components from transient voltage transients. The diode features a maximum peak pulse current of 10.3A, allowing it to absorb high energy surges typically encountered in automotive, industrial, and electronic equipment applications.
Operating reliably over a wide temperature range from -55°C to 150°C, it suits harsh environmental conditions. The device is recognized for meeting the stringent AEC-Q101 automotive qualification, ensuring its use in automotive systems.
The minimal reverse leakage current (100nA) helps maintain circuit performance during normal operation without contributing to power losses.
Ideal for use in transient overvoltage protection for power supply lines, automotive electronics, industrial control systems, and communication devices, the Nexperia PTVS24VS1UR,115 diode enhances circuit reliability and longevity by preventing damage due to voltage spikes.
Uni-directional diode for transient voltage suppression. 400W peak pulse power dissipation in compact SOD-123 package. Operating temperature range from -55°C to 150°C. Low clamping voltage of 38.9V for effective protection.
AEC-Q101 automotive standard compliant. Extremely low leakage current ensures efficient circuit stability. Peak pulse current of 10.3A for robust surge absorption. Single element per chip design for enhanced reliability.
Surface mount package enables easy PCB assembly. Suitable for industrial, automotive, and electronic applications. Browse our extensive range of semiconductor components on EnvMart for reliable electronic protection solutions.
Explore more products in our TVS Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PTVS24VS1UR,115 has a peak pulse power dissipation of 400W, making it suitable for robust protection against voltage spikes.
The minimum breakdown voltage of this model is 26.7V, which is suitable for protecting 24V systems.
The clamping voltage for this diode is 38.9V, providing effective voltage spike absorption.
This diode can handle a maximum peak pulse current of 10.3A, allowing it to absorb high energy surges.
The operating temperature range for this model is from -55°C to 150°C, making it suitable for harsh environmental conditions.
It comes in a compact SOD-123 surface mount package with 2 pins for efficient PCB assembly.
Yes, the PTVS24VS1UR,115 complies with the AEC-Q101 automotive standard for reliability.
The maximum reverse leakage current for this model is 100nA, which enhances circuit stability during normal operation.
This model features a single element per chip design, which enhances reliability.
The SOD-123 package has a height of 1.1mm and a width of 1.9mm.
This diode is suitable for transient overvoltage protection in power supply lines, automotive electronics, industrial control systems, and communication devices.
The diode is uni-directional, designed specifically for transient voltage suppression.
