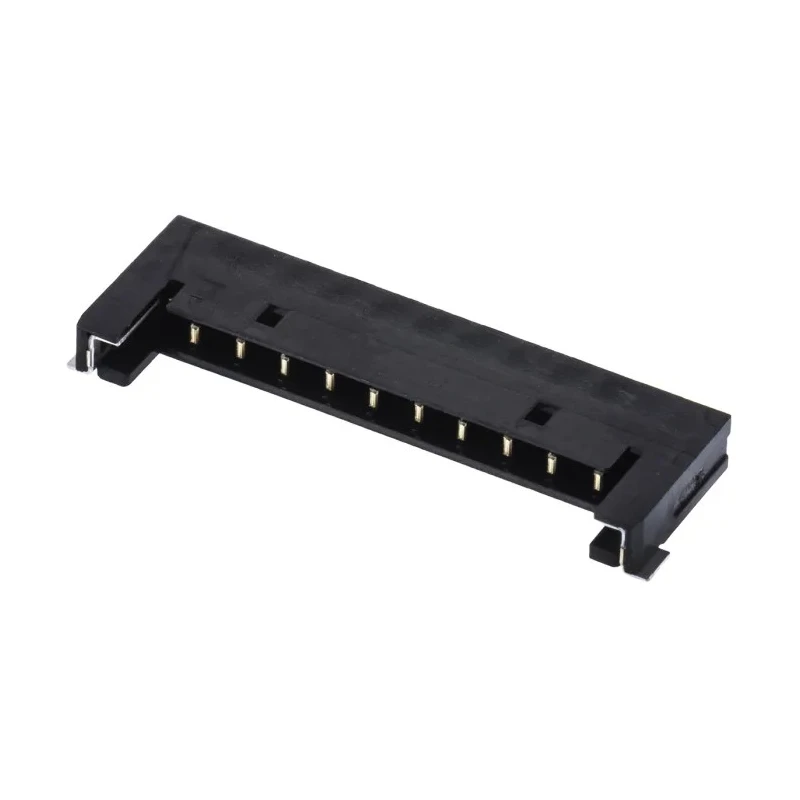

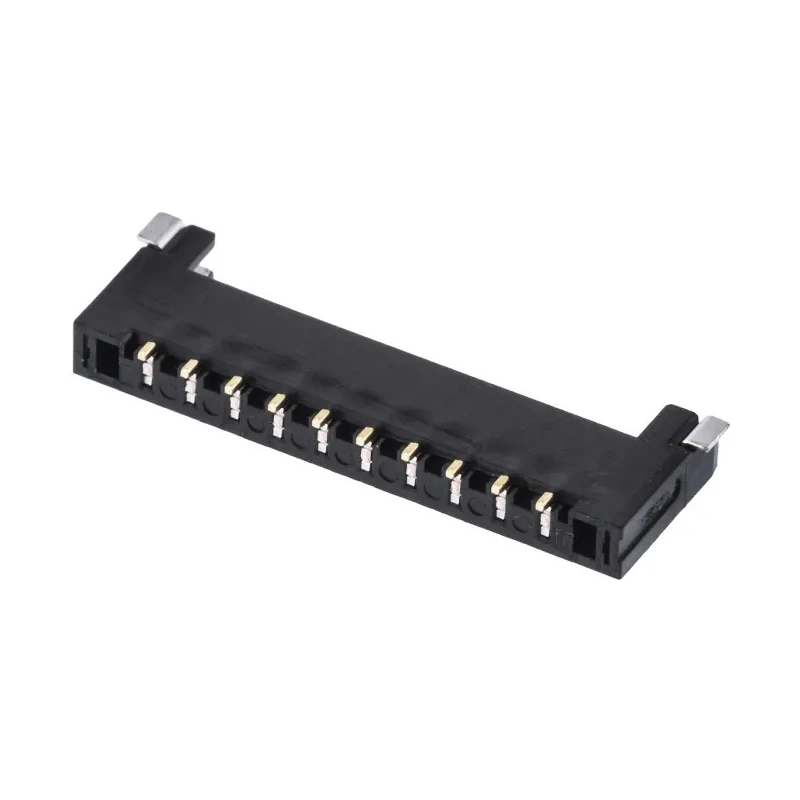

Molex Pico-Lock Series Right Angle Surface PCB Header, 10 Contact, 1.5 mm Pitch, 1 Row, Shrouded 504050-1091
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 150V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Copper |
| Contact Material | Copper Alloy |
| Series | Pico-Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a right angle orientation for low-profile PCB mounting.
- Includes 10 gold-plated contact pins ensuring durable signal integrity.
- 1.5 mm pitch spacing suitable for compact electronic layouts.
- Shrouded housing enhances contact protection and alignment.
- Constructed from copper alloy contacts and copper housing materials.
- Supports a continuous current rating of 3A at up to 150V.
- Surface mount technology suitable for automated PCB assembly.
- Operates reliably in a temperature range from -40°C to 105°C.
Product Description
Molex 504050-1091 Pico-Lock Series Right Angle Surface PCB Header is engineered for demanding electronic assembly applications. This PCB header features 10 contacts arranged in a single row with a compact 1.5 mm pitch, optimized for space-saving wire-to-board connections. The right angle orientation and shrouded design provide secure mating and protection against misalignment and damage in high-density circuits.
The contacts are gold-plated copper alloy, offering excellent electrical conductivity and resistance to corrosion. Copper housing ensures mechanical stability and durability under repeated mating cycles. The header supports a nominal current rating of 3 amps at voltages up to 150V, making it suitable for low to medium power applications.
Designed to meet UL94V-0 flammability rating, the header also complies with RoHS and Low-Halogen standards, ensuring environmental friendliness and safety. Its operational temperature range from -40°C to 105°C allows deployment in various industrial, commercial, and consumer electronics contexts.
The surface mount termination style facilitates efficient automated PCB assembly, while the positive locking design with top friction locks, wide solder tabs, and polarization guide ribs guarantees secure connection integrity.
Right angle orientation with shrouded housing for secure PCB connection. 10 gold-plated copper alloy contacts with 1.5 mm pitch. Supports 3A current at 150V nominal voltage. UL94V-0 rated material with RoHS and Low-Halogen compliance.
Operating temperature range of -40°C to 105°C for harsh environments. Surface mount technology compatible with automated machines. Includes wide solder tabs and PCB retention nails for mechanical stability. Designed for applications in electronics manufacturing, industrial equipment, and instrumentation.
Package contains a Reel of right angle PCB headers with 10 contacts each, ensuring readiness for high-volume production use. Explore more PCB Headers and electronic connectors in the Molex range at EnvMart for tailored electronic assembly solutions.
