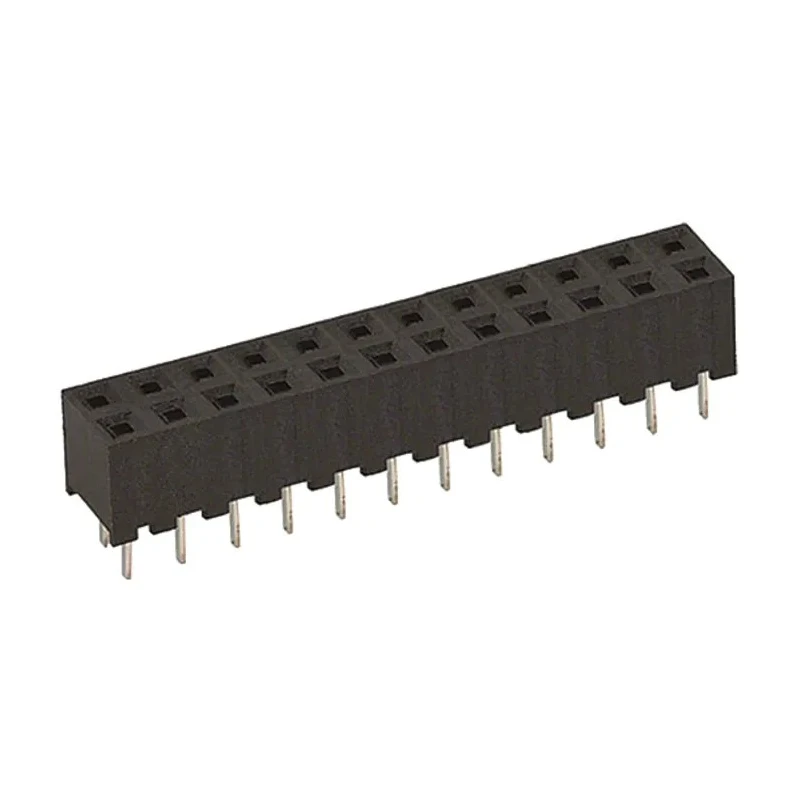

Hirose A3C Series Straight Through Hole PCB Socket 24-Contact 2 Row 2 mm Pitch Solder A3C-24DA-2DSA(71)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | A3C-24DA-2DSA(71) |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | A3C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Stacking Height | 5.1mm |
Key Features
- Features a current rating of 12A ensuring reliable performance.
- Constructed with Polybutylene Terephthalate housing for durability and stability.
- Designed for through-hole mount with a stacking height of 5.1 mm.
- Operating temperature range from -55°C to 85°C suitable for various environments.
- Contacts are made from bronze and plated with gold for enhanced conductivity and corrosion resistance.
- Compact miniature 2 mm pitch design suited for high-density PCB layouts.
- Female contact gender configured for wire-to-board connections.
Product Description
Hirose A3C-24DA-2DSA(71) Straight Through Hole PCB Socket is a high-quality miniature PCB socket designed for reliable wire-to-board connections. The connector features 24 female contacts arranged in 2 rows with a 2 mm pitch, mounted through hole for firm attachment to PCBs. It has a stacking height of 5.1 mm and is housed in durable Polybutylene Terephthalate (PBT), offering excellent mechanical strength and chemical resistance.
This PCB Socket is rated for a current capacity of 12 amperes and can handle voltages up to 200 V AC, making it well-suited for electronic components in video equipment, communication devices, test rigs, and other industrial applications. It operates reliably within a temperature range of -55°C to +85°C, ensuring performance in varied environmental conditions.
The contacts are made from bronze and plated with gold, enhancing conductivity and providing corrosion resistance for long-term use. The straight orientation and through-hole mounting facilitate easy soldering during PCB assembly.
Hirose’s A3C series connectors are miniature and lightweight, specialized for applications requiring dense contact arrangements in limited space. These connectors are ideal in laboratory, industrial, manufacturing, and commercial electronic assemblies. The precise 2 mm pitch design supports fine pitch PCB layouts without compromising durability.
Current rating of 12 A for reliable electrical load handling. Robust PBT housing ensures stability and resistance to chemicals. Operating temperature range from -55°C to +85°C for versatile environments. Gold-plated bronze contacts provide excellent signal integrity and corrosion resistance.
Compact 2 mm pitch supports high-density PCB designs. Through-hole mounting with straight orientation for secure solder connections. Ideal for video, communications, test rigs, and other electronic equipment. Manufactured in Japan to high-quality standards.
Explore more Hirose connectors and electronic components in the Electronics Components category of EnvMart for high-performance industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A, ensuring reliable performance for electrical load handling.
The Hirose A3C-24DA-2DSA(71) is rated for a maximum voltage of 200V AC.
The housing is made from Polybutylene Terephthalate (PBT), while the contacts are made from bronze and plated with gold for enhanced conductivity and corrosion resistance.
The stacking height of the A3C-24DA-2DSA(71) is 5.1 mm, suitable for compact PCB layouts.
It operates reliably within a temperature range of -55°C to +85°C, making it suitable for various environments.
This model features 24 female contacts arranged in 2 rows with a 2 mm pitch.
The connector is designed for through-hole mounting, providing a secure attachment to PCBs.
The contact gender of the A3C-24DA-2DSA(71) is female, configured for wire-to-board connections.
The contacts are arranged with a pitch size of 2 mm, suitable for high-density PCB layouts.
This connector has a straight orientation, facilitating easy soldering during PCB assembly.
The A3C-24DA-2DSA(71) is manufactured in Japan, adhering to high-quality standards.
This model is suitable for use in video equipment, communication devices, test rigs, and other industrial applications.
