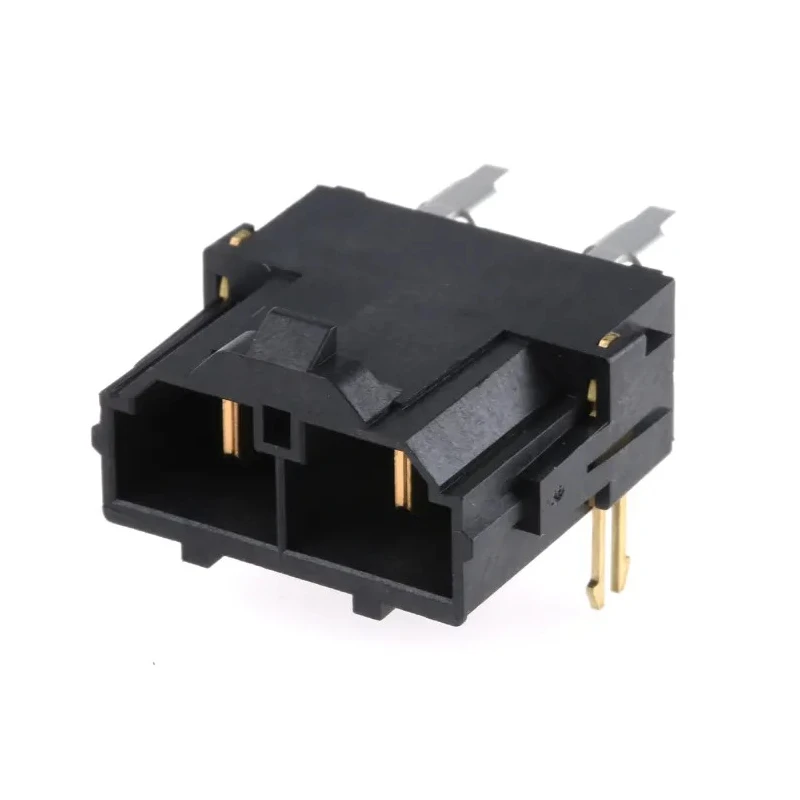

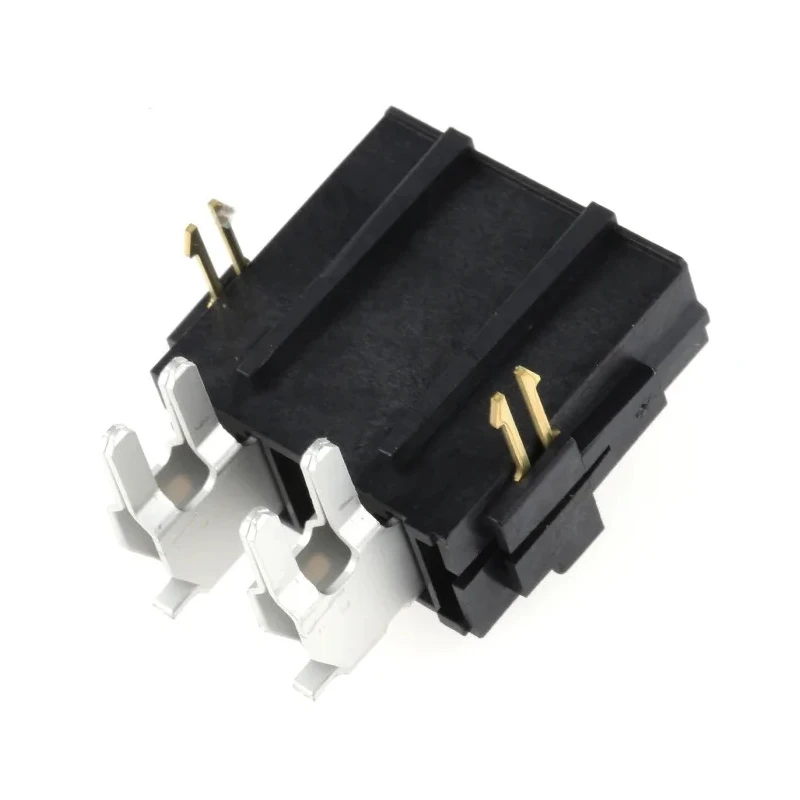

Molex Mini-Fit Sr Series Right Angle Through Hole PCB Header 2 Contacts 10 mm Pitch 1 Row Shrouded 42820-2223
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 50A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Mini-Fit Sr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 10mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| 428xx-x2x2 | Tin plated contact area |
| 428xx-x2x3 | Gold plated contact area |
| 428xx-x21x | 1.57 mm nominal PCB thickness |
| 428xx-x22x | 2.36 mm nominal PCB thickness |
| 428xx-x23x | 3.18 mm nominal PCB thickness |
| 428xx-x24x | 6.35 mm nominal PCB thickness |
Key Features
- Features gold-plated brass contacts ensuring excellent conductivity.
- Designed for a maximum current rating of 50A for reliable power transmission.
- Mount type is through-hole with right angle orientation for efficient PCB layout.
- Housing made of durable thermoplastic material with a shrouded design for safety.
- Operates reliably from -40°C to 105°C, suitable for industrial environments.
- Provides a voltage rating of up to 600V for robust applications.
- Termination type is solder, providing secure and stable electrical connections.
- Male contact gender for compatibility with female receptacle housings.
Product Description
Molex 42820-2223 Mini-Fit Sr Series Right Angle Through Hole PCB Header is a high-quality connector designed for robust wiring applications. This connector features 2 gold-plated brass contacts arranged in a single row with a 10 mm pitch, enabling excellent current capacity of up to 50A and voltage rating of 600V. The thermoplastic housing is shrouded for secure mating, and the right angle orientation optimizes PCB layout and wire management.
The connector is termination-ready with solder pins, making it ideal for wire-to-board assemblies in demanding industrial, electronic, and manufacturing environments. It supports a wide temperature range from -40°C to 105°C, making it reliable in harsh operating conditions. The male contact gender allows versatility in mating with various cable receptacles.
This PCB header is manufactured in Mexico and adheres to rigorous quality standards, although it lacks specific certifications. The Mini-Fit Sr series is well-suited for power distribution, electronic manufacturing, and other industrial applications requiring secure and durable wire-to-board connections.
Gold-plated brass contacts provide corrosion resistance and excellent conductivity. Durable thermoplastic housing with a shrouded design enhances connector protection. Right angle, through-hole mounting facilitates versatile PCB integration.
Designed for 50A current and 600V voltage for high power applications. Wide operational temperature range supports industrial use cases. Solder termination ensures robust and reliable soldered connections. Compact 10 mm pitch and 2-contact single row design optimize space usage.
Male contact gender facilitates compatible mate options.
This connector is ideal for industrial, electronic, manufacturing, and power distribution applications requiring a high-quality PCB header solution. Explore additional Molex PCB connectors and related products for comprehensive solutions at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 50A, ensuring reliable power transmission for various applications.
It is rated for a voltage of up to 600V, making it suitable for robust applications.
The connector features solder termination, providing secure and stable electrical connections.
It operates reliably within a temperature range of -40°C to 105°C, suitable for industrial environments.
This unit has 2 contacts arranged in a single row, with a 10 mm pitch.
The housing is made of durable thermoplastic material, designed for safety and protection.
This model features a right angle orientation, optimizing PCB layout and wire management.
This PCB header is manufactured in Mexico, adhering to rigorous quality standards.
It supports a wire-to-board connector system, suitable for various electronic applications.
The contact gender of this connector is male, allowing compatibility with female receptacle housings.
The contacts are gold-plated brass, ensuring excellent conductivity and corrosion resistance.
The shrouded design enhances connector protection, ensuring secure mating and reducing the risk of accidental disconnection.
