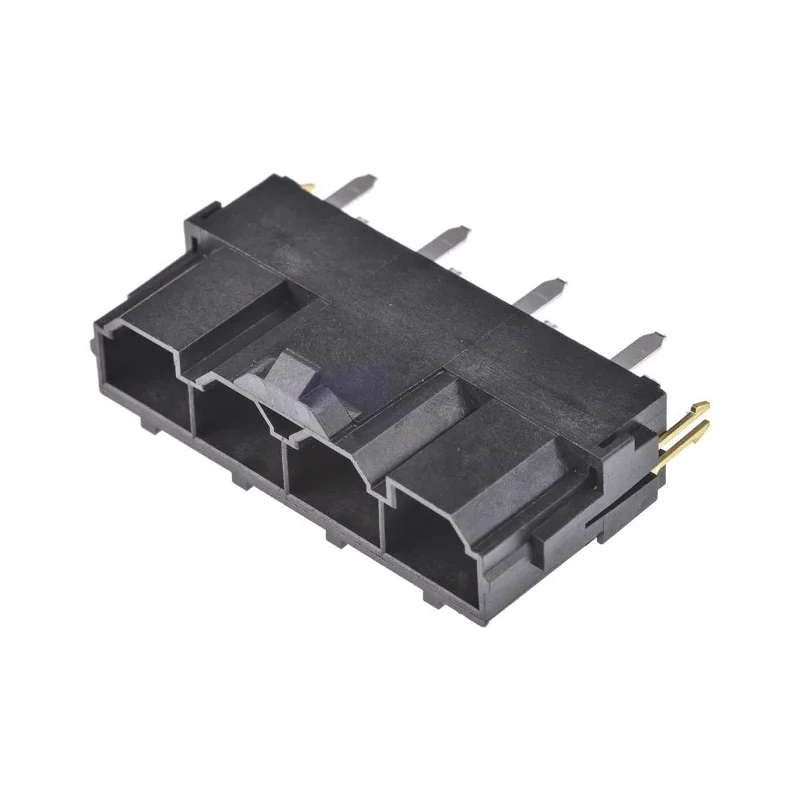

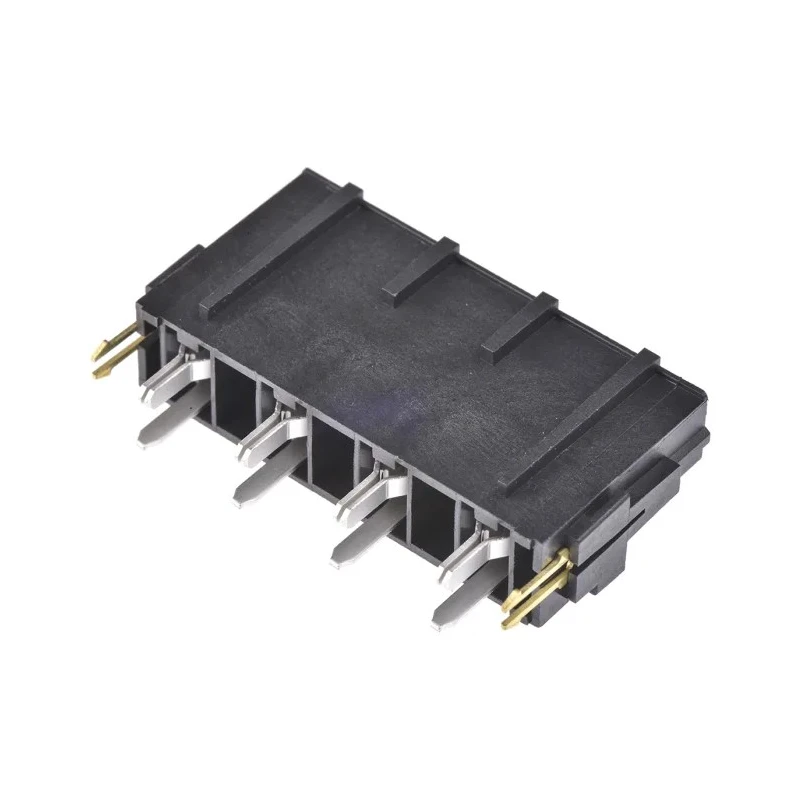

Molex Mini-Fit Sr Series Straight Through Hole PCB Header, 4 Contacts, 10 mm Pitch, 1 Row, Shrouded 42819-4223
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 50A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Mini-Fit Sr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 10mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| 428xx-x2x2 | Tin plated contact area |
| 428xx-x2x3 | Gold plated contact area |
| 428xx-x21x | 1.57 mm nominal PCB thickness |
| 428xx-x22x | 2.36 mm nominal PCB thickness |
| 428xx-x23x | 3.18 mm nominal PCB thickness |
| 428xx-x24x | 6.35 mm nominal PCB thickness |
Key Features
- This PCB header supports a maximum current of 50A.
- Features a thermoplastic housing and brass contacts plated with gold for reliable conductivity.
- Designed for through-hole mounting and solder termination.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Supports a voltage rating of 600V with a straight connector orientation.
- Male contact gender ensures compatibility with female connectors.
- Manufactured in Mexico with high-quality standards.
- The connector is shrouded to protect contacts and enhance durability.
Product Description
Molex 42819-4223 Mini-Fit Sr Series Straight Through Hole PCB Header is a high-performance connector designed for wire-to-board applications requiring secure and durable electrical connections. Featuring 4 male contacts in a single row with a 10 mm pitch, this PCB header supports currents up to 50A and voltages up to 600V, making it suitable for demanding industrial and electronic use cases.
The connector housing is made of thermoplastic material, providing excellent insulation and durability. The contacts are constructed from brass and plated with gold to ensure superior conductivity and resistance to corrosion. This model uses a through-hole mount type and solder termination, ideal for stable mounting on printed circuit boards.
Operating reliably within a wide temperature range of -40°C to 105°C, the Molex Mini-Fit Sr header is designed to withstand harsh environmental conditions. Its shrouded design offers protection to contacts, preventing damage and ensuring longevity during installation and operation.
Manufactured in Mexico, this product meets stringent quality standards and is widely used in industrial electronics, manufacturing equipment, and power distribution systems. It is compatible with matching cable receptacle housings for wire-to-board connectivity.
This PCB header supports a maximum current of 50A. Features a thermoplastic housing and brass contacts plated with gold for reliable conductivity. Designed for through-hole mounting and solder termination. Operates reliably in temperatures ranging from -40°C to 105°C.
Supports a voltage rating of 600V with a straight connector orientation. Male contact gender ensures compatibility with female connectors. Manufactured in Mexico with high-quality standards. The connector is shrouded to protect contacts and enhance durability.
Suitable for industrial and electronic component applications requiring robust wire-to-board connections. Explore more PCB Headers and connectors at EnvMart for your electronics and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 50A.
It has a voltage rating of 600V, making it suitable for high-voltage applications.
This model is designed for through-hole mounting, allowing for stable installation on printed circuit boards.
The contacts are arranged with a pitch of 10 mm.
The housing is made from thermoplastic material, and the contacts are brass plated with gold for improved conductivity.
It operates reliably in temperatures ranging from -40°C to 105°C.
This model features 4 male contacts in a single row.
It uses solder termination for secure connections.
Yes, this model is shrouded to protect the contacts and enhance durability.
It is manufactured in Mexico, adhering to high-quality standards.
The contact gender is male, ensuring compatibility with female connectors.
It is suitable for industrial and electronic component applications requiring robust wire-to-board connections.
