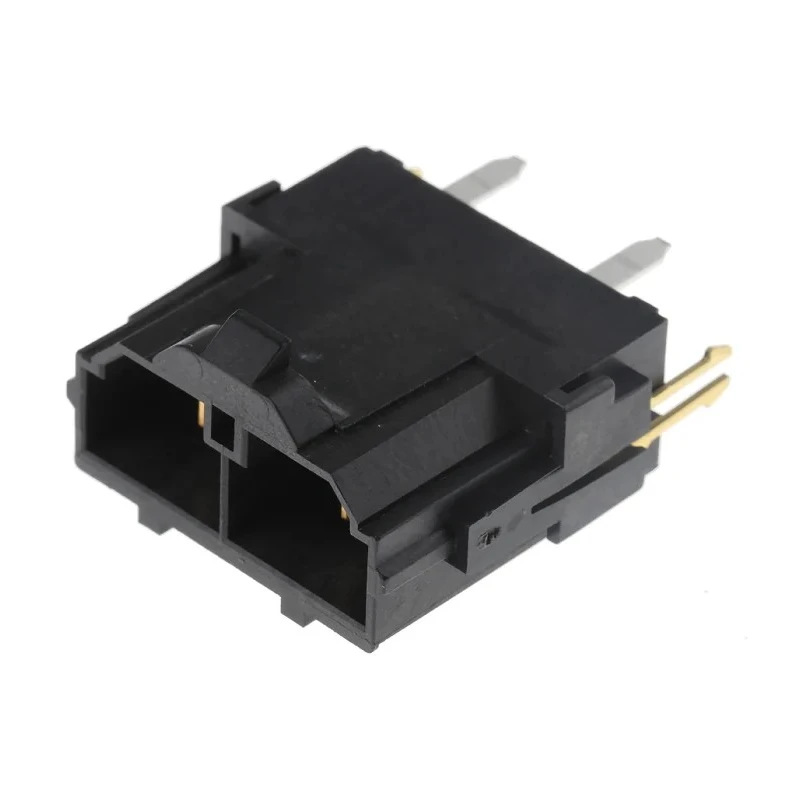

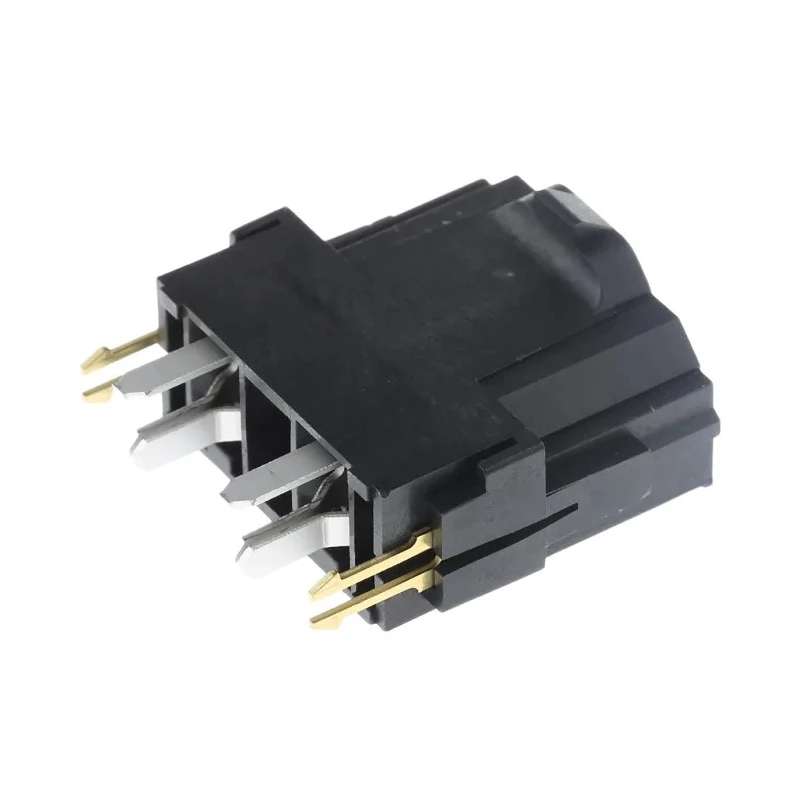

Molex Mini-Fit Sr Series Straight Through Hole PCB Header 2 Contact, 10 mm Pitch, 1 Row, Shrouded 42819-2223
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 50A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Mini-Fit Sr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 10mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| 428xx-x2x2 | Tin plated contact area |
| 428xx-x2x3 | Gold plated contact area |
| 428xx-x21x | 1.57 mm nominal PCB thickness |
| 428xx-x22x | 2.36 mm nominal PCB thickness |
| 428xx-x23x | 3.18 mm nominal PCB thickness |
| 428xx-x24x | 6.35 mm nominal PCB thickness |
Key Features
- Rated current of 50A ensures high power capacity.
- Constructed with brass contacts plated in gold for durability and conductivity.
- Thermoplastic housing provides electrical insulation and mechanical support.
- Designed for through-hole mounting on PCBs with a row pitch of 10mm.
- Operates reliably within a temperature range of -40°C to 105°C.
- Male contact gender offers secure mating with compatible female connectors.
- Supports voltages up to 600V suitable for power applications.
- Shrouded design protects contacts and prevents incorrect mating.
Product Description
Molex 42819-2223 Mini-Fit Sr Series Straight Through Hole PCB Header features 2 male contacts arranged in a single row with a 10 mm pitch. This robust connector provides a wire-to-board solution suitable for power and electronic applications requiring up to 50A current and 600V voltage ratings.
The header is constructed with thermoplastic housing material that ensures electrical insulation and mechanical stability. Its brass contacts plated with gold assure excellent conductivity and resistance against corrosion, while the shrouded configuration enhances connection security and contacts protection.
Designed specifically for through-hole PCB mounting, this connector supports a row pitch of 10 mm and is compatible with various PCB thicknesses as per the Mini-Fit Sr series standards.
Operating reliably between -40°C to 105°C, it is suitable for demanding industrial, electrical, and commercial applications where durable and safe power connections are essential. Rated current capacity of 50A for high power transmission.
Gold plated brass contacts for longevity and performance. Thermoplastic housing provides robust insulation and mechanical strength. Through-hole mount type ensures stable PCB attachment. Shrouded male contact design improves connection integrity and prevents damage.
Voltage rating up to 600V, adaptable for power supply needs. Compatible with Mini-Fit Sr series cable receptacle housings for wire-to-board applications. Manufactured in Mexico with strict quality controls.
Commonly used in electronic components, power distribution systems, and industrial machinery interfaces, this PCB header supports reliable electrical connections in assembly lines and manufacturing environments.
Discover a broad range of high-performance connectors and electronic components within the Molex brand and the PCB Headers category at EnvMart to meet diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current capacity of 50A, making it suitable for high power applications.
It supports voltages up to 600V, suitable for various power applications.
The contacts are arranged with a pitch of 10 mm, designed for through-hole mounting.
The header features brass contacts plated in gold for conductivity, and a thermoplastic housing for insulation and mechanical support.
It operates reliably within a temperature range of -40°C to 105°C.
This unit has 2 male contacts arranged in a single row.
Yes, it is specifically designed for through-hole mounting on PCBs.
It uses a solder termination type for secure connections.
The shrouded design protects the contacts and prevents incorrect mating, enhancing connection security.
This PCB header is manufactured in Mexico.
It is commonly used in electronic components, power distribution systems, and industrial machinery interfaces.
This model utilizes a wire-to-board connector system, suitable for various applications.
