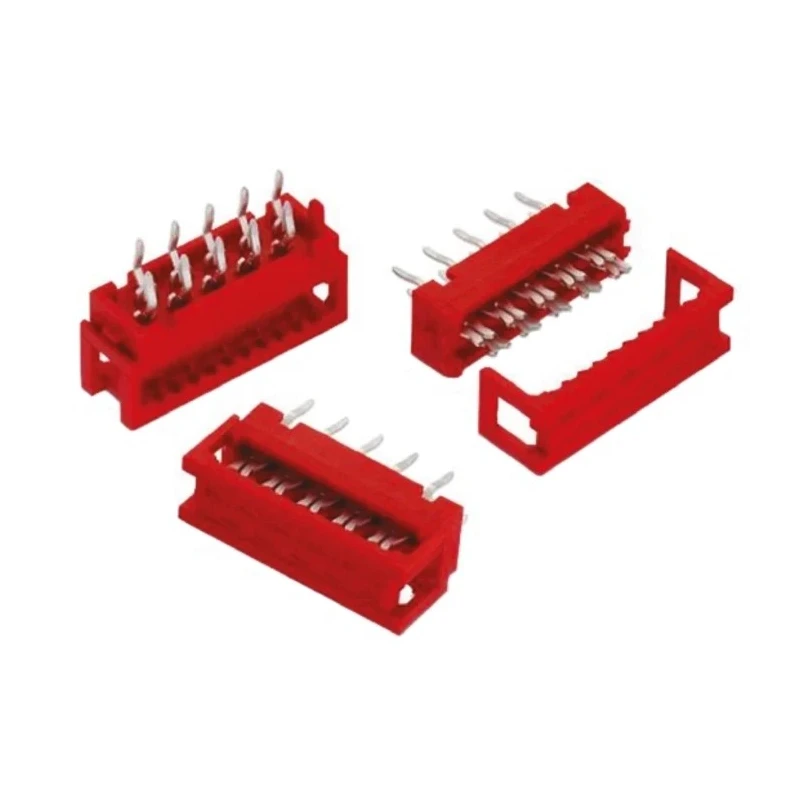

Wurth Elektronik 12-Way IDC Connector Male for Through Hole, 2 Row, 1A Current, 250V Voltage 690207101272
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Features 12 contacts arranged in 2 rows for robust connections.
- Connector has a straight orientation with male contact gender.
- Constructed with phosphor bronze contacts plated with tin over nickel for reliable conductivity.
- Housing made from polybutylene terephthalate with UL94-V0 flammability rating.
- Rated for operating temperatures ranging from -40°C to 105°C.
- Designed for through hole mounting with solder termination type.
- Offers a pitch of 2.54mm suitable for ribbon cable with 1.27mm pseudo pitch.
- Provides unshrouded connector design for ease of installation.
Product Description
Wurth Elektronik 690207101272 12-Way IDC Connector Male for Through Hole, 2 Row is designed for reliable wire-to-board connections in electronic applications requiring compact and low profile IDC transition connectors.
This connector supports a current rating of 1A and a voltage rating of 250V, making it suitable for low power PCB connector needs with a robust and durable design.
The WR-MM MiniModule series features a staggered pitch of 2.54 mm for PCB through hole connectors and a 1.27 mm pitch for ribbon cable IDC connectors, providing high-density configurations in a compact form factor.
Constructed with phosphor bronze contact material plated with matte tin over nickel, the contacts ensure excellent electrical conductivity and corrosion resistance. The housing is made of flame retardant polybutylene terephthalate (PBT) rated to UL94-V0 standard, offering durability in demanding environments.
Designed with a straight orientation and through hole mount, this male IDC connector allows easy solder termination for secure installation on PCB assemblies.
Operating temperature range from -40°C to 105°C enables use in a wide variety of industrial, commercial, and consumer electronics applications including communications equipment, instrumentation, and control systems.
Features 12 contacts in 2 rows supporting multi-signal wiring. Unshrouded male connector design facilitates easy mating. Flame retardant PBT housing meets safety requirements. WR-MM series ensures compatibility with other Wurth MiniModule components.
Precise 2.54 mm pitch for standardized PCB layouts.
These IDC connectors find application in industrial electronics, laboratory instruments, communication devices, automation systems, and other electronic assemblies requiring secure and reliable wire-to-board connections.
Wurth Elektronik connectors are engineered for quality and long-term reliability, offering users excellent electrical and mechanical performance. Explore our full range of IDC Connectors and electronic components on EnvMart for your precision engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector is rated for a current of 1A and a voltage of 250V, making it suitable for low power PCB connector applications.
The connector features a pitch of 2.54mm, which is suitable for standardized PCB layouts and ribbon cable configurations.
The contacts are made from phosphor bronze and are plated with tin over nickel, while the housing is constructed from polybutylene terephthalate (PBT) with a UL94-V0 flammability rating.
It operates within a temperature range of -40°C to 105°C, allowing for use in various industrial and commercial applications.
This model features 12 contacts arranged in 2 rows, supporting multi-signal wiring.
It is designed for through hole mounting with a solder termination type, facilitating secure installation on PCB assemblies.
This IDC connector is unshrouded, which facilitates easy mating during installation.
It belongs to the WR-MM MiniModule series, ensuring compatibility with other Wurth MiniModule components.
The connector has a straight orientation, which is standard for many PCB applications.
It is suitable for use in industrial electronics, laboratory instruments, communication devices, and automation systems requiring reliable wire-to-board connections.
This model uses solder termination, which is common for through hole connectors, ensuring a secure connection.
The country of origin for this connector is China.
