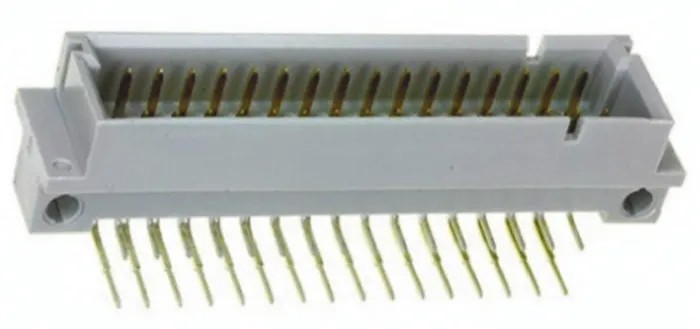

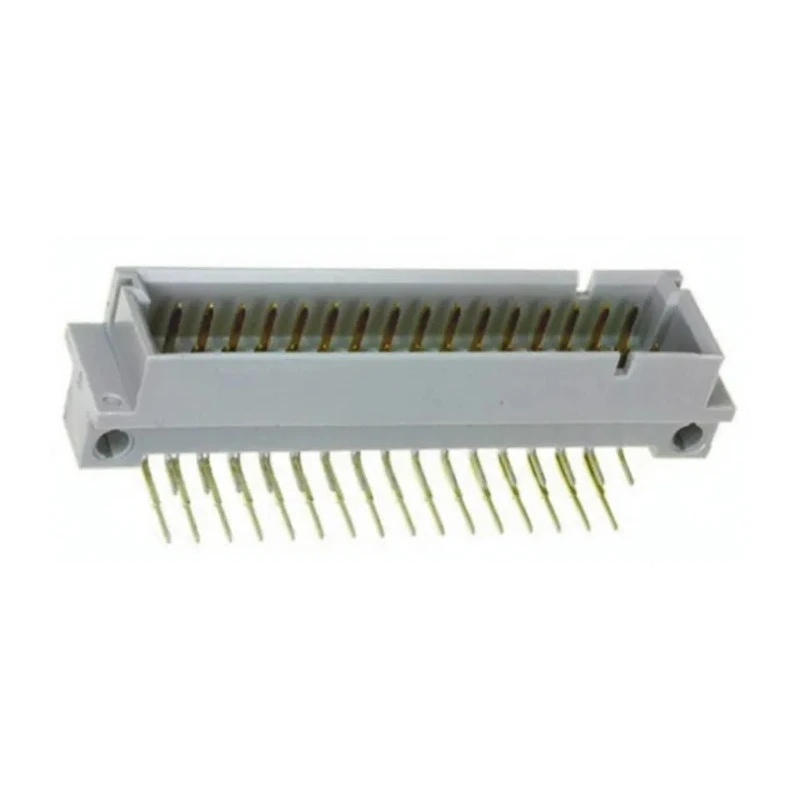

Amphenol Communications Solutions DIN 41612 Connector 32 Contacts 2 Rows 2.54 mm Pitch Through Hole 86094327113768E1LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 1.5A |
| Model | 86094327113768E1LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic Polyester |
| Contact Material | Copper Alloy |
| Series | 8609 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- Designed for board connector applications with right angle orientation.
- Current rating of 1.5 A to support moderate power requirements.
- Gold plating on contact areas ensures reliable conductivity and corrosion resistance.
- Constructed with glass filled thermoplastic polyester housing for durability and insulation.
- Operating temperature range from -55°C to 125°C for varied environmental conditions.
- Standard compliant with Class C1 and uses copper alloy contacts for excellent conductivity.
- Pitch spacing of 2.54 mm suited for DIN 41612 rack and backplane configurations.
- Through hole mount type provides mechanical stability on printed circuit boards.
Product Description
Amphenol Communications Solutions 86094327113768E1LF DIN 41612 Connector offers a robust interface solution for electronic equipment interconnections. This connector type features 32 gold-plated contacts arranged in 2 rows with a pitch of 2.54 mm, designed specifically as a through hole board connector with solder termination. The right angle orientation facilitates dense PCB layouts, optimizing space in complex assemblies.
The connector carries a current rating of 1.5 A and supports voltage up to 1 kV, making it suitable for a variety of industrial and electronic applications such as telecommunications, data processing, and control systems. Its contact material is a copper alloy, selected for excellent electrical performance, and contacts feature gold plating for enhanced conductivity and corrosion resistance. The housing is made from glass filled thermoplastic polyester, providing durability along with electrical insulation.
Operating over a wide temperature range from -55°C to 125°C, the connector is suitable for demanding environments encountered in industrial, manufacturing, and commercial sectors. The product complies with Class C1 standards ensuring reliable mechanical and electrical performance in DIN 41612 connector systems.
Designed for board connector assembly with through hole solder termination. Gold-plated contacts ensure long-term reliable electric connections. Compact 2.54 mm pitch configuration for high density applications. Robust insulation housing constructed from glass filled thermoplastic polyester.
Wide operating temperature and voltage capability to suit diverse environments. Low contact resistance optimizes signal integrity and power distribution. Industry standard DIN 41612 interface suitable for backplane and rack connectors.
Right angle connector orientation supports space-saving PCB layouts.
This product is manufactured in India and is supplied new, meeting industrial standards for quality and safety. It is perfectly suited for electronics manufacturing, telecommunications equipment, instrumentation, and varied industrial automation use cases. Explore more options in the DIN 41612 Connector category to find compatible mating receptacles and complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 1.5 A, suitable for moderate power requirements.
This model supports a voltage of up to 1 kV.
The contacts are arranged with a pitch of 2.54 mm, which is standard for DIN 41612 configurations.
It features 32 contacts arranged in 2 rows.
The housing is made from glass filled thermoplastic polyester, and the contacts are made from a copper alloy with gold plating for enhanced conductivity.
It operates within a temperature range of -55°C to 125°C, making it suitable for varied environmental conditions.
This model uses a through hole mount type, providing mechanical stability on printed circuit boards.
It features a solder termination type for secure connections.
The connector is designed with a right angle orientation, facilitating dense PCB layouts.
It complies with Class C1 standards, ensuring reliable mechanical and electrical performance.
This product is manufactured in India.
It is suitable for telecommunications, data processing, control systems, and various industrial applications.
