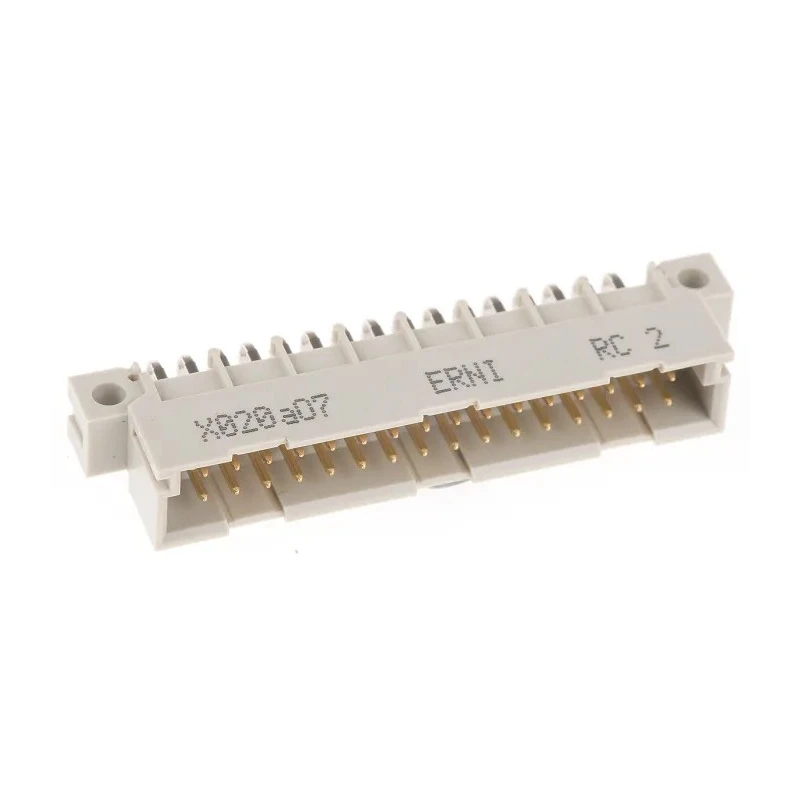

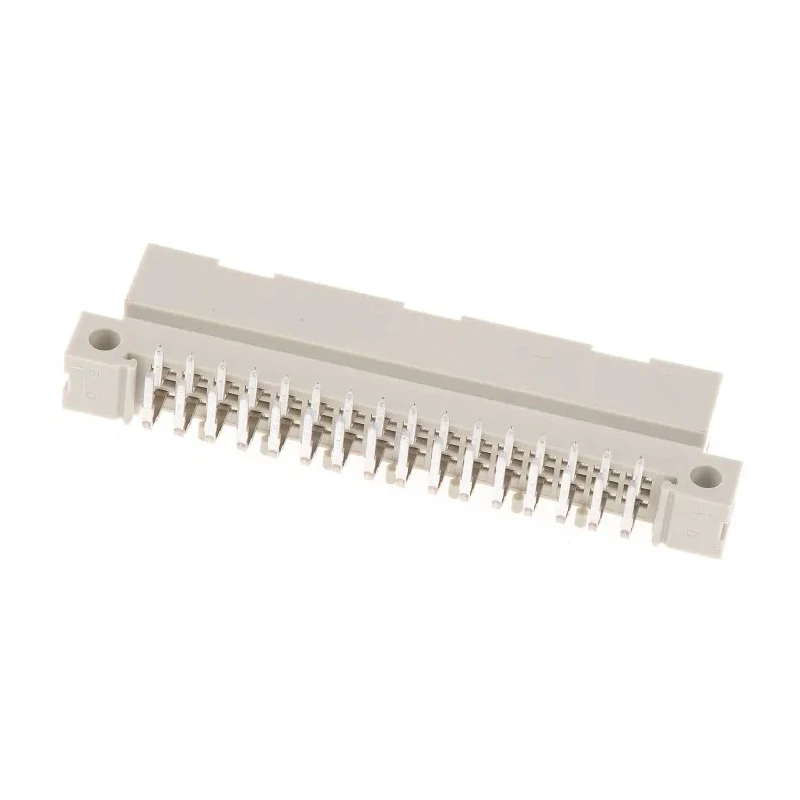

ERNI ERNIPRESS 32 Way 2.54 mm Pitch Type B/2 Solder Termination 2 Row Male Right Angle DIN 41612 Connector 384265 / 384265-E

ERNI 384265 / 384265-E DIN 41612 Connector is a 32 Way, 2.54 mm pitch, Type B/2 solder termination connector designed as a 2 row male right angle plug. Engineered for use in 19 inch Eurocard plug-in systems, this connector adheres to DIN 41612 and IEC 60603-2 standards, ensuring excellent quality and reliability in industrial electronics applications.

The connector is constructed with copper alloy contacts plated in gold to provide durable and consistent electrical performance, featuring a maximum contact resistance of 20 milliohms. It operates effectively in extreme temperatures ranging from -55°C to 125°C, enabling usage in demanding environments.

The housing material is Polybutylene Terephthalate, offering mechanical robustness and electrical insulation. The right-angle orientation and 2-row contact arrangement with a 2.54 mm pitch facilitate compact and secure board-to-board or backplane connections, suitable for plug-in cards and wiring planes.

Notable design features include pre-centering of the male connector for greater security, two-legged opposing spring contacts that maintain maximum contact security, and encoding to prevent incorrect mating that could damage sensitive components. This connector series supports various industrial sectors such as manufacturing, telecommunications, automation, laboratory instrumentation, and HVAC systems.

Package includes the ERNIPRESS 384265 / 384265-E DIN 41612 Connector, manufactured in Germany to meet rigorous industry standards. The connector features 32 contacts arranged in 2 rows with a 2.54 mm pitch. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.

Right angle orientation allows for efficient use of PCB space. Polybutylene Terephthalate housing material provides durability and electrical insulation. Wide operating temperature range from -55°C to 125°C suitable for harsh environments.

Maximum contact resistance of 20 milliohms ensures minimal signal loss. Compliant with DIN 41612 and IEC 60603-2 standards. Pre-centering and encoding features prevent incorrect insertion and overload damage. Designed for use in 19 inch Eurocard plug-in systems and backplane wiring.
