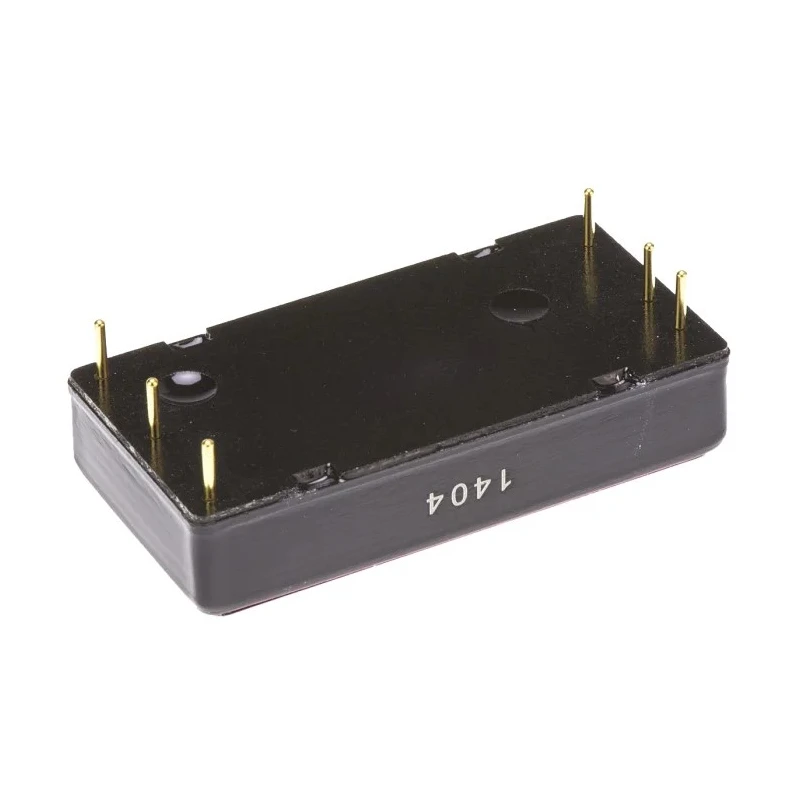

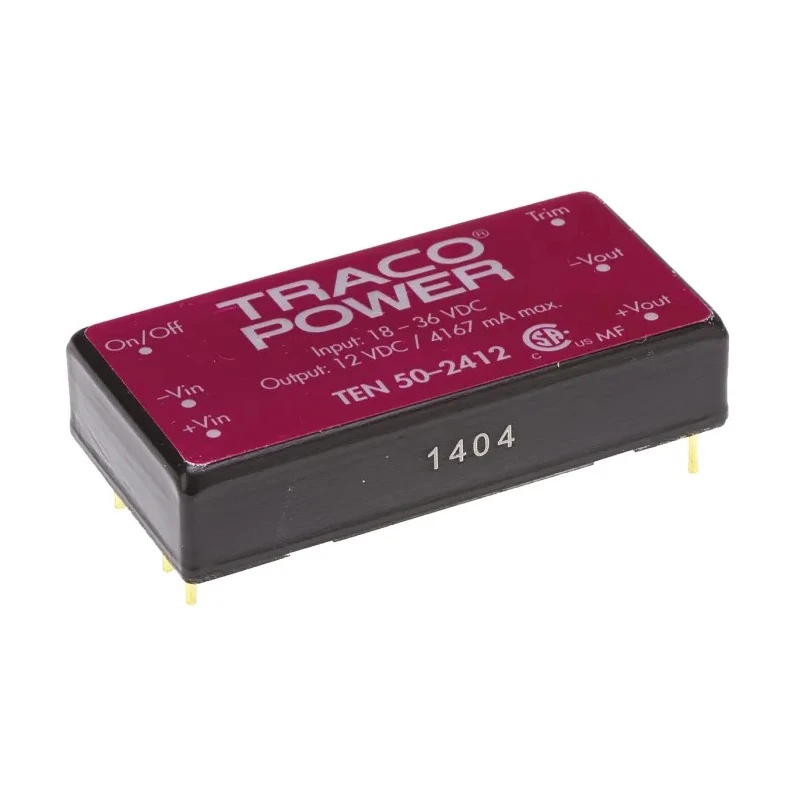

TRACOPOWER 50W Regulated Isolated DC/DC Converter, 12V DC Output, 4.17A, 18-36V DC Input, Metal Case, PCB Mount TEN 50-2412
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 50 DC/DC Converter, 12V dc/ 4 |
| Brand | TRACOPOWER |
| Efficiency | 92% |
| Length | 50.8mm |
| Model | TEN 50-2412 |
| Depth | 11mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | TEN 50 |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 220000h |
| Number of outputs | 1 |
| Maximum Output Power | 50W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 4.17A |
| Output Voltage Adjustment Range | 10.8/13.2 V dc |
| Isolation Voltage | 1.5kV dc |
Key Features
- Operates within a wide input voltage range of 18V to 36V DC.
- High efficiency up to 92%, minimizing power loss.
- Robust operating temperature range from -40°C to 85°C for reliable industrial applications.
- Output voltage can be adjusted externally between 10.8V and 13.2V DC.
- Provides 1500V DC isolation voltage ensuring electrical safety.
- Compact metal case with dimensions 50.8mm length, 25.4mm width, and 11mm depth.
- Designed for single output with remote On/Off control and protection against overload and short circuit.
- MTBF of 220000 hours ensuring long operational life.
Product Description
TRACOPOWER TEN 50-2412 is a highly efficient 50W DC/DC converter designed for industrial and commercial use. This PCB mount converter delivers a stable 12V DC output at 4.17A, operating with a flexible input voltage range from 18V to 36V DC. The metal case construction ensures durability and protection under harsh conditions.
Operating reliably in temperatures from -40°C to 85°C, the converter is suitable for extreme environments commonly encountered in industrial, communication, and mobile equipment applications. Its output voltage can be fine-tuned using an external resistor, allowing adaptation to specific circuit requirements.
The TEN 50 series features high efficiency up to 92%, which minimizes wasted energy and thermal dissipation. Electrical isolation of 1500V DC between input and output provides safety and noise reduction, essential in sensitive electronic systems.
This model includes on/off remote control functionality and comprehensive protection mechanisms including overload and short circuit detection, enhancing system reliability and safety. The compact footprint (50.8 x 25.4 x 11 mm) and PCB mounting design facilitate easy integration into complex assemblies.
Wide 2:1 Input voltage range from 18V to 36V DC. Single output voltage of 12V DC delivering 4.17A current. High efficiency performance at 92%. Operating temperature range from -40°C to +85°C. 1.5 kV DC isolation voltage for electrical safety.
External output voltage adjustment between 10.8V and 13.2V DC. Metal case construction with PCB mount type. MTBF of 220,000 hours ensuring long term reliability. Protection features: overload, short circuit, and remote on/off control.
These DC/DC converters are ideal for diverse industrial applications including distributed power architectures, instrumentation, communication systems, and mobile equipment requiring compact, reliable and efficient power conversion solutions.
Country of origin: Taiwan, Province of China. Backed by robust design and high safety standards, the TRACOPOWER TEN 50-2412 ensures dependable performance in challenging environments.
Explore more DC/DC Converters and power supply solutions at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
This unit delivers a stable output voltage of 12V DC.
The maximum output current is 4.17A.
It has a high efficiency of up to 92%, minimizing power loss.
The isolation voltage is 1500V DC, ensuring electrical safety.
The dimensions are 50.8mm in length, 25.4mm in width, and 11mm in depth.
It operates reliably within a temperature range of -40°C to 85°C.
Yes, it includes protection against overload and short circuits, along with remote on/off control functionality.
The output voltage can be adjusted externally between 10.8V and 13.2V DC using an external resistor.
The Mean Time Between Failures (MTBF) is rated at 220,000 hours.
This model is designed for PCB mounting.
It is manufactured in Taiwan, Province of China.
