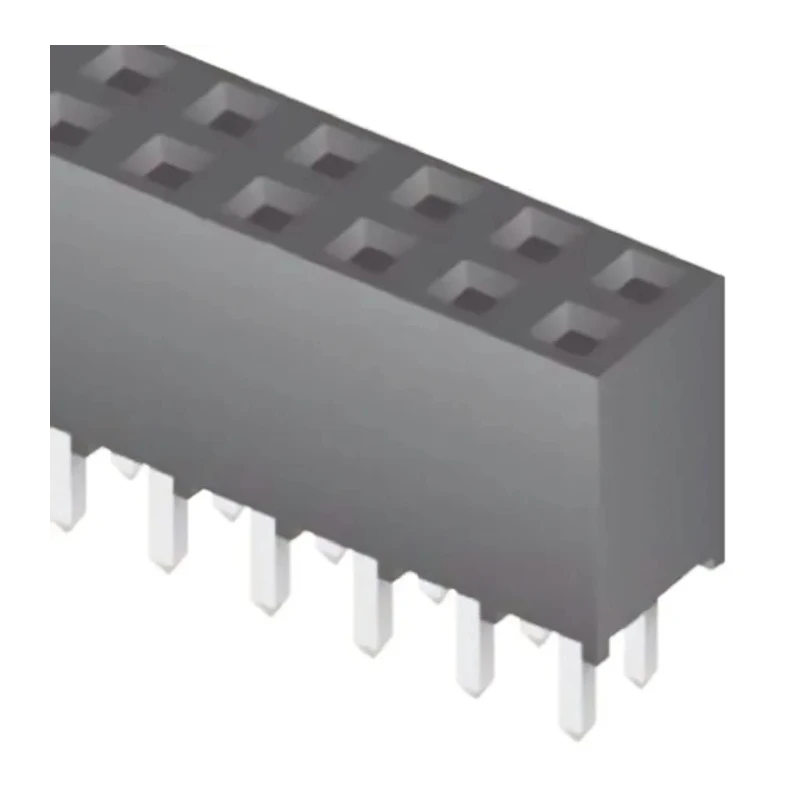

Samtec PCB Socket Board-to-Board 50-Contact 2 Row 2 mm Pitch Through Hole Solder SQT-125-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.5A |
| Temperature range | -55 → 125 °C |
| Model | SQT-125-01-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Current Rating | 5.5 A at 20 °C |
| Series | SQT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
| SQT-1xx-01-L-S | single row vertical |
| SQT-1xx-01-L-x-RA | horizontal |
| SQT-1xx-01-L-D | double row vertical |
Key Features
- This socket features a straight orientation for vertical mounting on PCBs.
- The housing material is black Liquid Crystal Polymer providing durability and thermal stability.
- Contact material is bronze plated with gold for excellent conductivity and corrosion resistance.
- It supports a current rating of 5.5 A at 20 °C and a voltage rating of 450 V.
- Temperature range extends from -55 °C to 125 °C, ensuring wide operating conditions.
- The socket includes 2 rows of 50 female contacts spaced at a 2 mm pitch.
- Terminated via solder through-hole mount ensuring secure mechanical and electrical connection.
- Designed for board-to-board connector system applications in industrial and electronics manufacturing.
Product Description
Samtec SQT-125-01-L-D is a high-quality PCB Socket designed for board-to-board connectivity with 50 female contacts arranged in 2 rows using a 2 mm pitch. This double row, straight through-hole socket features robust construction with a housing made from black Liquid Crystal Polymer (LCP) that offers excellent durability and temperature resistance. The socket operates reliably in temperature ranges from -55 °C to 125 °C, suitable for demanding industrial and electronics applications.
The socket is rated for 5.5 A current at 20 °C and can withstand voltages up to 450 V, making it ideal for use in power and signal transmission on printed circuit boards. The contact material is bronze with gold plating on the contact area, ensuring superior electrical conductivity and corrosion resistance. The termination type is solder, providing secure mechanical and electrical connectivity via through-hole mounting.
Its rugged Tiger Buy 0.5 mm square contact design with 0.25 μm gold plating and matt tin plating on PCB tails ensures long-lasting contact performance. The post length measures 2.29 mm allowing for reliable insertion.
This PCB Socket is well suited for use in electronic components manufacturing, industrial equipment, telecommunications, and other sectors requiring reliable board-to-board connectors.
Straight orientation with through-hole mounting for PCB integration. Board-to-board connector system compatibility. Supports current up to 5.5 A at 20 °C and voltage up to 450 V. Wide operating temperature range from -55 °C to 125 °C.
High-reliability gold plated bronze contacts. Black Liquid Crystal Polymer housing. Double row, 50-contact setup with 2 mm pitch spacing. Suitable for industrial, manufacturing, and electronic assembly applications. Rugged design supporting demanding use cases.
Explore more top-grade PCB Sockets and connectors in the Electronics Components category on EnvMart to find the optimum solution for your industrial and electronic prototyping needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 5.5 A at 20 °C.
The voltage rating is 450 V.
The operating temperature range extends from -55 °C to 125 °C.
This socket features 50 female contacts arranged in 2 rows.
The contacts are spaced at a 2 mm pitch.
The housing is made from black Liquid Crystal Polymer, and the contacts are bronze plated with gold.
It uses through-hole mounting for secure installation.
The socket features a straight orientation for vertical mounting on PCBs.
It utilizes solder termination for secure mechanical and electrical connections.
It is designed for board-to-board connector system applications in industrial and electronics manufacturing.
The contact gender is female.
The country of origin for this product is India.
