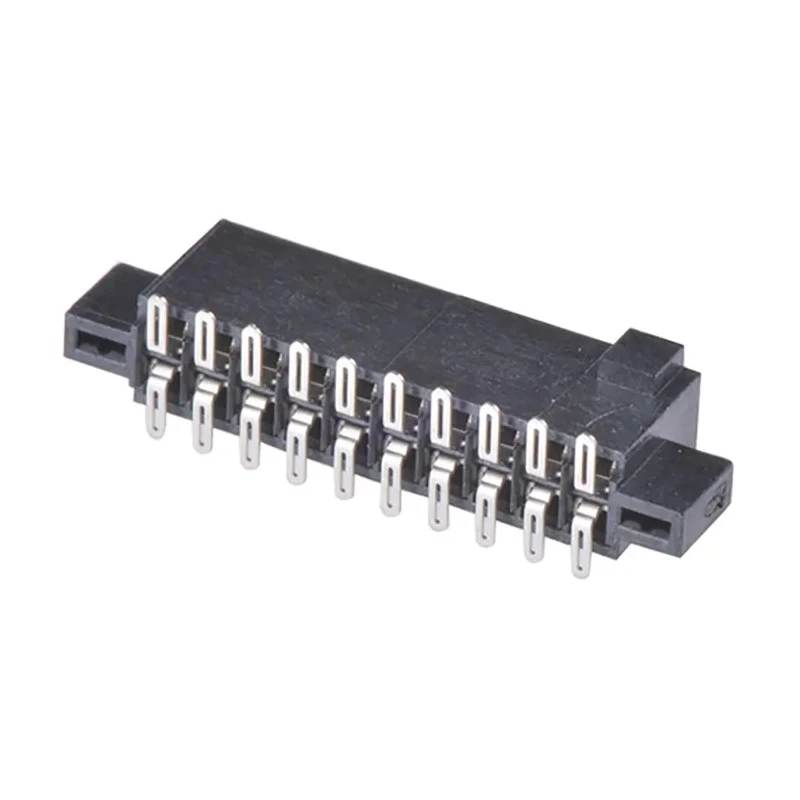

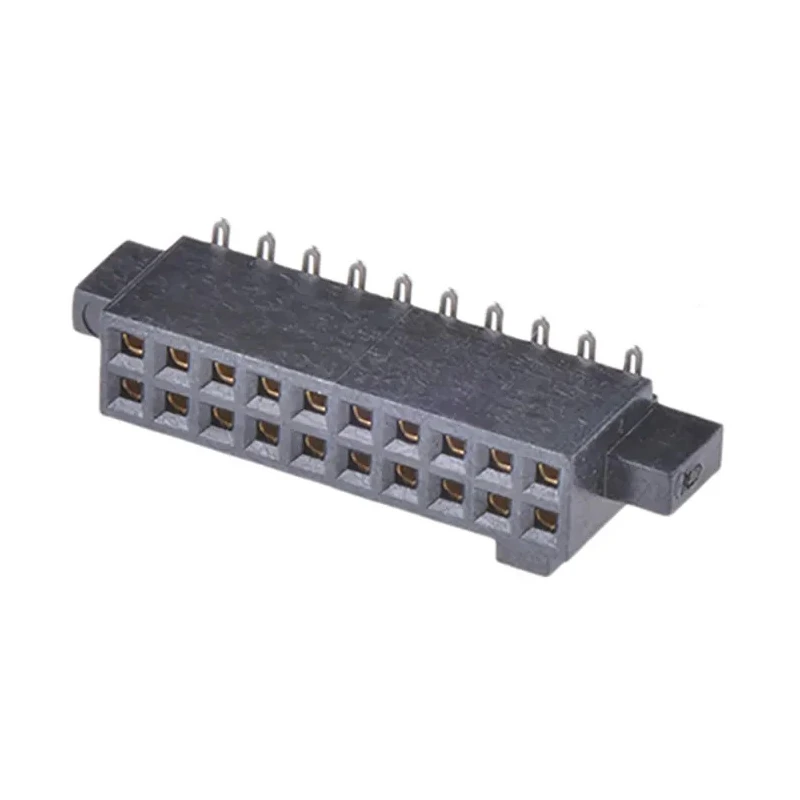

Samtec SFM Series Straight Surface PCB Socket, 20-Contact, 2 Row, 1.27 mm Pitch, 12A, 350V SFM-110-02-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SFM-110-02-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SFM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Cable |
| Stacking Height | 12mm |
Key Features
- Dual-row layout with 20 female contacts for board-to-board connection.
- Constructed with liquid crystal polymer housing for durability.
- Gold plated beryllium copper alloy contacts ensure reliable electrical connection.
- Solder termination type for secure mounting on PCB.
- Operates reliably in temperatures from -55°C to 125°C.
- Stacking height of 12 mm supports compact PCB assembly.
- Compatible with Samtec TFM, FTS, and FTSH series headers and terminals.
- Designed with multi-finger Tiger Eye contacts for enhanced contact redundancy.
Product Description
Samtec SFM-110-02-L-D is a high-quality PCB socket from the Samtec SFM Series, designed for straight surface mounting with a 1.27 mm pitch suitable for board-to-board and cable connections. This surface mount technology (SMT) socket features 20 female contacts arranged in two rows, supporting a current rating of 12A and voltage up to 350V.
The socket is constructed from a durable liquid crystal polymer housing, ensuring mechanical robustness and high reliability. The contact material comprises a beryllium copper alloy plated with gold to provide excellent conductivity and corrosion resistance. The multi-finger Tiger Eye gold plated design provides multiple contact points for superior connection integrity.
Featuring a stacking height of 12 mm, this socket is ideal for compact and efficient PCB assembly in various electronic applications. It is rated for operation in a wide temperature range from -55°C to 125°C, making it suitable for industrial, laboratory, and commercial electronics environments.
Samtec SFM-110-02-L-D sockets mate with matching series headers such as TFM, FTS, and FTSH, facilitating seamless integration into existing systems. The socket is terminated by solder with a straight orientation, ensuring a secure and long-lasting PCB mount.
Dual-row 20-contact configuration supports reliable signals. Liquid crystal polymer housing offers strength and longevity. Gold plated beryllium copper alloy contacts ensure excellent conductivity. Surface mount termination type designed for solder mounting.
Wide operating temperature range of -55°C to 125°C. Stacking height of 12 mm for compact PCB designs. Multi-finger Tiger Eye contact design enhances connection reliability. Compatible with Samtec TFM, FTS, and FTSH headers and terminal strips.
This Samtec SFM Series PCB socket is well suited for applications in electronics manufacturing, industrial control systems, test and measurement equipment, telecommunications, and various other sectors requiring robust PCB interconnection solutions. It ensures secure, durable, and high-performance board-to-board connectivity.
Explore Samtec SFM series and related PCB Sockets in the Electronics Components category at EnvMart for reliable and precision-engineered connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 350V.
This model has a current rating of 12A.
The stacking height of this socket is 12 mm, which supports compact PCB assembly.
The pitch size of the contacts in this model is 1.27 mm.
The socket is constructed from liquid crystal polymer for the housing and features beryllium copper alloy contacts plated with gold.
It operates reliably in a temperature range from -55°C to 125°C.
This socket uses a solder termination type for secure mounting on the PCB.
This model features 20 female contacts arranged in two rows.
It is compatible with Samtec TFM, FTS, and FTSH series headers and terminals.
The orientation of this socket is straight, designed for surface mounting.
This model supports a board-to-board and cable connector system.
The country of origin for this PCB socket is India.
