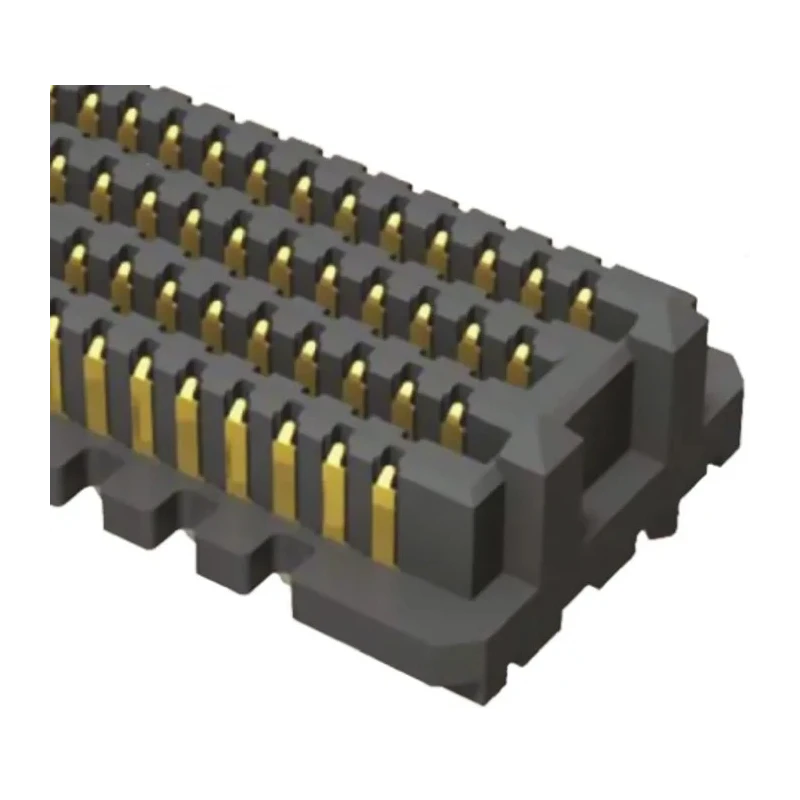

Samtec SEAM Series Straight Surface PCB Header 400 Contacts 1.27 mm Pitch 10 Row Shrouded SEAM-40-02.0-S-10-2-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.7A |
| Model | SEAM-40-02.0-S-10-2-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SEAM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 10 |
| Pitch | 1.27mm |
| Contact Resistance | 5.5 mΩ |
| Contact Plating | Gold |
| Number of Contacts | 400 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The connector employs liquid crystal polymer housing for durability and performance.
- Gold plating on contacts ensures reliable conductivity and corrosion resistance.
- Designed for board-to-board surface mounting with male contact gender.
- Operational temperature range from -55°C to 125°C suits demanding environments.
- Supports 2.7 A current rating and withstands voltages up to 240 V.
- Solder termination type with 5.5 mΩ contact resistance guarantees strong electrical connection.
- Features the SEARAY™ high-speed interconnect system rated at 12.5 GHz at -3 dB attenuation.
- Suitable for high-density, high-speed board stacking applications requiring precise interconnect solutions.
Product Description
Samtec SEAM-40-02.0-S-10-2-A-K-TR is a premium straight surface PCB header designed for industrial and electronics manufacturing applications requiring high-density interconnects. The 400 gold-plated copper alloy contacts arranged in 10 rows with a 1.27 mm pitch provide consistent and reliable electrical performance for board-to-board connections. The liquid crystal polymer housing offers excellent mechanical stability and thermal resistance, operating effectively from -55°C up to 125°C.
This SEARAY™ series connector supports a current rating of 2.7 A and voltage capability up to 240 V, making it ideal for use in complex electronic assemblies requiring high-speed data transmission up to 12.5 GHz at -3 dB signal loss. The shrouded design protects contacts during mating and reduces the risk of damage or contamination.
The solder termination and surface mount configuration enhance assembly efficiency and solder joint reliability utilizing Samtec's solder charge technology. This connector system is widely applicable in telecommunications, industrial controls, computing, and electronic instrumentation sectors that demand robust, high-density PCB interconnect solutions.
The connector uses a board-to-board system suitable for stacking and compact layouts. Gold contact plating ensures low resistance and corrosion protection. The product features male contact gender compatible with corresponding mating connectors.
Designed for surface mount technology, simplifying PCB assembly processes. Operating temperature range from -55°C to 125°C supports use in harsh conditions.
Samtec products are recognized for engineering excellence and reliability in high-frequency and high-density interconnect applications. This SEAM series product delivers performance and durability required by demanding electronic component manufacturers and system integrators.
Browse the complete range of PCB Headers in the Electronics Components category on EnvMart to find complementary connectors, sockets, and accessories from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.7 A.
It can withstand voltages up to 240 V.
The contacts are arranged with a pitch of 1.27 mm.
The operational temperature range is from -55°C to 125°C.
It features a total of 400 contacts.
The housing is made from liquid crystal polymer, and the contacts are composed of copper alloy with gold plating.
It utilizes a solder termination type.
Yes, this model features a shrouded design which protects the contacts during mating.
The contact resistance is rated at 5.5 mΩ.
It is suitable for high-density, high-speed board stacking applications in sectors like telecommunications and industrial controls.
The orientation of this model is straight.
The country of origin for this connector is India.
