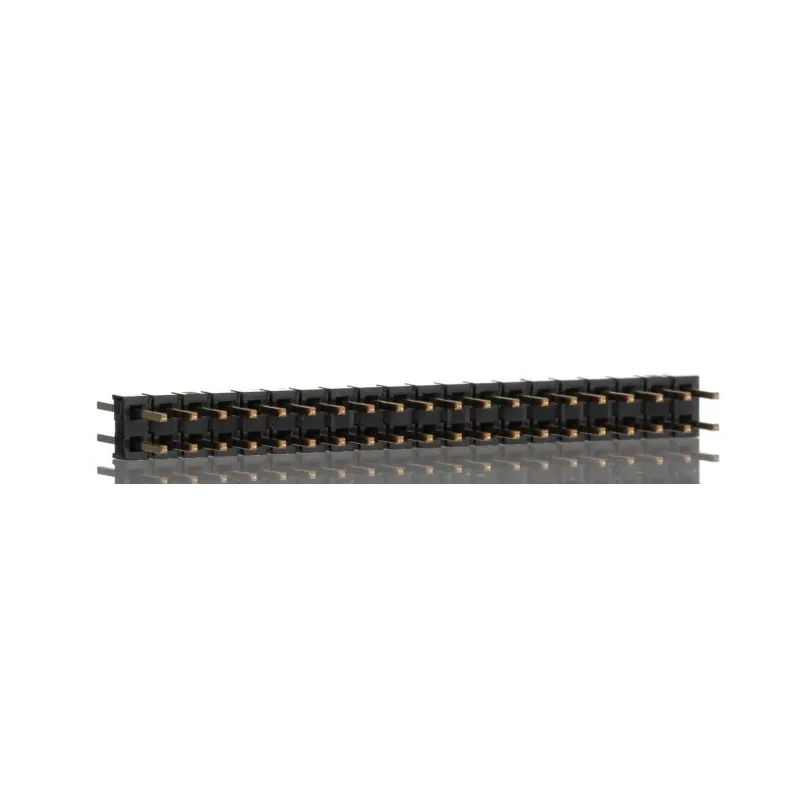

Samtec TSW Series 40 Contact Through Hole Pin Header, 2 Rows, 2.54 mm Pitch, Gold Plated Phosphor Bronze TSW-120-08-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-120-08-L-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 5.08mm |
| Mating Pin Length | 5.84mm |
Key Features
- Designed for board-to-board and wire-to-board connections with through hole mounting.
- High current rating of 7.6 A suitable for power-intensive applications.
- Housing made of durable glass filled polyester ensuring long-term reliability.
- Operating temperature from -55°C to 125°C accommodates harsh environments.
- Gold contact plating provides excellent conductivity and corrosion resistance.
- Straight orientation and unshrouded design allow precise alignment and easy solder termination.
- Tail pin length of 5.08 mm and mating pin length of 5.84 mm enable secure mechanical and electrical connection.
Product Description
The Samtec TSW-120-08-L-D pin header is a high-quality electronic connector featuring 40 male gold plated phosphor bronze contacts in a 2 row configuration with 2.54 mm pitch. Designed for through hole mounting, it provides reliable board-to-board and wire-to-board connectivity.
Its robust glass filled polyester housing supports durability and high operating temperatures ranging from -55°C to 125°C, making it suitable for industrial and commercial electronic assemblies. The gold plating on the contacts ensures superior electrical conductivity and excellent resistance to corrosion.
This connector supports a high current rating of 7.6 A, enabling use in power-intensive applications such as industrial automation systems, power supplies, and control panels. The straight orientation with unshrouded design offers precise alignment and easy solder termination ensuring a secure and permanent connection.
Board-to-board and wire-to-board connector system supports versatile electronic applications. Phosphor bronze contact material enhances durability and electrical performance. Gold plating on contacts improves conductivity and resists corrosion.
Through hole mounting ensures mechanical stability on printed circuit boards. Wide operating temperature range from -55°C to 125°C suitable for demanding environments. 2.54 mm pitch with 40 contacts arranged in 2 rows for compact, efficient connections.
High current rating of 7.6 A supports power-intensive uses. Solder termination type provides secure and lasting solder joints.
This Samtec TSW pin header is ideal for use in industrial electronics, manufacturing equipment, power distribution, and control systems where reliable electrical and mechanical performance is critical. It ensures robust connectivity in PCB assemblies for a variety of professional and industrial applications.
Explore the full range of PCB Headers and connectors at EnvMart for your electronics manufacturing and design needs.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a high current rating of 7.6 A, making it suitable for power-intensive applications.
The contacts are arranged with a pitch of 2.54 mm, allowing for compact and efficient connections.
The housing is made of glass filled polyester, and the contacts are constructed from phosphor bronze with gold plating for improved conductivity and corrosion resistance.
It operates within a temperature range from -55°C to 125°C, accommodating harsh environments.
This model features 40 male contacts arranged in 2 rows.
The termination type for this connector is solder, ensuring secure and lasting solder joints.
The tail pin length is 5.08 mm, which helps in securing the mechanical and electrical connection.
It has a voltage rating of 550V, making it suitable for various applications.
The design of this model is unshrouded, which allows for precise alignment during installation.
It supports both board-to-board and wire-to-board connections, providing versatile connectivity options.
The maximum operating temperature for the TSW-120-08-L-D is 125°C, suitable for high-temperature environments.
This product is manufactured in India.
