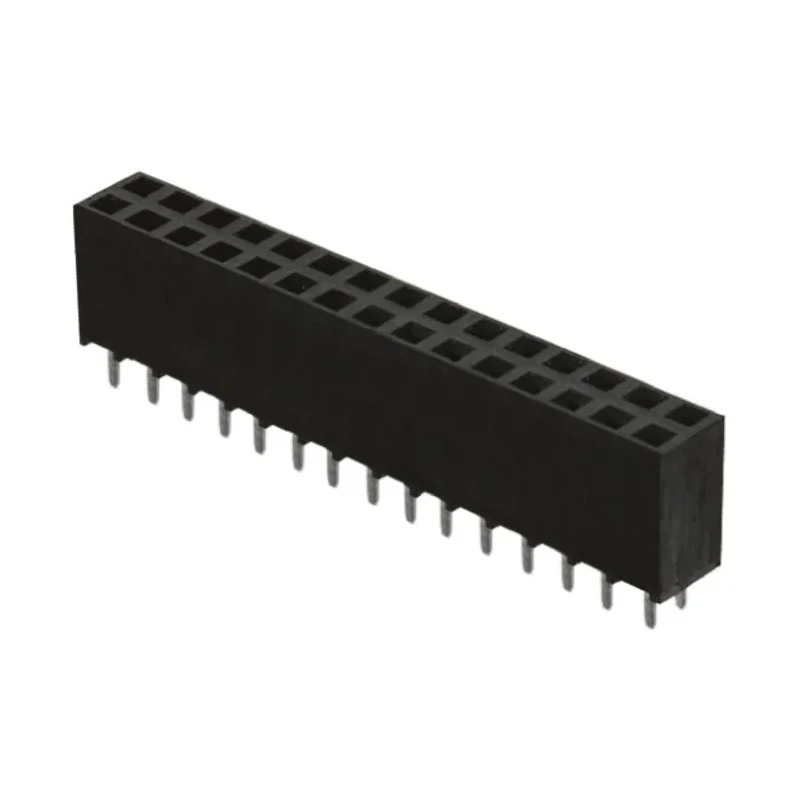

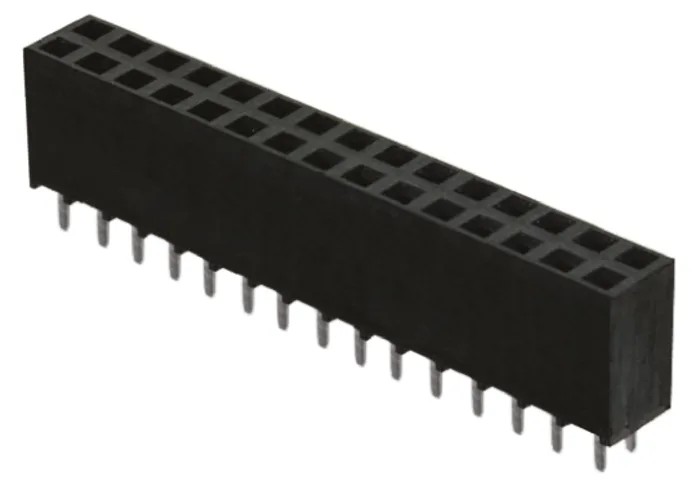

Samtec SSW Series Straight Through Hole PCB Socket 30-Contact 2 Row 2.54 mm Pitch Solder SSW-115-01-T-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-115-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- The socket features a black liquid crystal polymer housing for durability.
- It uses phosphor bronze contacts with matte tin plating, suitable for reliable connections.
- Designed for through hole mounting with a straight orientation compatible with board-to-board systems.
- Supports a current rating of 6.9 A and voltage up to 550 V for industrial applications.
- Operating temperature ranges from -55°C to 105°C, suitable for harsh environments.
- The contact gender is female with a row pitch of 2.5 mm providing precise alignment.
- The socket series SSW offers standard 2.54 mm pitch with 2 rows and 30 contacts for versatile board connectivity.
Product Description
Samtec SSW-115-01-T-D Straight Through Hole PCB Socket is a high-quality, 30-contact, double-row board-to-board connector featuring a 2.54 mm pitch and solder tail termination designed for electronic component assembly. Manufactured with a durable black liquid crystal polymer housing, it supports reliable electrical connections with female phosphor bronze contacts plated with matte tin, ensuring corrosion resistance and conductivity.
This connector is designed for through hole mounting with a straight orientation to facilitate assembly in various industrial and electronic equipment. It is rated for a current of 6.9 A and can handle voltages up to 550 V, making it suitable for demanding electrical applications.
The operating temperature range of -55°C to 105°C allows usage in a wide range of environments, including industrial, manufacturing, and electronic laboratory settings. The 2-row configuration with 30 contacts and a row pitch of 2.5 mm offers precise and secure connections between printed circuit boards.
The SSW series PCB sockets are compatible with matching headers from Samtec, ensuring proper mating with TSW series through hole and TSM series SMT square post headers, enhancing design flexibility.
The socket is made of liquid crystal polymer housing for durable performance. Phosphor bronze contacts with matte tin plating provide excellent electrical contact. Through hole mounting ensures robust mechanical and electrical connections.
Supports 6.9 A current and 550 V voltage ratings for industrial use. Operating temperature ranges from -55°C to 105°C for versatile application conditions. Features female contact gender and a 2.5 mm row pitch for precise alignment.
Designed for board-to-board connection with 30 contacts across 2 rows.
This PCB Socket series is ideal for electronic manufacturing, assembly lines, laboratory equipment, industrial controls, and other commercial and industrial applications needing reliable electrical interconnections between circuit boards. Browse EnvMart to find more Samtec electronic components and PCB connectors to support your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 6.9 A, making it suitable for various industrial applications.
This socket can handle voltages up to 550 V, which is appropriate for demanding electrical applications.
It supports through hole mounting, which facilitates robust mechanical and electrical connections in electronic assemblies.
The housing is made of liquid crystal polymer, and the contacts are phosphor bronze with matte tin plating for reliable connections.
The operating temperature range for this model is from -55°C to 105°C, allowing it to function in harsh environments.
This model features 30 contacts arranged in 2 rows, providing versatile connectivity options.
The pitch size for this model is 2.54 mm, with a row pitch of 2.5 mm for precise alignment.
Yes, it is compatible with matching headers from Samtec, specifically the TSW series through hole and TSM series SMT square post headers.
The SSW-115-01-T-D uses solder termination, which is standard for electronic component assembly.
The contact gender for this socket is female, designed for board-to-board connections.
This model is manufactured in India, ensuring compliance with local manufacturing standards.
This PCB socket is suitable for electronic manufacturing, assembly lines, laboratory equipment, and industrial controls requiring reliable electrical interconnections.
