Samtec SSQ Series Straight Through Hole PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch, 7.6A, 550V, Liquid SSQ-109-01-G-D

Free Delivery in India | Lowest Global Shipping Charges

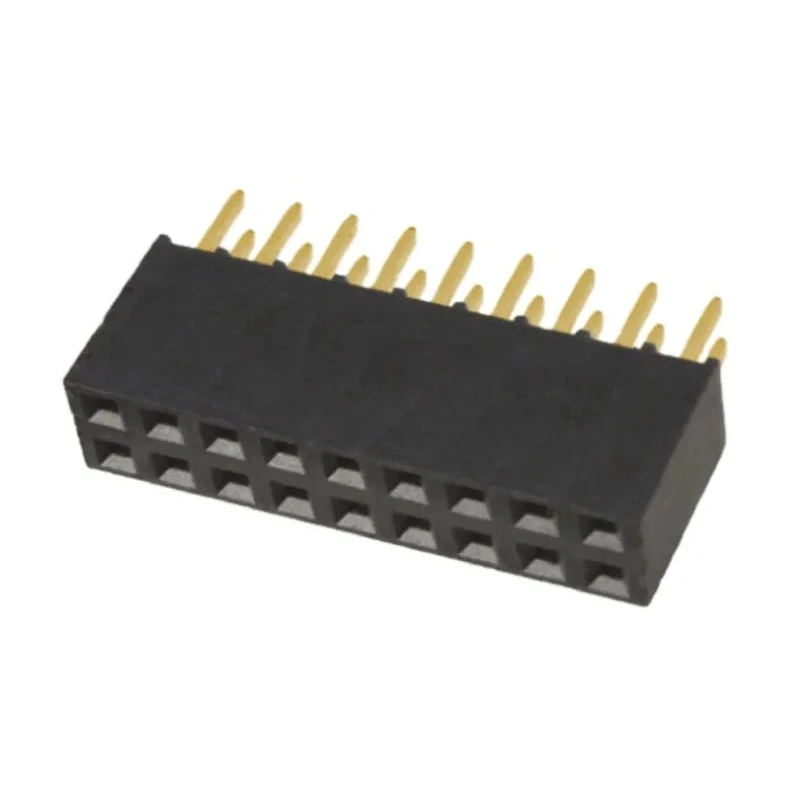

Samtec SSQ Series Straight Through Hole PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch, 7.6A, 550V, Liquid SSQ-109-01-G-D

Name: Samtec SSQ Series Straight Through Hole PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch, 7.6A, 550V, Liquid SSQ-109-01-G-D
Brand: Samtec
SKU: 130364
Price: 4.1 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	550V
Brand	Samtec
Orientation	Straight
Current	7.6A
Model	SSQ-109-01-G-D
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SSQ
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	18
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	2.5mm
HY Electronic Corp SMAJ12CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214ACBrand	HY Electronic Corp
STMicroelectronics 1-Element Bi-Directional TVS Diode, 400 W, 2-Pin DO-214Brand	STMicroelectronics

Key Features

The socket supports a current rating of 7.6A and a voltage rating of 550V.
It features a liquid crystal polymer housing with a black insulator for high durability.
The contact material is bronze with gold plating ensuring reliable conductivity.
The socket has a two-row configuration with a row pitch of 2.5mm and female contact gender.
Designed for through hole mounting with straight orientation for board-to-board connectors.
Operating temperature ranges from -55°C to 125°C for wide environmental compatibility.
This SSQ series socket suits industrial and electronic applications requiring robust PCB connections.
The product meets no specific standards or approvals but is tailored for reliable use in electronics manufacturing.

Product Description

Samtec SSQ-109-01-G-D is a straight through hole PCB socket featuring 18 contacts arranged in 2 rows with a 2.54 mm pitch. It operates at a current capacity of 7.6A and voltage of 550V, making it suitable for demanding electronic applications requiring board-to-board connectivity.

Constructed with a liquid crystal polymer housing, this socket delivers durability and resistance across an operating temperature range from -55°C to 125°C. The contacts are made of bronze and protected with 0.51μm gold plating to ensure optimal electrical conductivity and corrosion resistance.

The socket is designed for through hole mounting and has a straight orientation, enabling easy soldering and stable mechanical connection on printed circuit boards. The female contact gender configuration allows it to mate effectively with corresponding headers in the SSQ series.

These PCB sockets offer reliable performance in industrial electronics, manufacturing, telecommunications, and various commercial electronic equipment. The SSQ series includes options for single and double row, different post lengths, and body orientations to meet diverse design needs.

The product does not carry specific certifications but complies with typical industrial requirements. The socket mates with corresponding Samtec TSW and TSM series headers, facilitating versatile board-to-board solutions.

The socket supports a maximum current of 7.6A and voltage rating of 550V. Operating temperature range is -55°C to 125°C. Housing material is a black liquid crystal polymer delivering durability. Contact material is bronze with gold plating for reliable conductivity.

The socket is designed for through hole mounting with straight orientation. The row pitch is 2.5mm and number of contacts is 18 arranged in 2 rows. Compatible with board-to-board connector systems in electronics manufacturing.

Explore more from Samtec and similar PCB Sockets in the Electronics Components category at EnvMart.
