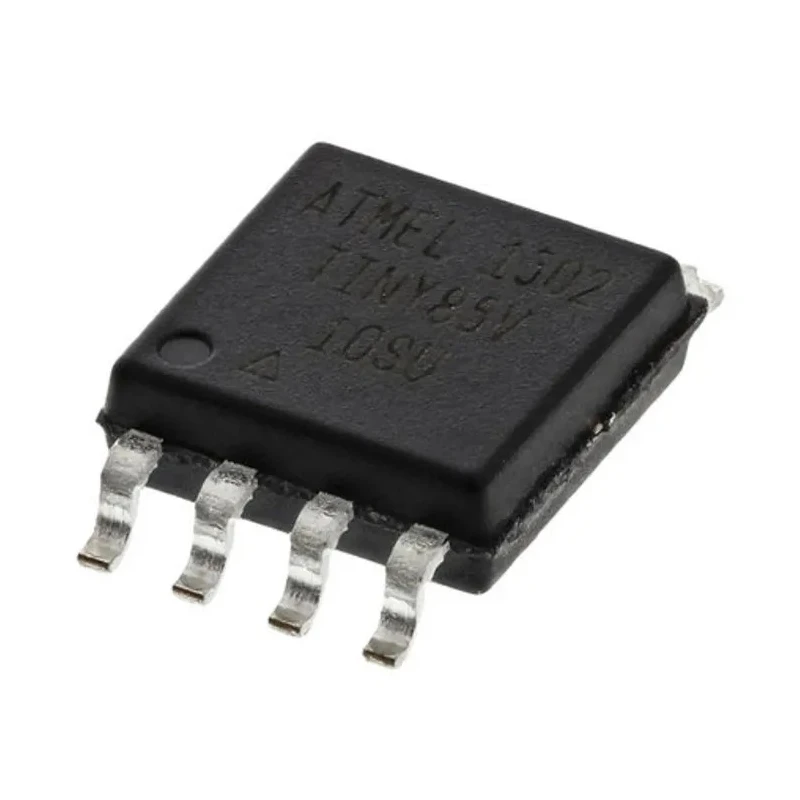

Microchip 8-bit AVR ATtiny85 Microcontroller 10 MHz, 8kB FLASH, 8-Pin SOIJ ATTINY85V-10SU

Microchip ATTINY85V-10SU is an 8-bit AVR microcontroller featuring an enhanced RISC architecture that delivers high performance and power efficiency. Operating at up to 10 MHz, this microcontroller achieves close to 1 MIPS per MHz execution speed, making it suitable for compact and efficient embedded applications.

This device comes with 8kB of Flash memory for program storage, 512 bits of RAM, and a 6 programmable I/O pins interface, facilitating flexible system design. It supports SPI and USI communication protocols, useful for connecting to other microcontrollers or peripherals.

The microcontroller operates within a voltage range from 2.7V to 5.5V, accommodating various power source options. It functions reliably under a wide temperature range from -40°C to 85°C, suitable for industrial environments. The package type is SOIJ with 8 pins, with a compact form factor sized 5.35 mm length, 5.4 mm width, and 1.91 mm height.

Notable features include an internal calibrated oscillator, on-chip debug system with debugWIRE, programmable watchdog timer, and power-saving sleep modes to optimize battery life. It also offers enhanced power-on reset and brown-out detection circuits to ensure stable operation.

The ATtiny85 supports four 10-bit ADC channels, an analogue comparator, one 8-bit timer/counter with prescaler and two PWM channels, and a high-speed timer/counter. These peripherals enable the microcontroller to be used in applications such as sensor interfacing, motor control, and energy management in consumer electronics, automotive, industrial automation, and IoT devices.

Based on AVR enhanced RISC architecture for efficient performance. Operates at a maximum clock frequency of 10 MHz. Features 8kB of Flash program memory and 512 bits of RAM. Includes 6 programmable I/Os and 4-channel 10-bit analogue-to-digital converter.

Supports SPI and USI interface types for communication. Operates within voltage range of 2.7 V to 5.5 V for flexible power supply options. Temperature range from -40°C to 85°C ensures industrial applicability. Compact 8-pin SOIJ surface mount package with dimensions approximately 5.35 mm x 5.4 mm x 1.91 mm.

Equipped with on-chip debug and programmable brown-out detection features. Low power consumption modes including power-down and idle modes.

This microcontroller is an ideal choice for compact embedded systems requiring high efficiency and small footprint. It is used predominantly in electronic products demanding low power consumption and high processing performance. Explore more Microchip Microcontrollers and related products at EnvMart.
