Wurth Elektronik Multilayer Surface Mount Inductor 2.2 μH Ferrite Core 0805 WE-MI 74479052

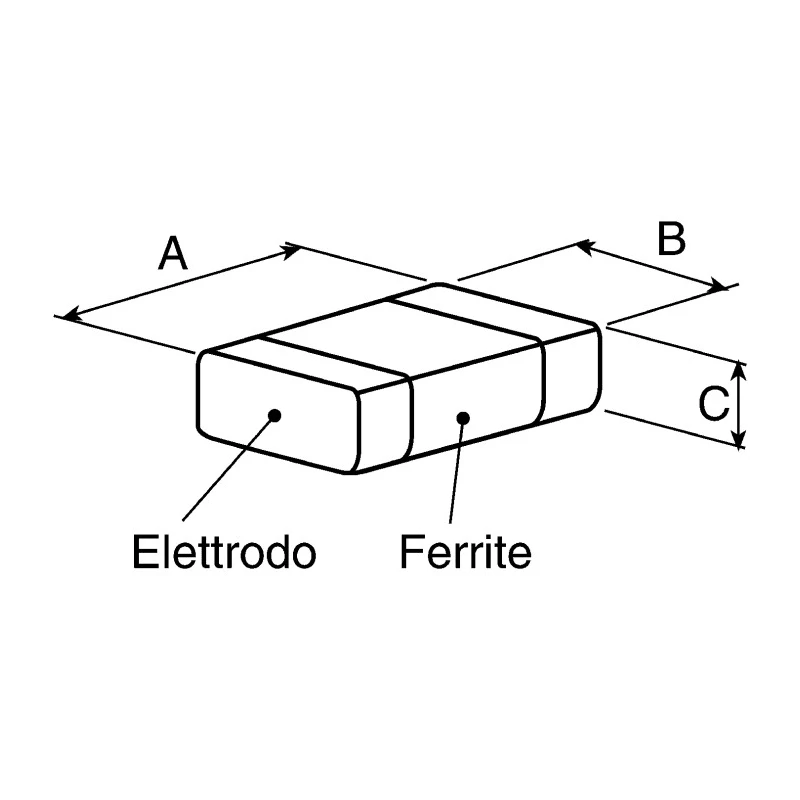

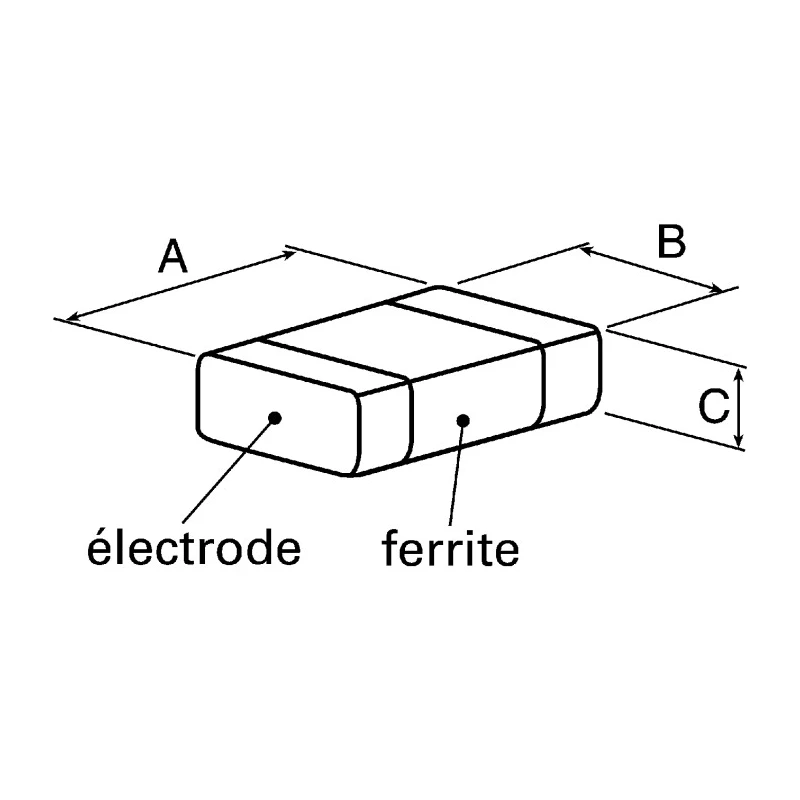

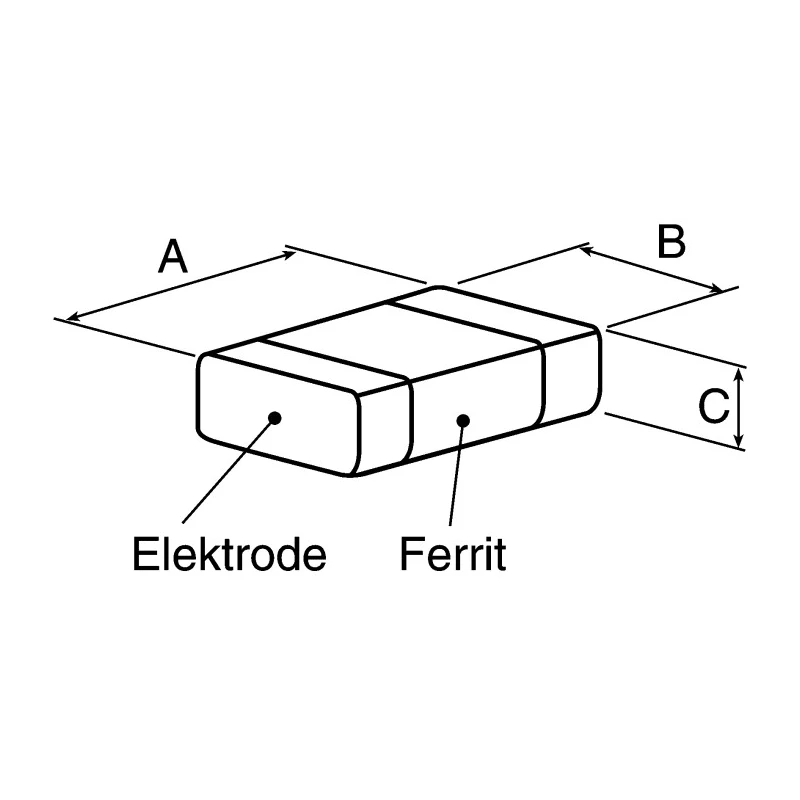

Wurth Elektronik 74479052 multilayer surface mount inductor with a ferrite core offers an inductance of 2.2 μH ±10%, packaged in a compact 0805 case size (2.0 x 1.25 x 0.9 mm), designed for high-performance applications requiring reliable magnetic screening.

This surface mount inductor supports a maximum DC current of 30mA and features a maximum DC resistance of 600mΩ, ensuring low power loss. It operates effectively within a temperature range from -55°C to 125°C, making it suitable for demanding thermal environments.

The device exhibits a maximum self-resonant frequency of 55MHz and a minimum quality factor of 45, delivering excellent frequency response and minimal energy loss. Its multilayer ferrite construction provides stability with minimal temperature drift and excellent solderability.

Manufactured to the highest standards including RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21, this inductor is tailored for telecommunications, computing, filter circuits, oscillator circuits, and adaptor networks.

Supplied in tape and reel packaging, it facilitates automated placement and assembly for enhanced production efficiency. The inductor is magnetically screened, enabling maximum packing density on printed circuit boards due to the elimination of undesirable coupling effects.

This inductor features an 0805 package size suitable for high-density PCB assembly. It has a maximum DC current rating of 30mA and a maximum DC resistance of 600mΩ. The device operates between -55°C and 125°C offering robust thermal performance.

Maximum self-resonant frequency is 55MHz for high frequency applications. The multilayer ferrite core construction provides a minimum quality factor of 45 and low temperature drift. Termination is designed for surface mount technology, enabling automated soldering.

Packaging is tape and reel for efficient manufacturing processes. Compliant with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards. Ideal for telecommunications, computer circuits, filters, oscillators, and adaptor networks.

This product is part of the broader category of inductors within electronics components and is invaluable for applications demanding compact size and high reliability. Explore more products in the Inductors category at EnvMart for a comprehensive selection.
