Wurth Elektronik WE-MI 0805 Unshielded Multilayer Surface Mount Inductor Ferrite Core 1μH ±10% 50mA 85MHz 7447905

Wurth Elektronik model 7447905 is an 0805 size unshielded multilayer surface mount inductor featuring a ferrite core with an inductance of 1μH and a tolerance of ±10%. It is designed for applications requiring compact inductors with excellent magnetic shielding and reliability.

This multilayer Surface Mount Inductor is constructed with high-quality ferrite core material, enabling excellent magnetic properties and low signal loss. The device offers a maximum DC current rating of 50mA and a maximum DC resistance of 400mΩ, making it efficient for power-sensitive electronic circuits.

The inductor operates within a temperature range of -55°C to +125°C, offering stability in various environmental conditions. With a maximum self-resonant frequency of 85MHz and a minimum quality factor of 45, it is ideal for high-frequency applications such as telecommunications, computing, filter and oscillator circuits, and adaptive networks.

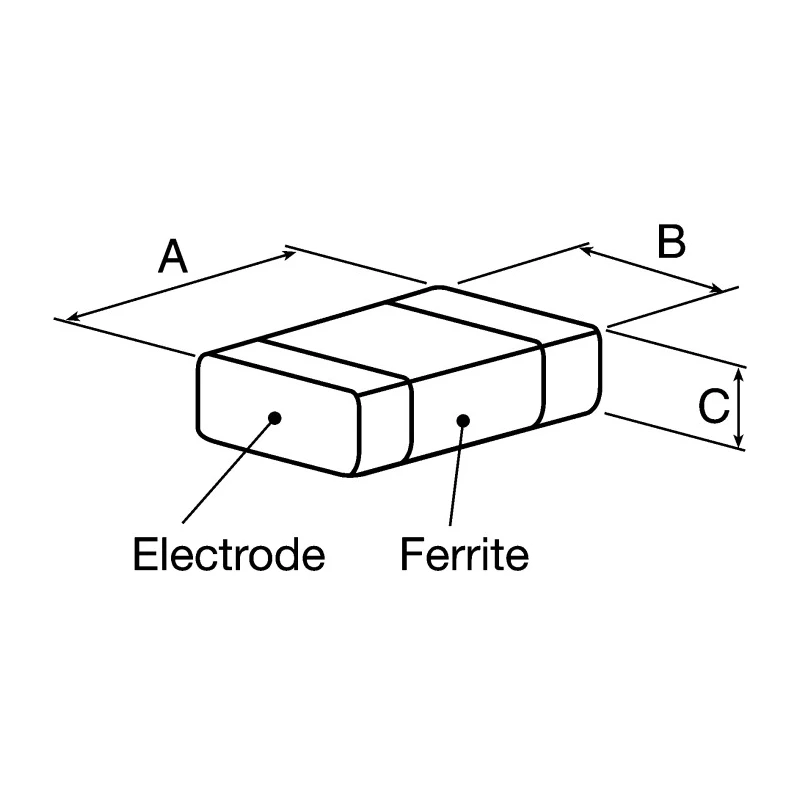

The 0805 package dimensions are 2.0 mm length, 1.25 mm depth, and 0.9 mm height, enabling maximum packing density on PCBs and excellent soldering properties. It is supplied in tape and reel packaging suitable for volume manufacturing and automated assembly.

Compact 0805 surface mount package for high-density PCB assembly. Ferrite core providing efficient magnetic performance. Inductance of 1μH with ±10% tolerance ensures accuracy. Maximum DC current of 50mA with low DC resistance of 400mΩ.

Wide operating temperature range from -55°C to +125°C. Maximum self-resonant frequency up to 85MHz suitable for high-frequency circuits. Multilayer construction enhances reliability and performance. Compliance with RoHS, IEC 61249-2-21, JEDEC JS709B, and REACH standards.

Ideal for telecommunications, computers, filter and oscillator applications. Packaged in tape and reel for efficient production processes.

This product is manufactured in Taiwan, Province Of China. It is designed to meet industrial and commercial electronic component standards, providing reliable performance in complex electronic systems.
