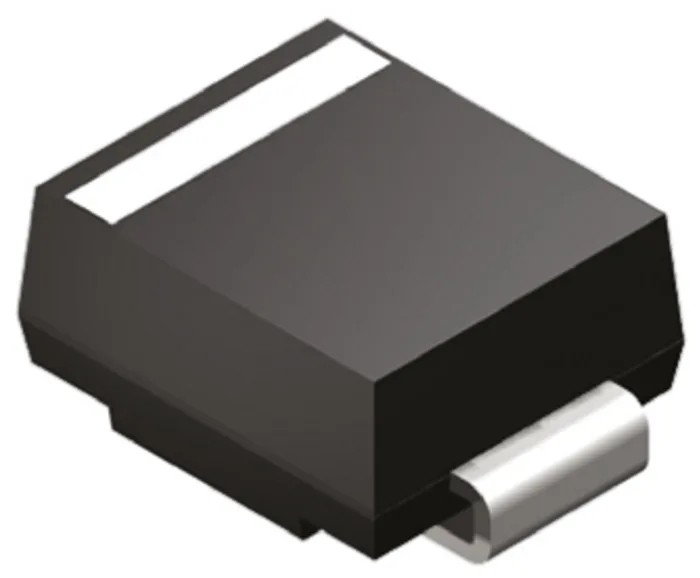

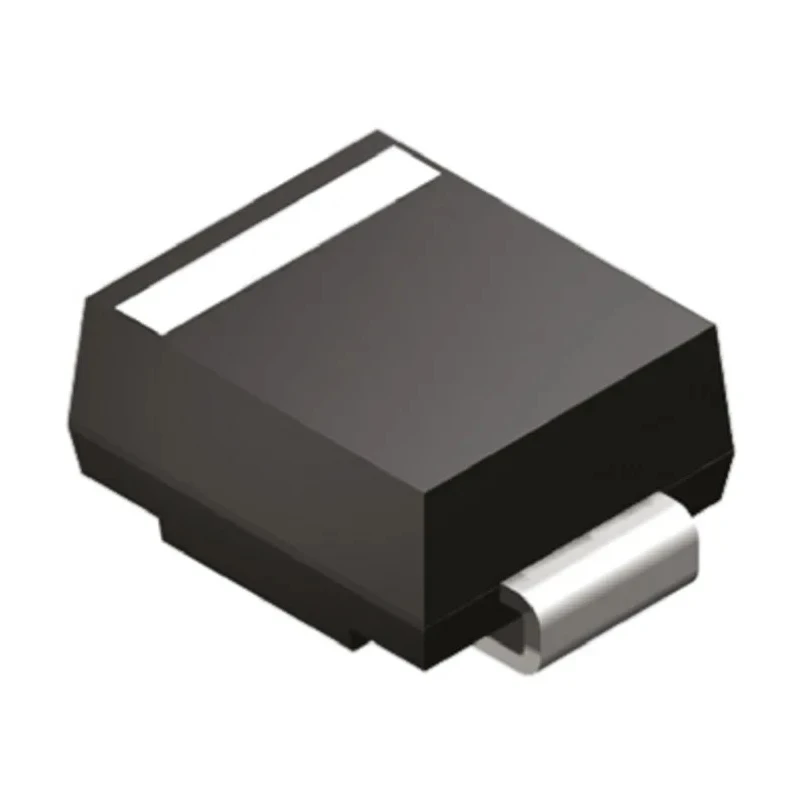

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 600 W, Surface Mount, 2-Pin DO-214 SMBJ5V0A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.15mm |
| Length | 4.75mm |
| Model | SMBJ5V0A |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 65.2A |
| Maximum Reverse Leakage Current | 800μA |
Key Features
- This diode has a single element configuration and uni-directional direction type.
- It operates over a temperature range from -55°C to 150°C.
- The package type is DO-214 with a surface mount style and 2-pin configuration.
- It provides a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V.
- The maximum peak pulse current is 65.2 A with a clamping voltage of 9.2 V.
- The diode features low incremental surge resistance and glass-passivated junction for reliability.
- Its compact dimensions are 4.75 mm length, 3.95 mm width, and 2.15 mm height.
- The maximum reverse leakage current is 800 μA ensuring efficiency in suppression.
Product Description
Taiwan Semiconductor SMBJ5V0A 1-Element Uni-Directional TVS Diode offers a high peak pulse power capability of 600 W, providing reliable protection for electronic circuits from transient voltage spikes. Designed as a surface mount device in the DO-214 package with 2 pins, it features a single diode element with uni-directional suppression.
Its minimum breakdown voltage is 6.4 V, with a maximum reverse stand-off voltage of 5 V that safeguards circuits against overvoltage conditions. The diode clamps voltage at 9.2 V during transient events and supports a peak pulse current of 65.2 A, ensuring fast response and protection.
Operating across a temperature range from -55°C to 150°C, this diode is suitable for robust environments including industrial, commercial electronics, power supplies, and telecommunications equipment. The glass-passivated junction enhances durability, and low incremental surge resistance improves performance during surge events.
Physical dimensions of 4.75 mm length, 3.95 mm width, and 2.15 mm height make it compact for PCB layouts requiring space efficiency. The maximum reverse leakage current of 800 μA contributes to efficient energy handling and reduced power loss.
This diode is a surface mount, uni-directional protective component in the SMBJ series. It offers 600 W peak pulse power dissipation for effective transient voltage suppression. Reliable performance is ensured over a wide temperature range from -55°C to 150°C.
Compact DO-214 package and 2-pin configuration enable easy PCB integration. Glass-passivated junction provides enhanced protection and longevity. Low leakage current of 800 μA minimizes energy loss during operation. Ideal for use in industrial electronics, telecommunications, and power supplies.
Provides excellent clamping voltage of 9.2 V for circuit protection.
This Taiwan Semiconductor TVS diode SMBJ5V0A is an excellent choice for transient voltage suppression applications requiring durable, high-performance semiconductor protection. Explore more products in the TVS Diode category at EnvMart for additional circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Taiwan Semiconductor SMBJ5V0A has a peak pulse power capability of 600 W, providing effective protection against transient voltage spikes.
The minimum breakdown voltage of this diode is 6.4 V, which helps in safeguarding circuits from overvoltage conditions.
The maximum reverse stand-off voltage for the SMBJ5V0A is 5 V, ensuring that it can handle overvoltage without failure.
During transient events, the clamping voltage of this diode is 9.2 V, which helps to protect connected circuits from voltage spikes.
The SMBJ5V0A can handle a maximum peak pulse current of 65.2 A, allowing it to effectively manage transient surges.
This model operates over a temperature range from -55°C to 150°C, making it suitable for various environments.
The dimensions of the SMBJ5V0A are 4.75 mm in length, 3.95 mm in width, and 2.15 mm in height, allowing for compact PCB layouts.
This diode uses a surface mount style and comes in a DO-214 package with a 2-pin configuration for easy integration into circuits.
The maximum reverse leakage current for the SMBJ5V0A is 800 μA, which contributes to its efficiency in energy handling.
The SMBJ5V0A is a uni-directional TVS diode, designed for single element suppression in one direction.
This model complies with FBI standards, ensuring it meets specific performance criteria for electronic components.
This diode features a single element configuration, making it suitable for specific transient voltage suppression applications.
