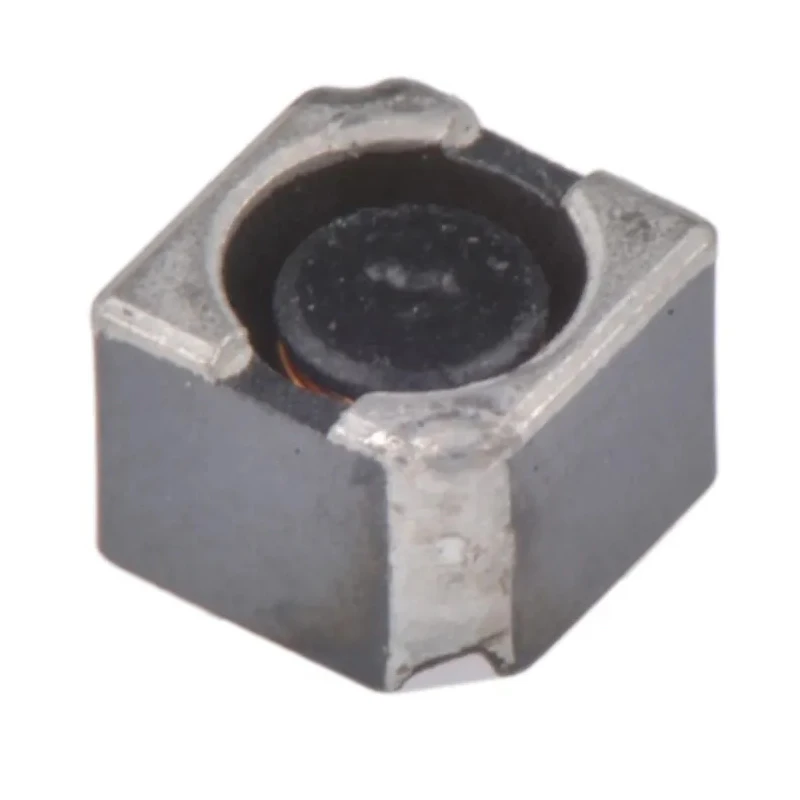

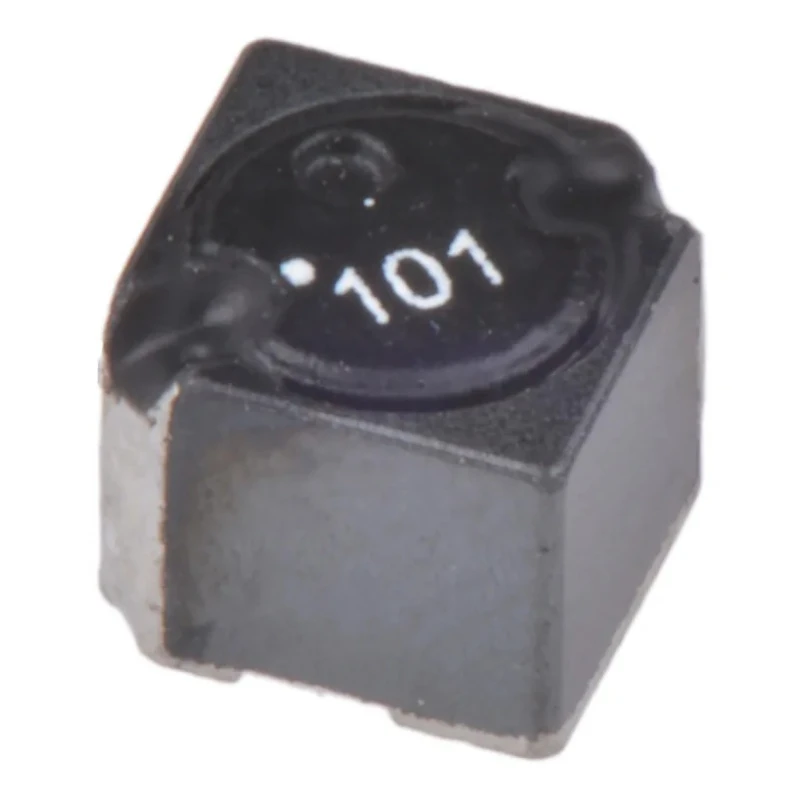

Wurth Elektronik WE-SPC 4838 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20% 520 mA 74408943101

Wurth Elektronik 74408943101 is a high-quality shielded wirewound surface mount inductor featuring a ferrite core, designed to provide an inductance of 100 μH with a tolerance of ±20%. This component supports a maximum DC current of 520 mA and is designed in a compact 4838 package measuring 4.8 mm in length, 3.8 mm in height, and 4.8 mm in depth.

The inductor is designed for surface mount applications and features a wirewound construction optimized for stability and durability. Its ferrite core provides excellent magnetic shielding, reducing leakage fields and ensuring low self-losses, which enhances performance in portable power devices, DC/DC converters, PCMCIA cards, smartphones, PDAs, and digital cameras.

Operating within a temperature range of -40°C to 125°C, the 74408943101 model maintains consistent characteristics even in demanding environmental conditions. The maximum DC resistance is 850 mΩ, and the maximum self-resonant frequency is 7.8 MHz, making it suitable for a wide range of industrial and electronic applications.

This inductor complies with prominent industry standards including RoHS, REACH, and JEDEC JS709B, assuring safety and environmental compatibility. The product is molded and supplied in a tape & reel package for efficient automated assembly.

Wurth Elektronik’s WE-SPC series inductors are known for their superior magnetic shielding, minimizing electromagnetic interference effectively. This makes them ideal for use in sensitive electronic circuits requiring reliable inductance and low interference.

This inductor is shielded to minimize magnetic interference. Features a wirewound construction on a ferrite core for stable performance. Designed with surface mount termination style for easy PCB integration. Supports a maximum DC current of 520 mA with maximum DC resistance of 850 mΩ.

Operates reliably between -40°C and 125°C temperature range. Compact 4838 package with dimensions of 4.8 mm length, 3.8 mm height, and 4.8 mm depth. Maximum self resonant frequency is 7.8 MHz, suitable for various electronic circuits.

Offers compliance to RoHS, REACH, and JEDEC JS709B standards.

Explore the Electronics Components category at EnvMart for Wurth Elektronik’s comprehensive range of Surface Mount Inductors and other passive components suitable for industrial, commercial, and laboratory applications.
