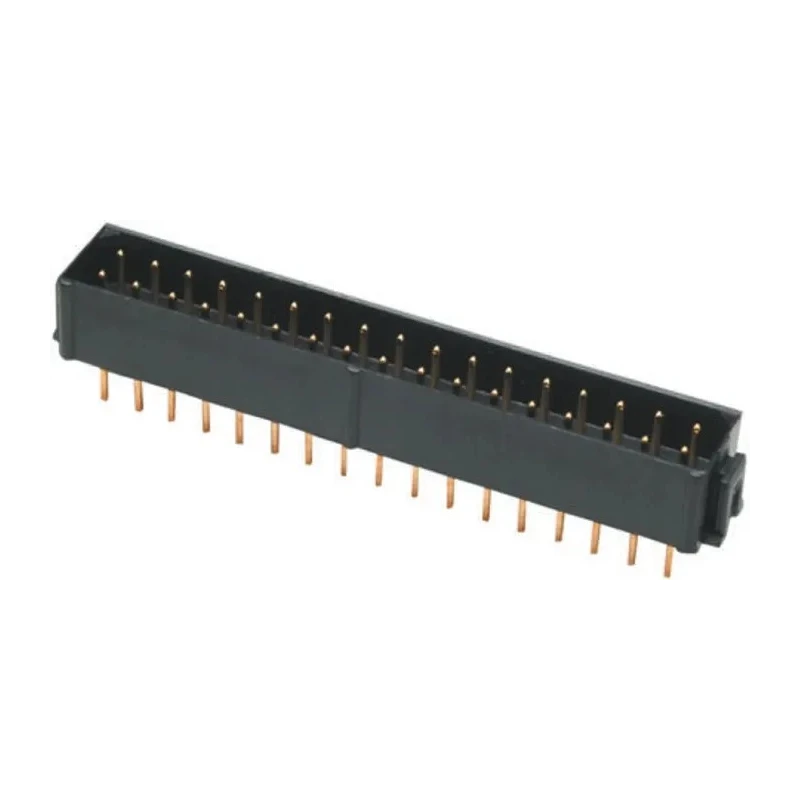

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header, 26 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-8542642
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M80-8542642 |
| Mount Type | Through Hole |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | Datamate L-Tek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
Key Features
- Designed for reliable board-to-board and wire-to-board connections.
- Features 26 gold-plated phosphor bronze male contacts for superior conductivity.
- Constructed with durable polyphenylene sulphide housing suitable for harsh environments.
- Supports current up to 3 amperes and voltage up to 120 volts.
- Shrouded design enhances connector protection and polarization.
- Operating temperature range from -55°C to 125°C for wide environmental compatibility.
- 3 mm tail pin length ensures stable solder termination.
- Through-hole mount type allows secure PCB insertion.
Product Description
HARWIN M80-8542642 Datamate L-Tek Series Straight Through Hole PCB Header is a highly reliable connector solution designed for industrial and commercial electronic applications requiring durable connections. Featuring 26 male contacts with a 2 mm pitch arranged in 2 rows, this shrouded PCB header offers secure board-to-board and wire-to-board interfacing.
Manufactured using polyphenylene sulphide housing material, the header withstands harsh environmental conditions while providing excellent electrical performance. The gold-plated phosphor bronze contacts ensure superior conductivity and resistance to wear over numerous mating cycles, making it ideal for high reliability applications subjected to vibration, shock, and acceleration.
This connector supports a maximum current of 3 amperes and operates safely up to 120 volts. Its operating temperature range from -55°C to 125°C allows use in demanding thermal environments. The header terminates via a 3 mm tail pin length designed for through-hole solder mounting, ensuring mechanical stability in PCB assemblies.
The shrouded and polarized design prevents incorrect mating and enhances connector protection in complex systems. The M80-8542642 supports compliance with recognized standards such as BS9525-F0033, MIL C 55302 and CEC 75101-008, suitable for commercial off-the-shelf (COTS) usage.
This product is engineered to meet rigorous industrial, manufacturing, laboratory, and automotive electronics needs where connector integrity and long lifecycle are critical. Designed for reliable board-to-board and wire-to-board connections.
Features 26 gold-plated phosphor bronze male contacts for superior conductivity. Constructed with durable polyphenylene sulphide housing suitable for harsh environments. Supports current up to 3 amperes and voltage up to 120 volts.
Shrouded design enhances connector protection and polarization. Operating temperature range from -55°C to 125°C for wide environmental compatibility. 3 mm tail pin length ensures stable solder termination. Through-hole mount type allows secure PCB insertion.
Mates with industry standard equivalents, suited for COTS applications. Complies with industry standards BS9525-F0033, MIL C 55302, and CEC 75101-008. Explore more HARWIN products and PCB Header solutions at EnvMart for your electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3 amperes and operates safely up to 120 volts.
It operates within a temperature range from -55°C to 125°C, making it suitable for demanding thermal environments.
The connector features 26 male contacts arranged in 2 rows with a 2 mm pitch.
The housing is constructed from polyphenylene sulphide, which is suitable for harsh environments.
It utilizes a solder termination type with a 3 mm tail pin length for stable solder mounting.
This model is shrouded, which enhances connector protection and polarization to prevent incorrect mating.
It supports both board-to-board and wire-to-board connections, making it versatile for various applications.
The pitch is 2 mm, and it has 2 rows of contacts.
The contacts are made of gold-plated phosphor bronze, ensuring superior conductivity and resistance to wear.
It complies with recognized standards such as BS9525-F0033, MIL C 55302, and CEC 75101-008.
The country of origin for this product is the United Kingdom.
This model uses a through-hole mount type, allowing for secure PCB insertion.
