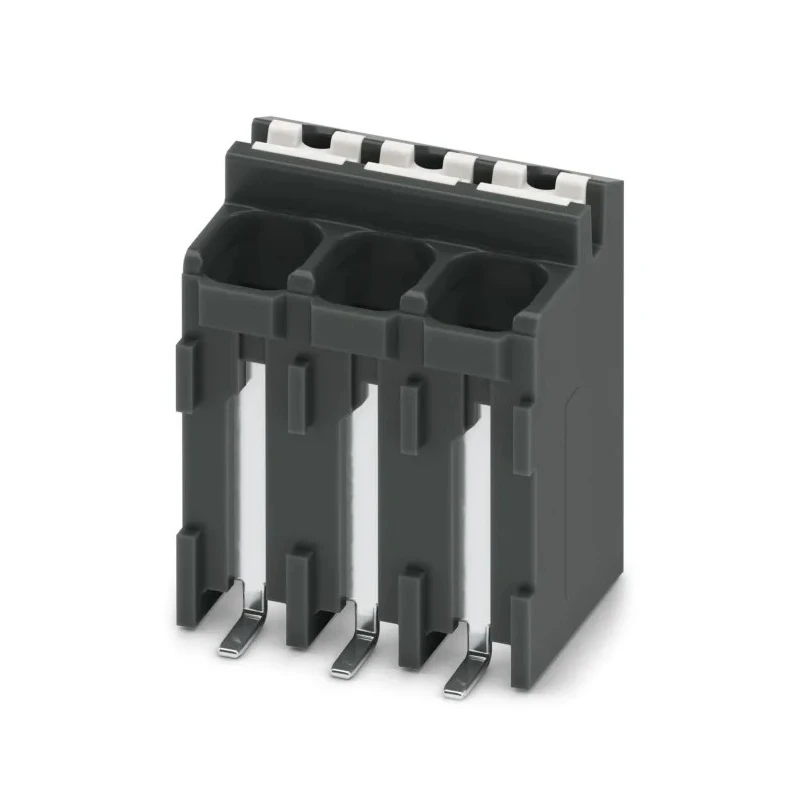

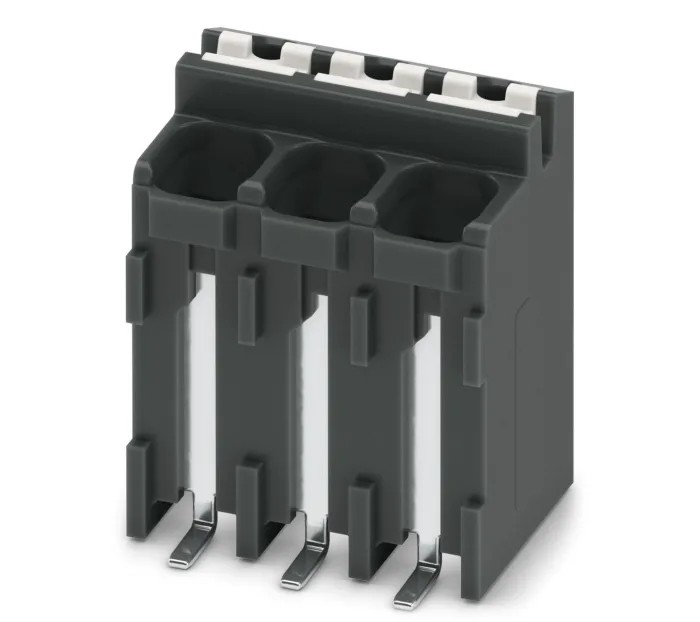

Phoenix Contact PCB Terminal Block, 3-Contact, 3.5 mm Pitch, Surface Mount, 320 V, 13.5 A, Liquid Crystal Polymer 1824093
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 11mm |
| Model | 1824093 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 3-V-3.5 R32 |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Handles currents up to 13.5 A and voltages up to 320 V safely.
- Features a liquid crystal polymer housing for durability.
- Supports wire sizes from 0.2 mm² to 1.5 mm² and AWG24 to AWG16.
- Employs push-in spring connection technology for tool-free wiring.
- Comes with tape-on-reel packaging suitable for automated assembly.
- Available in horizontal and vertical versions with anchoring or soldering pins.
- Black color and straight orientation enhance installation versatility.
Product Description
Phoenix Contact 1824093 PCB Terminal Block is a 3-contact, single-row terminal block with a 3.5 mm pitch designed for surface mounting in electronic circuits. It supports currents up to 13.5 A and voltages up to 320 V, making it suitable for a variety of industrial and commercial electronics applications.
Constructed with a liquid crystal polymer housing, this terminal block offers excellent resistance to heat and mechanical stress. The push-in spring connection method combines spring cage and direct push-in technology for fast and secure wiring without the need for additional tools.
The terminal block accommodates wire sizes from 0.2 mm² up to 1.5 mm² and AWG24 to AWG16, ensuring compatibility with a wide range of conductor sizes. Its straight orientation and black color provide a standard, clean installation look.
Packaging is delivered on tape reels compliant with IEC 60283-3, facilitating efficient integration into automated reflow assembly lines. Horizontal versions include two anchoring pins for PCB alignment, while vertical versions feature twin soldering pins for a more robust attachment.
Handles currents up to 13.5 A and voltages up to 320 V safely. Features a liquid crystal polymer housing for durability. Supports wire sizes from 0.2 mm² to 1.5 mm² and AWG24 to AWG16. Employs push-in spring connection technology for tool-free wiring.
Comes with tape-on-reel packaging suitable for automated assembly. Available in horizontal and vertical versions with anchoring or soldering pins. Black color and straight orientation enhance installation versatility.
This PCB terminal block is ideal for use in industrial automation, manufacturing equipment, electronic controls, and communications hardware. Phoenix Contact's SPT-SMD series ensures reliable connectivity and simplifies PCB design with its compact size and excellent electrical characteristics.
Explore the full range of PCB Terminal Blocks and electronic components in EnvMart's Electronics & Electricals category to find compatible accessories and alternatives from top industrial brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block can handle currents up to 13.5 A and voltages up to 320 V.
It supports wire sizes from 0.2 mm² to 1.5 mm² and AWG24 to AWG16.
The pitch of this terminal block is 3.5 mm.
The housing is made of liquid crystal polymer, providing excellent resistance to heat and mechanical stress.
It employs a push-in spring connection method, allowing for tool-free wiring.
The terminal block has a length of 11 mm, a depth of 13.6 mm, and a width of 7.7 mm.
Yes, it is available in horizontal and vertical versions, with anchoring or soldering pins.
This model is designed for surface mounting.
The terminal block is black in color, which enhances its installation versatility.
It belongs to the SPT-SMD series.
The country of origin for this terminal block is Germany.
It is suitable for use in industrial automation, manufacturing equipment, electronic controls, and communications hardware.
