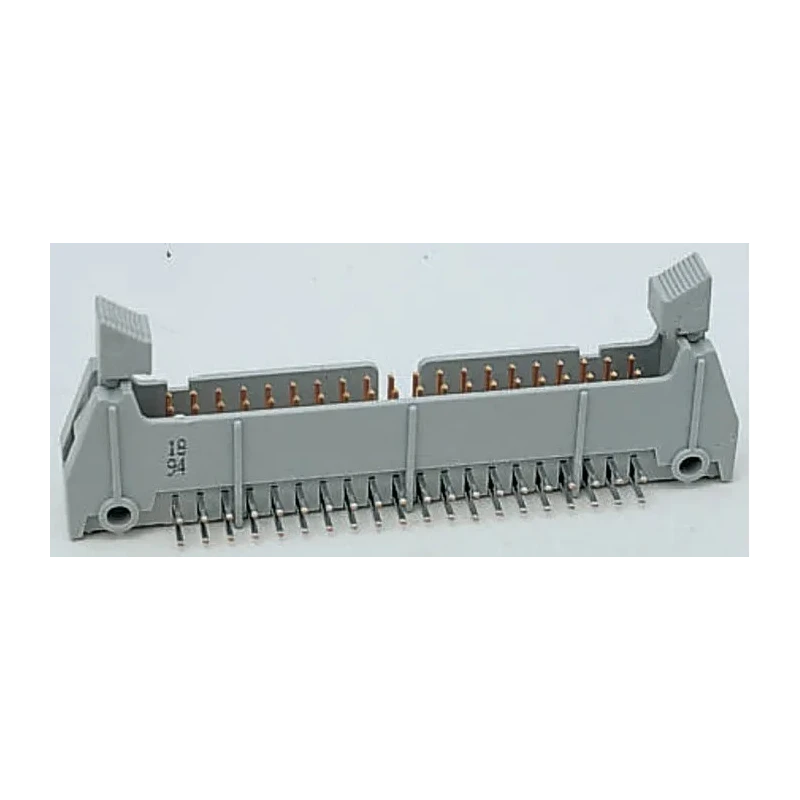

3M 3000 Series Right Angle Through Hole PCB Header, 34 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N3431-5202RB

3M N3431-5202RB is a 3000 Series Right Angle Through Hole PCB Header designed for electronic assemblies requiring reliable board-to-board or wire-to-board connections. Featuring 34 contacts arranged in two rows with a 2.54 mm pitch, this PCB header provides secure and precise mating in compact designs.

The housing material is glass filled polyester, delivering excellent mechanical strength and resistance to environmental factors. The contacts are constructed from copper alloy with gold plating for optimal electrical performance, ensuring corrosion resistance and long-lasting conductivity.

With a rated voltage of 25 V and maximum current of 2.0 A, the connector is suitable for a wide range of low-voltage electronic applications in industrial, laboratory, and commercial electronics. The through-hole mount type facilitates strong soldered connections on printed circuit boards.

This shrouded header offers added protection against misalignment and accidental contact, improving safety and durability during device assembly and operation. It is engineered to operate reliably within a temperature range from -55°C to 105°C, making it fit for harsh environmental conditions.

Additional features include a tail pin length of 0.01 inches and mating pin length of 6.2 mm, optimized for secure engagement with compatible female connectors. The product is manufactured in the United States and conforms to industry standards despite no specific approvals listed.

This PCB header supports board-to-board and wire-to-board connections in electronic component assemblies. Durable glass filled polyester housing provides mechanical stability and thermal resistance. Copper alloy contacts plated with gold ensure excellent conductivity and corrosion resistance.

Designed for through-hole mounting with male contact gender and solder termination. Operates safely between -55°C and 105°C in demanding industrial environments. Two rows with 34 contacts spaced at 2.54 mm pitch guarantee precise connection.

Shrouded design enhances mechanical robustness and contact protection. Manufactured in the United States for assured quality and reliability.

This 3M PCB Header is ideal for use in electronics manufacturing, industrial equipment, instrumentation, and electrical assemblies requiring dependable interconnect solutions. Explore more connectors and electronic components in EnvMart’s comprehensive catalog.
